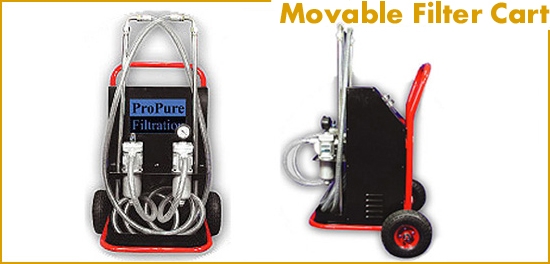

Movable Filter Carts

    Product Name : Movable Filter Carts

    Moveable filter cart is designed for on-site (off-line) preventative maintenance of fluid systems.  An internal gear pump draws fluid through a primary clean-up filter (pre-filtration) and then a high-quality polishing filter (effective-filtration) to remove contamination to achieve ISO 14/12/9 (NAS 3 class) oil cleanliness level.  For flushing systems, an internal heater is available.

    Features
    Filtering new oil fluid before pouring into system for service
    Off-line filtering for conditioning system fluid
    Oil flushing of hydraulic and lube systems
    Removing contamination from system reservoir
    Flow up to 40 LPM



    Item Specifications
    Fluid Compatibility Mineral oil, petroleum base oil, synthetic oil and water emulsion
    Operating Temperature -40℃ ~ +93℃
    Operating Pressure Up to 70 psi
    Operating Flow Rate 10gpm (40 LMP)
    Recommended Fluid Viscosity 100VAC motor is at 100 centistokes; 200VAC motor is at 680 centistokes.
    Electrical Power 100/220VAC single phase, 60Hz, or 220/380VAC three phase, 60Hz
    Power Cord 5 meters length
    Transfer Pump Direct type gear pump
    Electrical Motor Over-load protection with reset button. Phase confirm & auto-corrected motor rotation.
    Integral Relief Valve Set at 70 psi for motor protection
    Hose & Wand PVC hose (1"x3m) connect with stainless steel pipe (1m) by JIC 37○ Flare Swivel
    Inlet Filter Aluminum hosing with 150um cleanable Nylon element. Vacuum gage is mounted
    Outlet Filter Aluminum hosing with absolute-rated element or water removal element. Different pressure indicator is mounted for shut down and display lifeless element.

    * Special flow or power requirement is available.

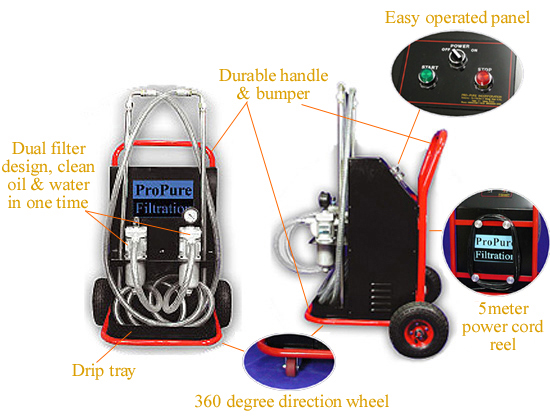

    ⊙ Featured design
