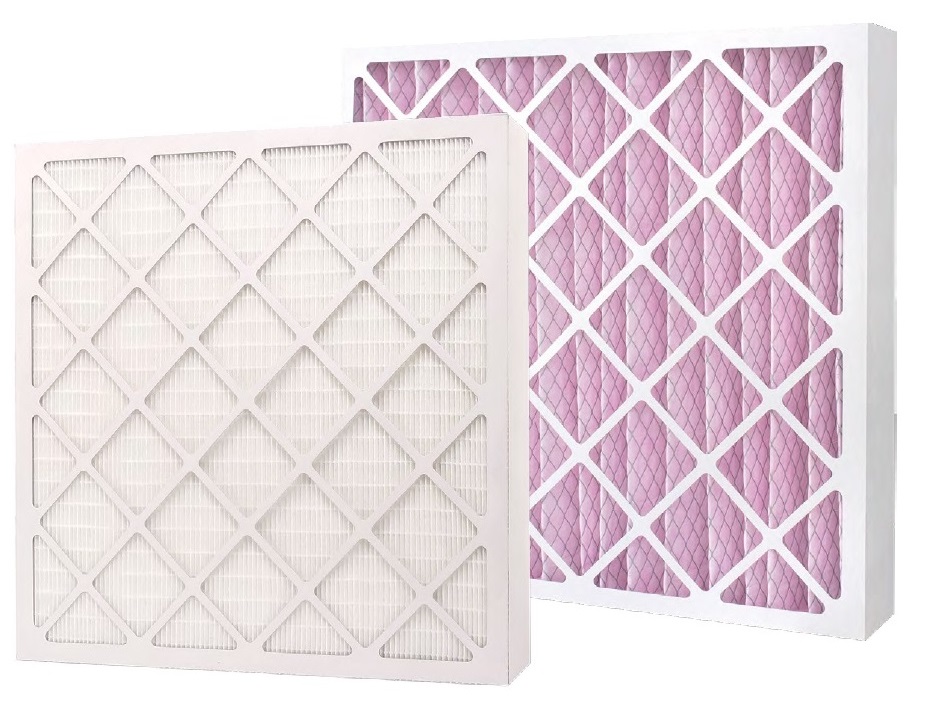

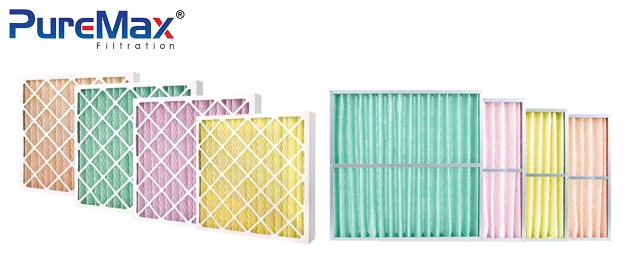

Medium Filter

​The filters are made of cardboard frame with pleated media to capture the contaminations in the air. The medium efficiency filters are with lower resistance to reduce the maintenance cost.

 Specifications

Frame: High wet-strength carboard

Media: Synthetic fiber & glass fiber

Fire retardant grade: UL900

Max. Temperature: ≦80°C

Max. Relative Humidity: ≦100% RH

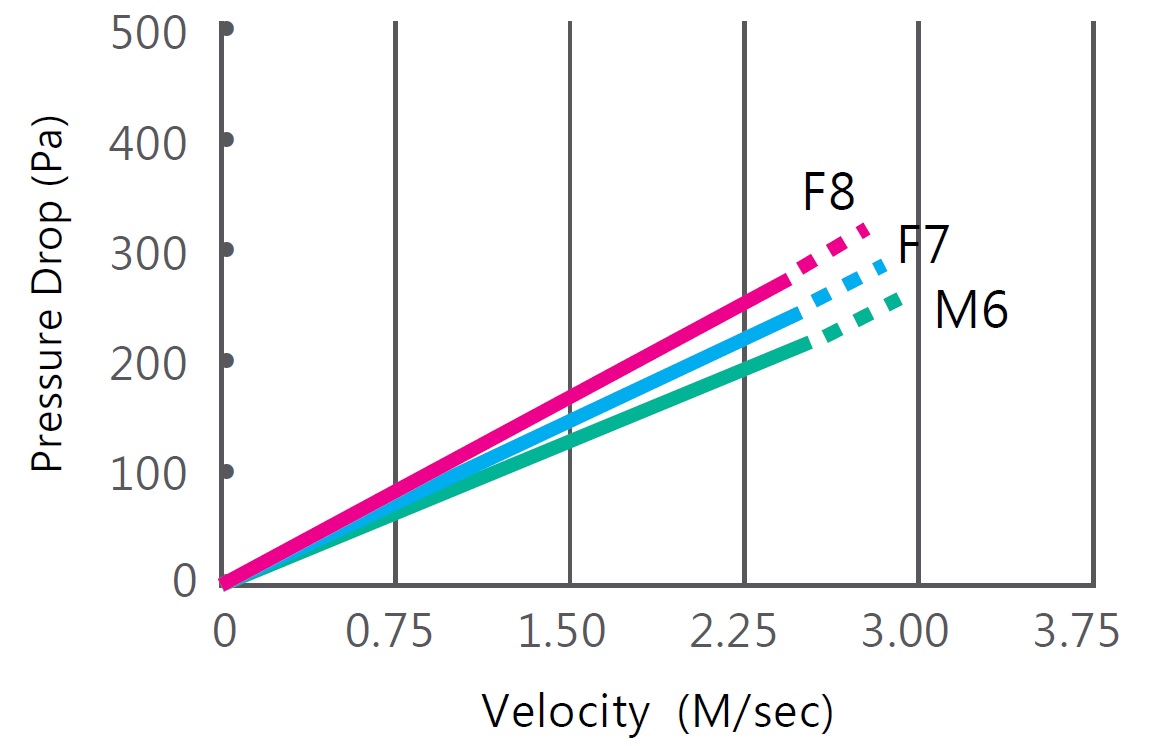

Rec. Final Pressure Drop: ≦350Pa

Efficiency:  M6 (EN 779), 60-80% / MERV 11-12 (ASHRAE 52.2)

                   F7 (EN 779), 80-90% / MERV 13 (ASHRAE 52.2)

                   F8 (EN 779), 90-95% / MERV 14 (ASHRAE 52.2)

 Advantages

√ Cost saving

√ Minimize health hazards

√ Reduce maintenance cost

√ Increase energy efficiency

√ Lower the air resistance

 Applications

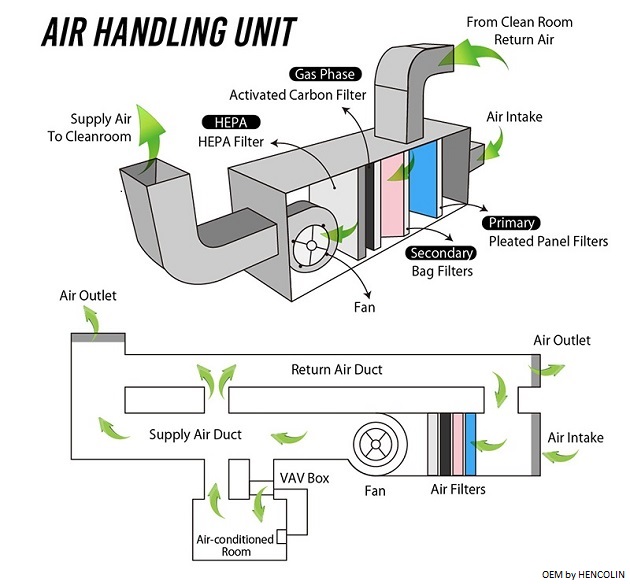

Available for being applied in industrial, commercial AHU, cleanroom MAU system, variable air volume (VAV), ventilation systems, etc.
