UV adhesive

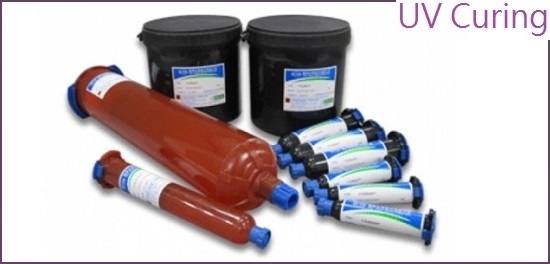

    Product Name : UV adhesive

    ⊙ UV curing principle

    Added initiating agent in the resin, through the absorption of ultraviolet light (specific wavelength 265 & 365nm), the resin was cured instantly. Thus achieving the purposes of sealing, coating, painting, filling... for your processes.



    ⊙ UV curing parameters

    1. UV lamp output, design of the reflector and the distance of irradiated object will effect the indensity of illumination.

    2. UV irradiation amount = ultraviolet irradiation illuminance x time.

    3. Illumination energy is inversely proportional to the using time of UV lamp.



    ⊙ Selections - electronic / photoelectric

    Item Application Viscosity(CPS) Hardness Tensile strength Elongation Features
    1533A glass crafts assembly 65±5 D75 1400 150 low viscosity, suitable for wide surface bonding
    1530B glass vs metal 300±50 D80 3300 200 fast curing
    1531C glass vs metal 1250±100 D65 5000 50 fast curing, moisture resistance
    1531D glass vs metal 6000±300 D85 5500 20 fast curing, high hardness
    1539D glass crafts bonding 1150±150 D53 1400 110 water resistance
    1539E glass crafts bonding 4000±200 D53 1300 180 water resistance
    1570A glass thinning 1000±150 D46 1900 18 HF resistance
    1581A carbon fiber sealing 5000±400 D80 4200 7 high hardness, can be polished
    1581AH carbon fiber sealing 18000±2000 D80 4200 7 high viscosity, ditto
    1583A glass+hard PVC、PC mainboard & wire assembly 2000±200 D46 1370 300 toughness
    1583G CPU fixture 24000±1500 D55 1500 280 thixotropy, toughness, reliable
    1585A PC、soft PVC、PMMA、PS 2800±300 D40 970 560 good strength for PC、PVC
    1585E PC、soft PVC、glass PMMA、glass+plastic 2200±300 A70 450 660 softer & clearer than 1585A, high elongation
    1585F frame sealing 30000 A40 2000 350 soft, elastic, replace rubber gasket
    1586T for most plastics 17000±2000 D50 1100 260 good tack, fast curing, thixotropy
    1586TM for most plastics 10000±2000 D50 1100 260 good tack, fast curing, thixotropy
    1586TN FR-4 board components assembly 2500±300 D58 2100 75 good tack, fast curing
    1586TW CMOS Barrel lock(PBA+ABS) 11000±2000 D68 2200 40 white, thixotropy, no irritant odor
    1589P PC+PC，PC+stainless steel 65000±15000 D75 2400 12 milky, high viscosity, thixotropy, low shrinkage & expantion

    *Tensil strength: PSI

    *Package: 20kg/barrel，1kg/can，30ml/syringe.



    ⊙ UV curing methods

    proimages/001/UV光源應用方式.jpg



    ⊙ UV curing samples

    proimages/uv_curing_sample.jpg
