Brief
Japan's HOYA has won high praise from domestic and foreign customers for its world-leading optical technology, from LEDs to light bulbs, its rich product line and its precise and stable quality. HOYA light source equipment can be widely used in high-precision process fields such as camera module packaging, electronic parts curing, semiconductor exposure process, liquid crystal bonding and medical equipment.
Feature

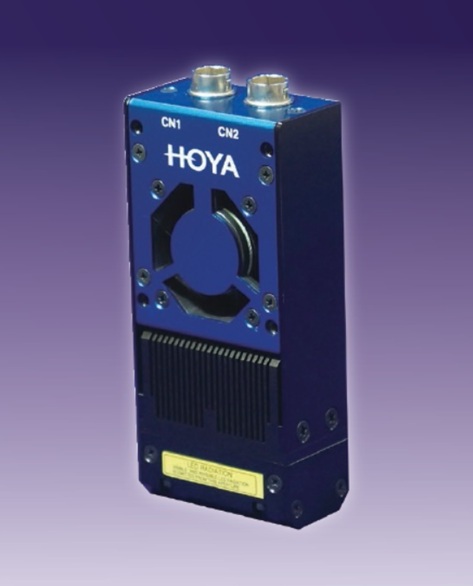

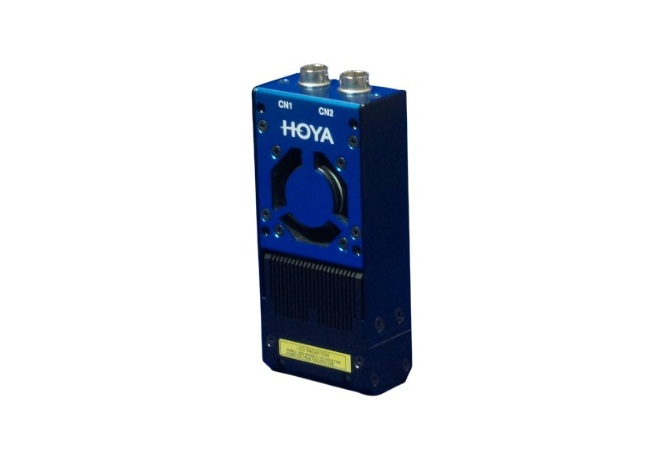

* Lightweight and compact linear UV-LED.
* Use compact controller "H-1VCII" for control.
* High strength, evenly distributed properties.
* Able to maintain high strength even at long distances.
．Specification
| Item |
UV-LED line type |
| Dimension (WxDxH) | H-1ML16-V※-1SL1 : 54.4×28×118mm H-2ML16-V※-1S5L1 : 108.8×28×118mm |
| Weight | H-1ML16-V※-1SL1 ： 0.25kg H-2ML16-V※-1S5L1 : 0.4kg |
| Initial peak intensity (WD:20mm) | V1（365nm）： 2,000 / V2（385nm）： 3,000mW/cm2 V4（395nm）： 3,000 / V3（405nm）： 2,500mW/cm2 |
| Cooling | forced air cooling |
| Wave length | 365（V1）/ 385（V2）/ 395（V4）/ 405（V3） |
| Effective irradiation width (WD:20mm) | H-1ML16-V※-1SL1 ： 35mm H-2ML16-V※-1S5L1 ： 75×3mm |
＊The "※" in the model number indicates the wavelength number (1 to 4).
．Intensity distribution graph
．Layout
* The above specifications, shapes and strength distribution data are subject to change without prior notice.
．Examples - Camera modules, LCD screens, 3C products precision bonding (can be used with glue dispenser)
* Contact us for more information.
