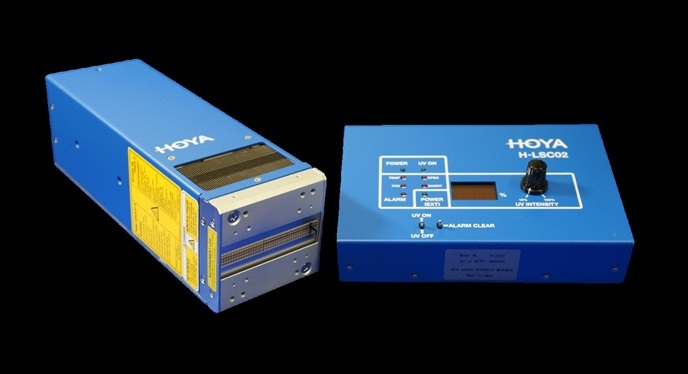

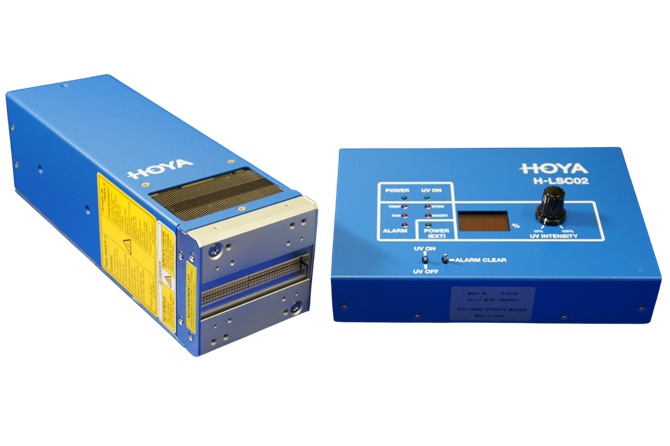

Special UV-LED Line Type

Ultra high intensity - LS Series
Ultra high volume - H-4MLH200 Series

Model
- LS series
- H-4MLH200 series

This combination does not exist.

Brief

Japan's HOYA has won high praise from domestic and foreign customers for its world-leading optical technology, from LEDs to light bulbs, its rich product line and its precise and stable quality. HOYA light source equipment can be widely used in high-precision process fields such as camera module packaging, electronic parts curing, semiconductor exposure process, liquid crystal bonding and medical equipment.

Feature

LS series	H-4MLH200 series
Air-cooled, the industry's highest level 20W/cm² Thin, light, compact, with built-in drivers. Wide illumination range (80mm~640mm, 8 types in total). Stable lighting performance.	Highly integrated light output equivalent to a 4kW long arc lamp. Easy to install on existing conveying system, no cooler required. Optimal irradiation is achieved not only for conveyor systems but also for batch processing.

．LS full series

Type	LS80	LS160	LS240	LS320	LS400	LS480	LS560	LS640
Irradiation range (mm)	80	160	240	320	400	480	560	640

．LS specification

Item	UV-LED line source LS series
Dimension (WxDxH)	323×80×250mm（LS320-V※-CN1※）＊ -CN1 Without filter / -CF1 With filter / -MF1 Optical seal
Weight	4.1kg（LS320-V※-CN1）
Initial peak intensity (WD:0mm)	V1（365nm）： 8,000 / V2（385nm）： 20,000mW/cm² V4（395nm）： 20,000 / V3(405nm）： 16,000mW/cm²
Cooling	forced air cooling
Dimming range	10~100%
Control	I/O or RS-485
Input voltage	DC48V

＊The "※" in the model number indicates the wavelength number (1 to 4).

．Intensity distribution graph

．H-4MLH200 specification

Item	Ultra high volume H-4MLH200
Dimension (WxDxH)	54.4×28×118mm
Weight	15kg
Initial peak intensity (WD:10mm)	V1：over 3,300 V2：over 4,600 V3：over 4,100 V4：over 4,100mW/cm²
Cooling	forced air cooling
Wave length	365（V1）/ 385（V2）/ 395（V4）/ 405（V3）nm
Dimming range	10~100%
