Brief
Japan HOYA has won high praise from domestic and foreign customers for its world-leading optical technology, from LEDs to light bulbs, its rich product line and its precise and stable quality. HOYA light source equipment can be widely used in high-precision process fields such as camera module packaging, electronic parts curing, semiconductor exposure process, liquid crystal bonding and medical equipment.
Feature
*The optical system adopts the new generation of chips, and the UV intensity is 1.3 times higher than old version.
* Increased cooling capabilities make it thinner, lighter and quieter.
* Built-in drivers allow use without a controller.
* Multiple heads can be connected together to meet various irradiation width requirements.
* Maintains high intensity even at long distances.
．Specification
| Item |

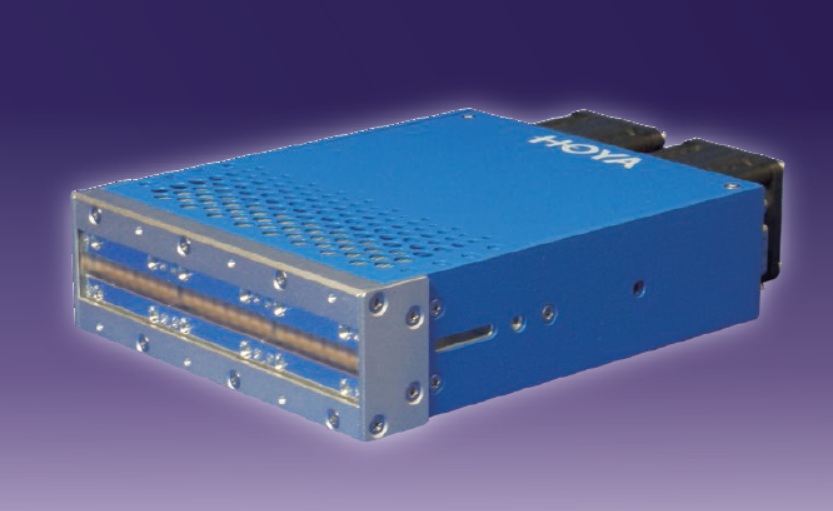

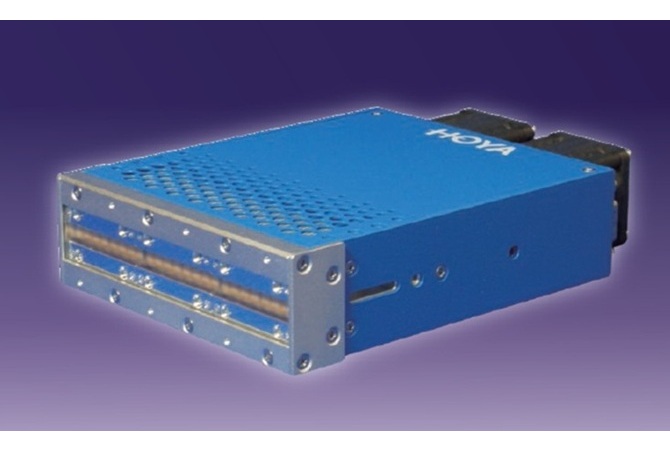

UV-LED line source |
| Dimension (WxDxH) | EX120-V※-CN1A (univeral type)：120×40×178 mm EX120-V※-CN2A (concentrated type) : 120×40×192 mm EX160-V※-CN1A (univeral type)：160×40×178 mm EX160-V※-CN2A (concentrated type)：160×40×192 mm |
| Weight | EX120-V※-CN1A ：approx. 0.8 kg EX120-V※-CN2A ：approx. 0.9 kg EX160-V※-CN1A ：approx. 1.1 kg EX160-V※-CN2A ：approx. 1.3 kg |
| Initial peak intensity | V1(365nｍ): 3,000 / V2(385nm): 4,000（-CN1A）mW/cm2 V4(395nｍ): 4,000 / V3(405nm): 3,300（-CN1A）mW/cm2 |
| Cooling type | Forced air cooling |
| Wave length | 365（V1）/ 385（V2）/ 395（V4）/ 405（V3） |
| Dimming range | 10 ~ 100% |
＊The strength value of the previous model varies depending on WD, etc. Please refer to Irradiation Distribution for details.
＊The "※" in the model number indicates the wavelength number (1 to 4).
．Intensity distribution graph
* The above graphs are all characteristics of 365nm. Please contact us for other wavelengths.
．EX120-V※-CN1A layout
．Examples - camera modules, LCD screens, 3C products precision bonding (can be used with glue dispenser)
* Contact us for more information.
