Brief

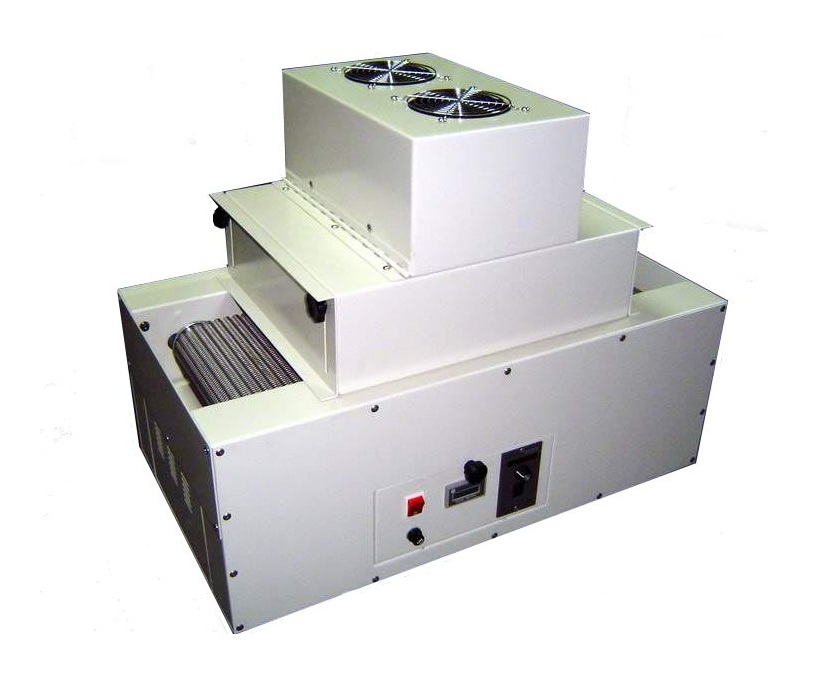

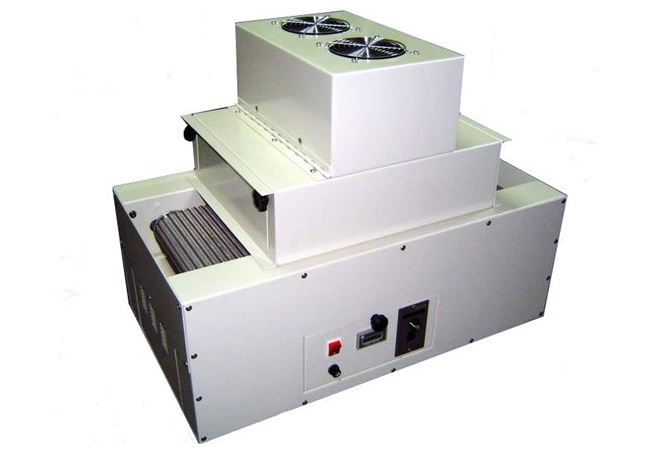

The desktop UV machine with integrated conveyor belt design has the characteristics of small size and easy to move. In addition to single-machine continuous operation, it can also be used in various production lines to improve production efficiency. The stainless steel (SUS) conveyor belt is durable and not prone to static electricity, making it more suitable for drying or hardening of various small and precision parts.
Specification
Conveyor type UV machine, the main wavelength of the light source is concentrated in the UV-A (peak 365nm) to the visible light range, suitable for the hardening and drying of UV adhesives, UV inks, UV coatings, and UV surface coatings (hard coat). There is also a clean room-specific model with a dedicated exhaust duct, which is a conveyor-type UV machine designed and developed to suit the clean room.
| Item |
K-1000 UV machine |
| Machine dimension (L x W x H) | 970×400×340 mm |
| Mask dimension (L x W x H) | 500×400×150 mm |
| Lampshade dimension (L x W x H) | 250×150×150 mm |
| Lamp power consumption | 1000W |
| Input voltage | 220V |
| Lamp input | 120W/cm |
| Cooling | air cooling + fan |
| Conveyor belt speed (M/min) | 0.6 ~ 6 |
* This machine is for industrial use only. Please do not use it for other purposes. Please read the operating instructions carefully before use.
* This unit is a high-voltage product and is not waterproof. Please do not use it in a humid environment to avoid danger.
* During operation, please wear protective gear such as UV-resistant goggles and gloves.
* Do not look directly at the light source or expose it to your skin or touch the bulb during operation to avoid eye damage or burns.
．Light source spectrum
．Layout
．Examples - Medical equipment, optical communication module packaging protection
* Contact us for more information.
