Overview
PureMax® High Flow Cartridge Filter Housing is specifically designed for high flow filter cartridges, delivering both high performance and cost efficiency. Compared with standard filter cartridges, high flow cartridges provide significantly greater flow capacity and dirt-holding capacity per cartridge. Although the unit cost of each cartridge is higher, the overall operating cost can be greatly reduced through lower cartridge consumption, reduced maintenance labor, fewer replacement cycles, and minimized downtime. As a result, high flow filtration systems have been widely adopted in industries such as electronics, chemical processing, petrochemical, pharmaceutical, and food & beverage.
This filter housing features a horizontal design that helps minimize installation space requirements. In addition, filter cartridge replacement and vessel cleaning can be performed without special tools, reducing maintenance time and operating costs. It is especially suitable for industrial filtration systems requiring high flow rates, continuous operation, and reduced maintenance costs.
Feature
| ※ High Flow Rate Single Cartridge Filter Housing (Reference Image) | ● Advantage |
 | • Compatible with various high flow cartridge connection designs, ensuring bypass-free filtration performance. • Optimized housing design reduces installation costs and improves facility space utilization. • A single high flow filter cartridge can replace dozens of conventional cartridges, significantly reducing replacement time and maintenance effort. • Horizontal housing design provides easy and convenient cartridge replacement. ※ Design Specifications • Design Pressure: 15 kg/cm² • Operating Pressure: 10 kg/cm² • Design Temperature: 100°C • Operating Temperature: 75°C |

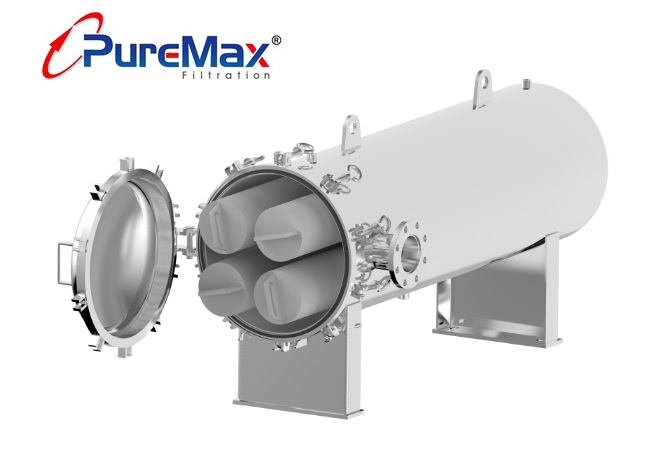

| ※ High Flow Rate Multi-cartridge Filter Housing (Reference Image) | ● Advantage |
 | • Compatible with various high flow cartridge connection designs, ensuring bypass-free filtration performance. • Optimized housing design reduces installation costs and improves facility space utilization. • A single high flow filter cartridge can replace dozens of conventional cartridges, significantly reducing replacement time and maintenance effort. • The horizontal housing design allows easy installation and replacement of both 40" and 60" high flow cartridges. • Housing size, in/outlet can be configured according to flow requirements and cartridge quantity. ※ Design Specifications • Design Pressure: 10 kg/cm² • Operating Pressure: 7 kg/cm² • Design Temperature: 100°C • Operating Temperature: 75°C |
| ※ Vertical Design Available~ |  |
| Manufactuing | Chemicals | Photoelectric | F&B | Pharmaceutical | Biotech |
| Process Water Utility Water Gas Filtration Wastewater Treatment | Acid Solutions Alkaline Solutions Solvents Specialty Chemicals | Ultra Pure Water Etching Solutions Photoresists Developers | Mineral Water Bottled Water Alcoholic Beverages Juice / Soft Drinks | Dialysis Purified Water Serum Growth Media | Microorganisms Biological Cultures Purified Water Pharmaceuticals |
