Feature

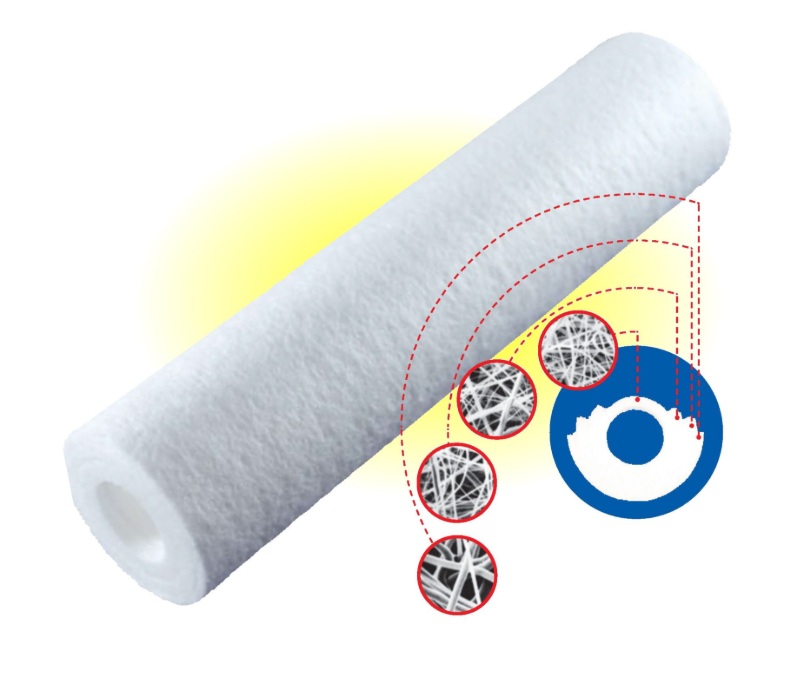

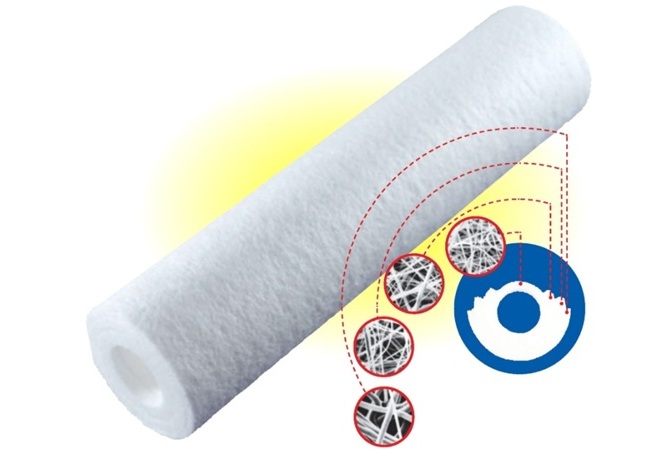

The most common cartridge in filtration system. Using 100% PP material with unique process technology in our own facilities, largest output over 1.5million pieces (10") per month. Length in 5" to 40", nominal or absolute rating from 0.5um to 100um, plus the highest contaminant holding capacity, the filtteck® melt blown filter cartridges (depth filter cartridges) provide you the significant performance with the most economic consumption.
Advantage
* 100% PP material, providing the best chemical compatibility.
* The graduated structure increases dirt holding capacity.
* One-piece molding, no adhesive or other additives.
* Special sizes or connectors can be customized.
*Quality certified by NSF42 and FDA CFR Title 21.
Specification
| Item |
FCB | SCB | SP | SM |

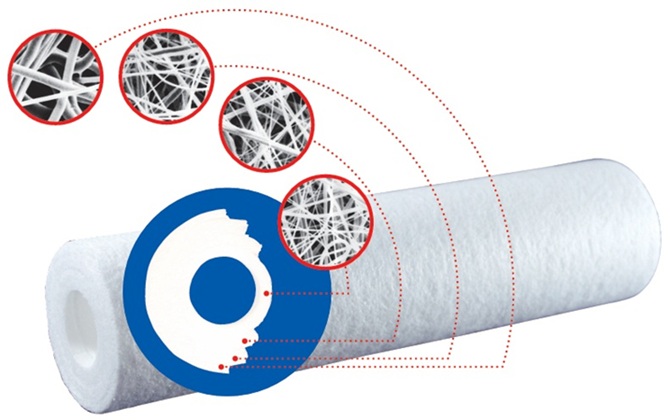

| Structure | 4-layer fiber fineness | 2-layer (inner fine, outer coarse) | patented cavity surface | high accuracy 2 layers |
| Hardness | medium | high | ||
| Grade | nominal | absolute | ||
| Filtering efficiency | 60~80% |
70~90%
| >99.9% (multi-pass) | >99.9% (single-pass) |
| Max. operating pressure (80/60/20ºC) | - /1.8/3.2 kg/cm2 | 1.2/2.1/4.1 kg/cm2 | ||
| Change out ΔP | 1.5kg/cm2 | 2.1kg/cm2 | ||
| Max. operating temperature | 60ºC | 80ºC | ||
⊙ Key Selection Points:
| FCB | For general industrial and high-flow water filtration. |
| SCB | High filtration efficiency and high physical strength. |
| SP | Patented surface structure enhances dirt holding capacity, absolute grade filtration efficiency. |
| SM | Achieves the filtration efficiency of a pleated filter cartridge at the price of a melt-blown filter cartridge. |
| Overall Features: Available in various micron ratings, lengths and configuration, superior to competitors. | |
Usage
* PCB electroplating* Semiconductor plant cooling water system filtration (PCW)
* CMP slurry filtration
* Pre-filter for DI water filtration systems
* Clarification filtration for medium and low viscosity chemical solutions
* Process water and recycled water filtration
* Spray painting filtration in paint baking plants
