Feature

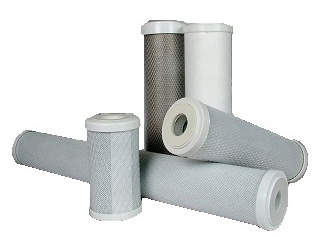

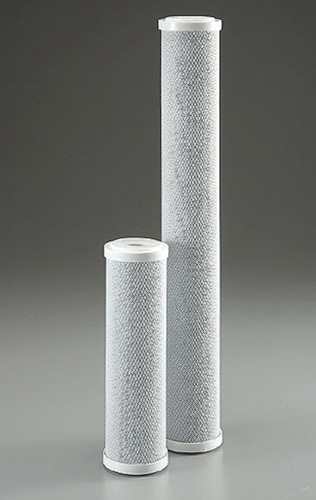

PureMax® activated carbon filter cartridge is made from refined natural coconut-shell activated carbon. Both the materials and the manufacturing process comply with NSF and FDA standards. Designed for general commercial drinking water systems and industrial processes, the activated carbon cartridge effectively adsorbs chlorine, odors, discoloration, and other impurities in water, achieving excellent purification performance.
Advantage
※ Low pressure drop, high dirt holding capacity, stable flow rate, and long service life.
※ Raw materials and manufacturing processes comply with NSF and FDA regulations.
※ Effectively reduces chlorine, volatile organic compounds, pesticides, and hazardous chemicals; deodorizes and improves taste.
※ Suitable for general commercial drinking water or industrial processes and wastewater recycling.
※ OEM custom products of various styles are available upon request.
Specification
| Item |
Length | Outer diameter | Initial pressure drop | Life span |
| CBC-05 | 5" (127mm) | 2.5" (63 mm) | 0.12 kg/cm2@ 3LPM | 8000L@ 3LPM |
| CBC-10 | 9.75" (248mm) | 2.5" (63 mm) | 0.11 kg/cm2@ 5LPM | 14000L@ 5LPM |
| CBC-20 | 20" (508mm) | 2.5" (63 mm) | 0.09 kg/cm2@ 5LPM | 22000L@ 5LPM |
| CBC-30 | 30" (762mm) | 2.5" (63 mm) | 0.07 kg/cm2@ 10LPM | 32000L@ 10LPM |
| CBC-40 | 40" (1016mm) | 2.5" (63 mm) | 0.05 kg/cm2@ 20LPM | 45000L@ 20LPM |
| CBB-10 | 10" (254mm) | 4.5" (115 mm) | 0.30 kg/cm2@ 10LPM | 40000L@ 10LPM |
| CBB-20 | 20" (508mm) | 4.5" (115 mm) | 0.25 kg/cm2@ 20LPM | 82000L@ 20LPM |
* CBB stands for Big Blue type (OD: 115mm).

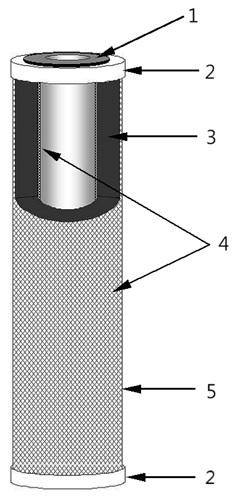

Structure
 | No. | Name | Material |
| 1 | Gasket (2 ends) | Thermal Plastic Rubber | |
| 2 | End cap (2 ends) | Polypropylene | |
| 3 | Main material | Coconut Shell Activated Carbon | |
| 4 | Wrapping | PP non woven | |
| 5 | Outer Netting | LDPE | |
Benefit
 |
Low pressure drop | → Initial pressure drop ≤ 0.075 kg/cm2@1G/min |
| Low turbidity | → Less prone to black water discharge | |
| High strength | → Withstands 120 psi pressure, not easily broken | |
| Uniform charcoal particle density | → 5 microns | |
| Large specific surface area, high adsorption value | → 40x100mesh coconut shell active carbon | |
| Porosity, stable water flow | → Uniform pore size distribution | |
| Easy and quick replacement | → Compatible with various filter cartridges | |
※ Contact us now ~
