Overview
Made of strictly selected stainless steel material in SS304, 316 or 316L, PureMax® SS filter housings have unique design for various filter bags or filter cartridges, from single to multi elements, regular or high pressure type, general purpose, high-tech and heavy duty applications.
Feature
| ※ Filter Cartridge Housings |
 |
| • Single-cartridge or multi-cartridge types (1–158 cartridges). • Compatible with various cartridge end connections, with lengths from 10" to 40". • All materials are treated with electropolishing, acid washing, or sanitary/electronic-grade polishing. • Inlet/outlet connections available in standard NPT or BSP threads, various flange standards, or sanitary fittings. |

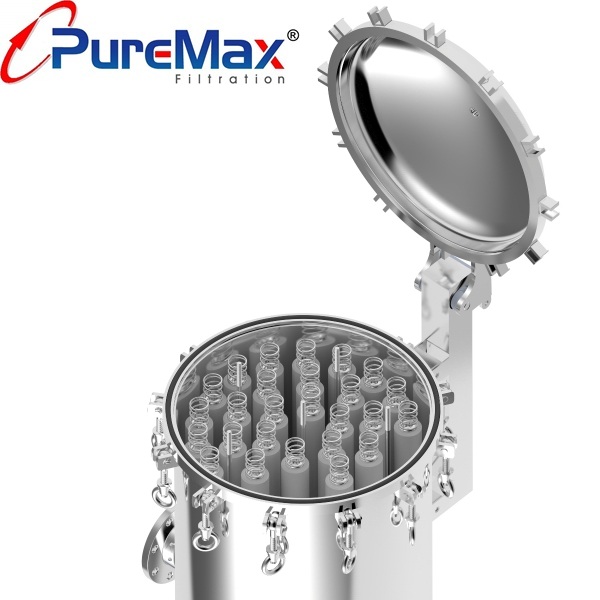

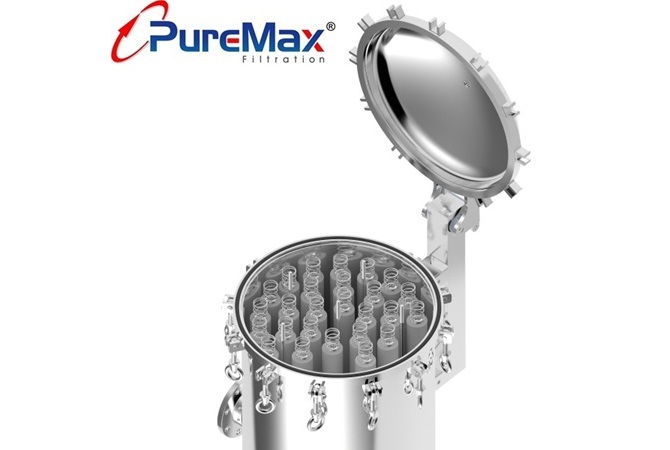

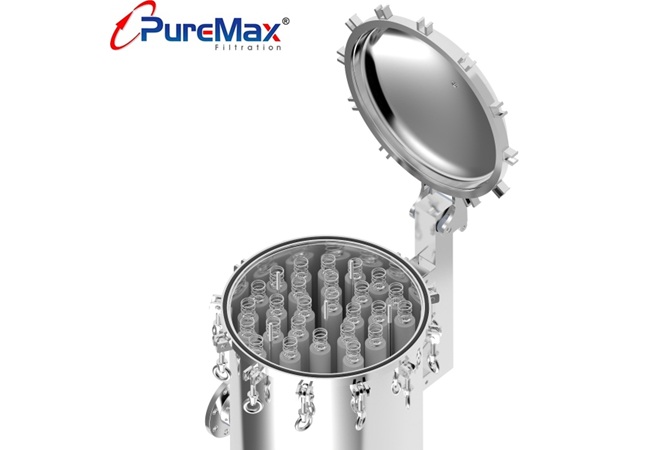

| ● Multi-cartridge Filter Housing (Reference Image) | ● Advantage |
 | • The cartridge-pedestal is compatible with both double-open-end and single-open-end cartridge (222 adaptor). • Spring-assisted foolproof design allows easy and convenient cartridge replacement. • Modular cartridge-support-plate ensures exact cartridge alignment and prevents cartridge tilting during compression. • Press-plate fitted with nuts, no need tools when tightening. • The O-ring remains securely in place when opening or closing the lid, providing safer and more convenient filter operation. |
| ※ Filter Bag Housings |
 |
| • From single to multi-bag, low pressure to high pressure operation type. • All materials are treated with electropolishing, acid washing, or sanitary/electronic-grade polishing. • Suitable for standard filter bag size 1~4, or special sizes, special flow direction design. • Optional accessory: metal float ball, bag bracket, bag retainer... |
| ● Multi-bag Filter Housing (Reference Image) | ● Advantage |
 | • The liquid flow path is designed based on a full-flow, low-velocity principle, resulting in minimal pressure loss. • The top-to-bottom filtration flow directly expands the filter bag, preventing floating and ensuring excellent filtration performance. • Equipped with reinforced eye bolts for secure sealing and leak-free operation. • Multi-bag filter housing uses single seal and positive pressure type design. • Manual lid opening mechanism for effortless and convenient operation. |
※ Industry Filtration Requirements Reference
| Manufactuing | Chemicals | Photoelectric | F&B | Pharmaceutical | Biotech |
| Process Water Utility Water Gas Filtration Wastewater Treatment | Acid Solutions Alkaline Solutions Solvents Specialty Chemicals | Ultra Pure Water Etching Solutions Photoresists Developers | Mineral Water Bottled Water Alcoholic Beverages Juice / Soft Drinks | Dialysis Purified Water Serum Growth Media | Microorganisms Biological Cultures Purified Water Pharmaceuticals |
※ Please contact us for spec. drawing and the best pricing!!
