Feature
※ filtering new oil before pouring into the system for service
※ off-line filtering for conditioning fluid system
※ oil flushing for hydraulic and lube oil system
※ removing particles from the reservoir of system
Sepcification
| Function |
Advantage | Benefit |
| • Two-stage high-efficiency fiberglass filter | Meet the required cleanliness | Most suitable filtration for cost saving |
| • Optional polymer oil-water separator element | Remove the water from the system | Effectively eliminates contaminants and water in single process |
| • Motor pump protection filter | Protects the gear pump, extending service life | Ensures long-term operation |
| • Electric control box | Phase protection, motor reverse rotation prevention, and overload protection | Easy operation with status display |
| • Pressure gauge | Provides intuitive indication when filter element is clogged | Helps determine the best timing for filter replacement |
| • Particle Counter | Precise measurement of oil borne particles | Displays accurate oil condition data |
| • Oil ducts, Pipelines and Tray | Completed accessories | Conveniently adaptable for use with various oil drums or tanks |
Structure

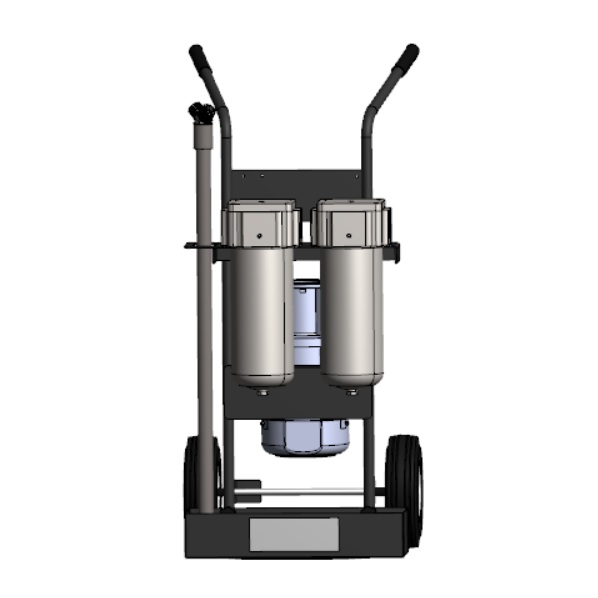

| Front View |

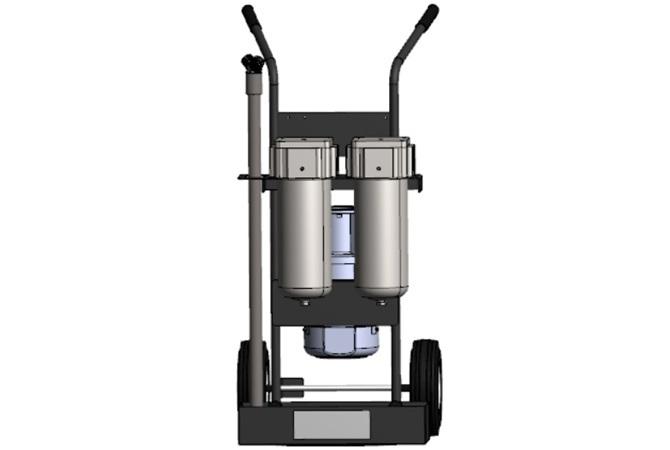

Rear View |
 |  |
* Operating Temperature : -40~+93℃
* Flow Rate : 40LPM
* Dimensions : L.600 x W.500 x H.1100mm
* Filter Efficiency : 3um, 6um, 10um, 20um @ efficiency 99.5% or requested ratings.

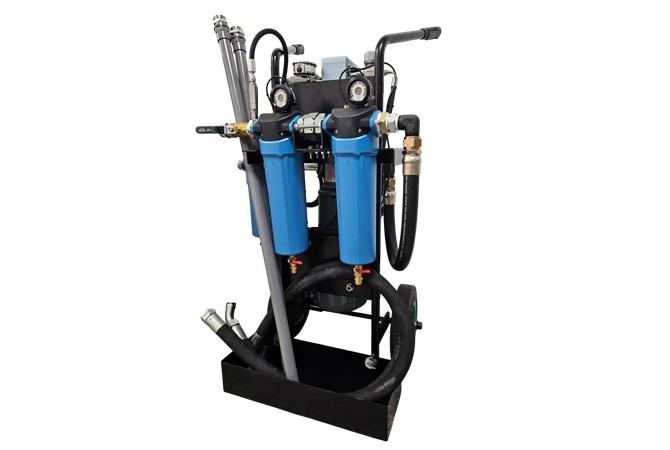

 | ECO type Movable Filter Cart Offline filtration for oil purification Auxiliary system to enhance oil cleanliness Applicable for oil purification in hydraulic and lubrication systems Suitable for pre-filtration of new oil before use * Contact us ~ we will be glad to recommend you the most suitable one. |
