Brief
According to research, among the causes of failures in hydraulic and lubrication machinery, aside from equipment degradation and improper operation, 70% are due to surface corrosion and spalling of mechanical components. Of these, 20% are caused by surface erosion, while 50% result from mechanical wear.
Therefore, effectively controlling the cleanliness of the operating oil can significantly extend the service life of hydraulic and lubrication equipment.
Advantage

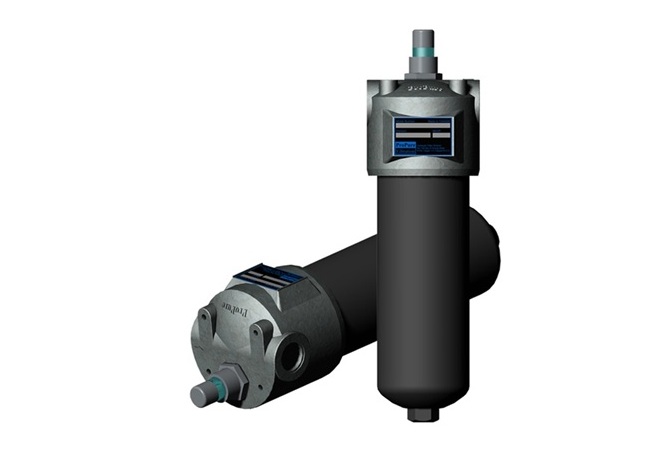

 | ※ High Pressure Filter • High-pressure filter assembly designed for 6000 psig (350 kg/cm²) systems. • Can be equipped with high-efficiency fiberglass cartridges (βx ≥ 200). • Or high-collapse-pressure 3000 psig (210 kg/cm²) cartridges. • Effectively protects critical components in hydraulic systems. |
 | ※ Pressure line Filter, Return line Filter • Installed on machinery, return lines, and inlet/outlet lines. • A single-piece design with a quick-release top cover. • Suitable for filtering hydraulic lubricating oil, engine oil or other oils. |
 | ※ Suction Filter • Filter media options include high-efficiency fiberglass (40µm) or metal mesh (60, 90, 250µm). • End caps, center tube and filter media are bonded with heat-resistant synthetic resin. • Operating temperature: −40 °C to +100 °C. • Initial pressure drop of a single filter cartridge is less than 0.015 bar. • Filtration flow direction: outside-to-inside. • Optional 0.14-bar relief valve available on the cartridge end cap. |
