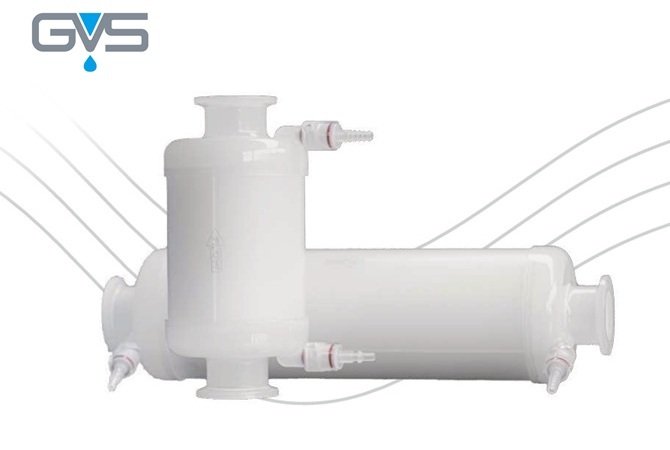

Overview
GVS Capsule Filters utilize high-performance membrane media featuring broad chemical compatibility and high flow characteristics as the primary filtration layer. No adhesives, binders, or surfactants are used during the manufacturing process to ensure superior downstream cleanliness. All filters are rinsed with high-purity water to minimize extractables and extend the service life of downstream final filters.
These filters are widely used across pharmaceutical, biotechnology, food & beverage, electronics, chemical processing, laboratory applications, and various purified water systems.
CSK series
．The CSK series features an integrated, |
|
| ITEM |
CSK-PS | CSK-PT | CSK-PP | CSK-NY |
| Filter Media | Asymmetrical PES Membrane | Hydrophobic ePTFE Membrane | Polypropylene Membrane | Nylon Membrane |
| Advantage | Excellent chemical compatibility with high flow rate and low extractables. | Excellent chemical durability High gas permeability. | High dirt-holding capacity with high flow performance. | 100% integrity tested with low pressure drop and low extractables. |
| Feature | Improves process efficiency with low protein adsorption, making it suitable for sterile and fine filtration applications. | Ideal for sterile gas filtration and venting applications. | Provides low pressure drop, cost-effective operation, and is well-suited for prefiltration applications. | High effective filtration area, excellent chemical compatibility, and stable filtration performance. |
| Typical Appliation | Cell Culture Media Large Volume Parenterals Pharmaceutical Bulk Chemical Solutions Diagnostics Blood and Serum Fractions Purified Water Beer, Wine and Spirits Juice, Drinks, Bottled Water | Sterile Air Feed Chemicals Pharmaceuticals Solvents | Process Water Vinegar Aqueous Solutions Beer, Wine and Spirits Juice, Drinks & Edible Oils Bulk Chemicals Pharmaceutical Intermediates | Bottled Water Vinegar Aqueous Solutions Beer, Wine and Spirits Juice, Drinks & Edible Oils Pharmaceutical Intermediates |
* Autoclave at 125 °C, 30 minutes and 25 cycles.
* Biological Safety : All components meet the specifications for biological safety per USP Class VI -121 °C for plastics.
CIK series
| ．The CIK series is specifically designed for high-purity and sterile filtration processes. Depending on the selected filter media, it provides a complete solution ranging from: bioburden control fine filtration pre-filtration high-solids liquid processing |  |
| ITEM |
CIK-PS | CIK-PT | CIK-PP | CIK-NY | CIK-PV |
| Filter Media | Asymmetrical PES Membrane | Hydrophobic ePTFE Membrane | Polypropylene Membrane | Nylon Membrane | Hydrophilic PVDF Membrane |
| Advantage | Low adsorption of proteins and biomolecules | Staubli vent connection for In-line integrity test | High dirt-holding depth media | IPA-free wetting hydrophilic membrane | Binder free & Ultra pure water rinsed |
| Feature | Ideal for filtration of high-value products and sensitive liquid applications. | Excellent chemical resistance, high gas permeability, and low extractables. | Stable flow performance and cost-effective solution for prefiltration. | High flux per unit area, reduced cross-contamination risk, and broad chemical compatibility. | Ultra-low extractables, additive-free manufacturing, high-purity output, and high flow performance. |
| Typical Appliation | Cell Culture Media LVP's Pharmaceutical Bulk Chemical Solutions Diagnostics Blood and Serum Fractions Purified Water Wine and Drinks | Sterile Air Feed Chemicals Pharmaceuticals Solvents | Process Water Vinegar Aqueous solutions Beer, Wine and Spirits Juice, Soft Drinks, Edible Oils Bulk Chemicals Pharmaceutical intermediates | Solvents Parts Cleaning Fine Chemicals Cosmetics Ink Jet Applications Pharmaceuticals Process Water Biologics | Beverages Fine Chemicals Pharmaceuticals Gas Filtration Biologics Antibiotics |
* Capsule Integrity : Minimum Burst Pressure : 123.5 psi (8.5 barg).
* Food Safety Compliance : Comply with FDA (21 CFR) and EU Directives 10/2011.
Comparison
．Both the CSK Series and CIK Series belong to the Capsflow Capsule Filter product family. They are available with PES, PTFE, and PP filtration media for liquid and gas filtration in applications such as biopharmaceutical manufacturing, food & beverage, chemical processing, and laboratory operations.
While both series share the same filtration technology, they are designed to meet different application requirements, as summarized as below:
| Item |
CSK series | CIK series |
| Product Positioning | General-purpose capsule filter | Process-grade, high-flow capsule filter |
| Filtration Area | 500、1000、1500、2100 cm² | 1480、2650、5500、11000、16500、22000 cm²（2.5"~40"） |
| Size | Compact and space-saving design | Larger size, designed as a replacement for conventional cartridge filters |
| Flow Rate | Low to medium flow rates | High flow rates for large-volume processing |
| Connection Options | NPT, Swagelok, Hose Barb, Tri-Clamp | Primarily designed for process piping systems with integrated vent and drain ports |
| Integrity Testing | Available on selected models | Supports in-line integrity testing |
| Typical Applications | Laboratory, pilot-scale, and small-batch production | GMP manufacturing, biopharmaceutical processing, food & beverage production, and large-scale industrial processing |
Select CSK Series:
For laboratory, R&D, pilot-scale, or small-batch production applications where a compact design and cost-effective capsule filter are required.
Select CIK Series:
For GMP production lines and high-flow process applications where a larger filtration area, longer service life, and process-grade performance
* Certainly, you can also entrust Tech Seed to recommend you the most suitable ones! Contact us !
