Overview

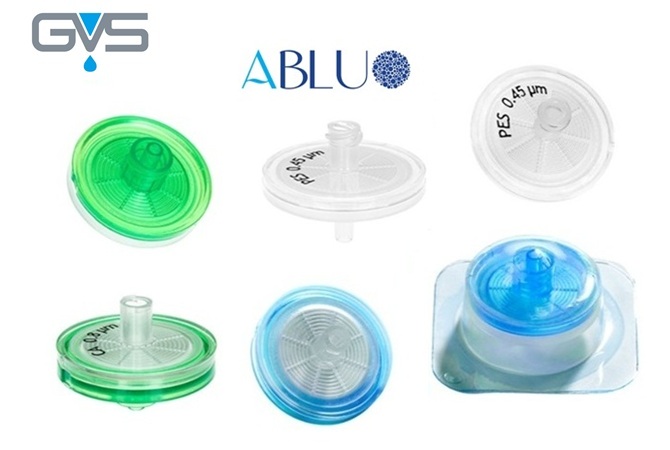

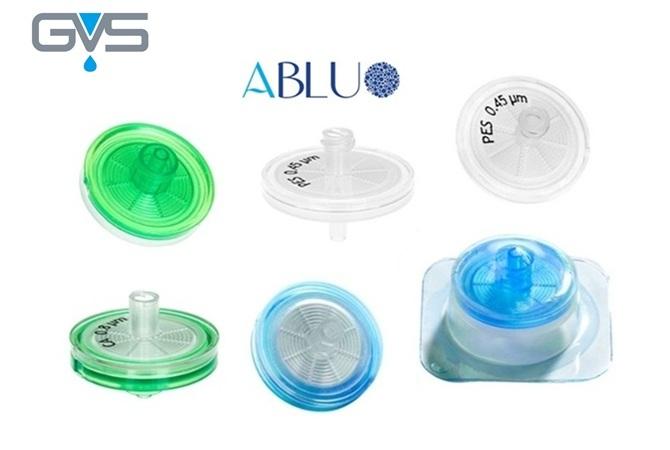

GVS ABLUO® Syringe Filters feature a modified acrylic housing with a bidirectional membrane support design, allowing both sample injection and aspiration for enhanced flexibility and ease of use.
Available in both 13 mm and 33 mm diameters, ABLUO® Syringe Filters are offered in sterile and non-sterile configurations with a wide selection of membrane materials to meet diverse application requirements. They are ideal for HPLC sample preparation, solvent filtration, environmental analysis, ion chromatography, cell culture, protein chemistry, and general laboratory sample preparation.
What’s Special
．Increased throughput and speed of sample preparation.
．Lower hold-up volume due to an improved flow channel design and reduced spacing between the supports within the housing for better handling of small sample volumes or costly samples.
．Syringe filters are integrity tested to ensure a proper filter fit and weld to eliminate any potential filter by-pass.
．Each filter is labeled with the specific filter material and pore size for easy identification even if the syringe filter is not in the packaging.
．Modified acrylic housing to bidirectionally support the membrane allowing sample injection or aspiration.
Specification
 | Membrane Materials: CA, MCE, NY, PES, PTFE, PVDF, RC Membrane Diameter: 13 mm Effective Filtration Area: 0.76 cm² Housing Diameter: 18 mm Housing Materials: Acrylic, Polypropylene, Ultrasonically welded Inlet / Outlet: FLL / MLL-MLS Holdup Volume: <50 microliters Maximum Operating Temperature: PP 90°C, Acrylic 50°C Maximum Operating Pressure: 80 psi Sterile: No |
 | Membrane Materials: CA, PES, PVDF Membrane Diameter: 13 mm Effective Filtration Area: 0.76 cm² Housing Diameter: 18 mm Housing Material: Acrylic Ultrasonically welded Inlet / Outlet: FLL / MLL-MLS Holdup Volume: <50 microliter Maximum Operating Temperature: 50°C Maximum Operating Pressure: 80 psi Sterile: Yes |
 | Membrane Materials: CA, GF, MCE, NY, PES, PE, PTFE, PVDF, RC Housing Diameter: 33 mm Membrane Diameter: 25 mm Effective Filtration Area: 4.6 cm² Housing Materials: Acrylic, Polypropylene Ultrasonically welded Inlet / Outlet: FLL / MLL-MLS Holdup Volume: <100 microliter Maximum Operating Temperature: PP 90°C, Acrylic 50°C Maximum Operating Pressure: 80 psi Sterile: No |
 | Membrane Materials: CA, NY, PES, PVDF Housing Diameter: 33 mm Membrane Diameter: 25 mm Housing Material: Acrylic Ultrasonically welded Effective Filtration Area: 4.6 cm² Inlet / Outlet: FLL / MLL-MLS Holdup Volume: <100 microliter Maximum Operating Temperature: 50°C Maximum Operating Pressure: 80 psi Sterile: Yes |
| Membrane Material Abbreviations CA：Cellulose Acetate GF：Glass Fiber MCE：Nitrocellulose NY：Nylon 66 | PES：Polyethersulfone PE：Polyethylene PTFE：Polytetrafluoroethylene PVDF：Polyvinylidene Fluoride RC：Regenerated Cellulose |
Application
．Sterile Filtration and Clarification
．Analytical Sample Prep, uHPLC
．Cell Culture
．Protein Chemistry
．Filtration of Aqueous and Alcohol Solutions
．IC Chromatography
