Save time and money in the sample preparation process with the Separa® Filter Vial, provided by Tech Seed Enterprise.

Overview

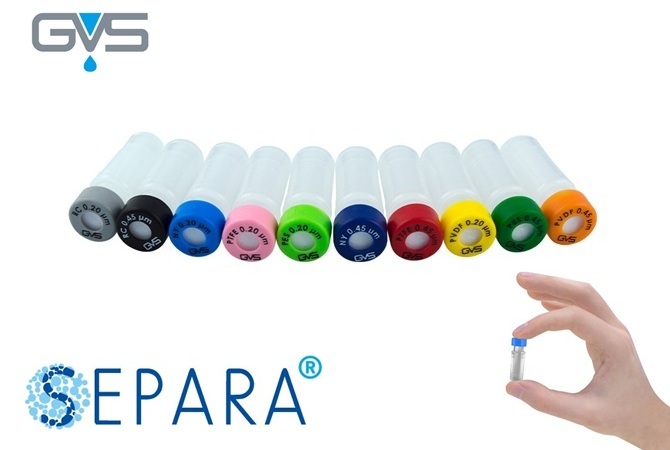

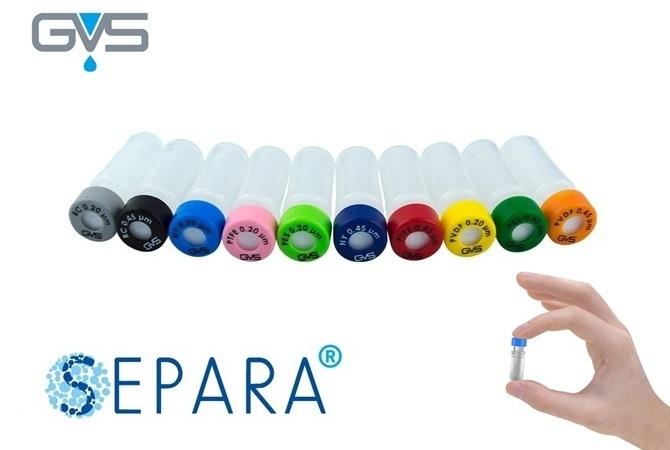

GVS SEPARA^® Filter Vial is a one-step sample preparation device that allows a quick, effective, and simple to use process integrating a self-sampling system, membrane, cap, and lid with precut septa. The liquid is placed in the outer vial and dispensed by pressing the inner insert so that it is pushed through the membrane. The sample is then filtered and Separa® is ready to be loaded into the autosampler.

What’s Special

All-in-One Design: Combines the filter membrane and sample vial into a single device, minimizing contamination risks.
Pre-slitted Septa Cap: Ensures clean, simple, and convenient sample transfer.

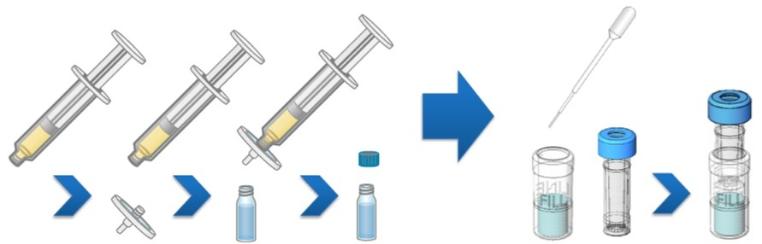

Replaces Traditional Components: Eliminates the need for syringes, syringe filters, glass vials, and separate caps, reducing consumable costs and laboratory waste.
Improves Efficiency: Simplifies the sample preparation workflow and reduces handling steps.
High Compatibility: Compatible with most auto-samplers and multi-compressor filtration systems.

Characteristic

	Dimensions: 12 mm diameter x 32 mm height Materials: Polypropylene, PTFE and Silicone septa Fill Line Volume: 480 microliter Filtering Capacity: 450 microliter Dead Volume: 30 microliter Compression Force: 8 psi (0.6 bar) Maximum operating temperature: 120°F (50°C)

How to use

1️⃣Sample filling	2️⃣Press down to filter sample	3️⃣Filtered sample ready for analysis

Advantage

．Save HPLC sample preparation time ．Preserve precious sample ．Reduce cross contamination ．Increase user safety
．Save purchasing time & cost on consumables
．Easy to dispose on waste management

Toggler 120

SEPARA^® Toggler 120

．The Toggler is maintenance free unit without replacement part.
．In case of sample spillage during compression, user to follow the own standard
operating procedures to dispose of spills samples and contaminated parts.
．Before starting, select the SEPARA filter vial compatible with your sample.
．Do not place among table borders.
．Weight：3.5kgs

Safety Waring:
1. Do not put the hand between piston and plastic tray.
2. Do not overfill the plastic external vial.
3. Do not use the Multi Vial Compressor for assemble glass vials.
4. Do not use vials with different shape and dimension from GVS.

Cleaning Instructions:
Toggler and Plate can be cleaned with ethanol 90%., also go in autoclave at 121°C for 15 minutes.

*SEPARA^® Toggler 120 : Provides multiple filtration of 12 syringeless filter vial samples at a time, reduce user hand stress and further shorten 30% sample preparation time.

Operation

1️⃣	2️⃣	3️⃣	4️⃣	5️⃣	6️⃣	7️⃣

Load up to 12 external vials in vial holder plate.	Dispense sample into the external vial taking care not to overfill.	After selecting the compatible SEPARA filtration membrane for your samples, insert the plunger.	Place the plate into position on the toggler using the guide ribs for placement.	Slowly turn the lever until the end of the stroke.	Release the lever back to original position.	Remove filter vials.
