Overview
PureMax® Sanitary Cartridge Filter Housing is designed to meet sanitary-grade standards and features a #400 polished finish on both internal and external surfaces, providing a bright mirror-like appearance. Combined with a dead-leg-free design on all liquid-contact surfaces, it effectively prevents contaminant buildup and meets stringent process hygiene requirements. The cartridge-support-plate is manufactured using a forging process to enhance structural strength and reduce the risk of deformation. In addition, the patented locking mechanism allows for quick and easy cartridge replacement without the use of tools, improving sealing performance and ensuring stable filtration efficiency.
Feature
※ Sanitary Single Cartridge Filter Housing

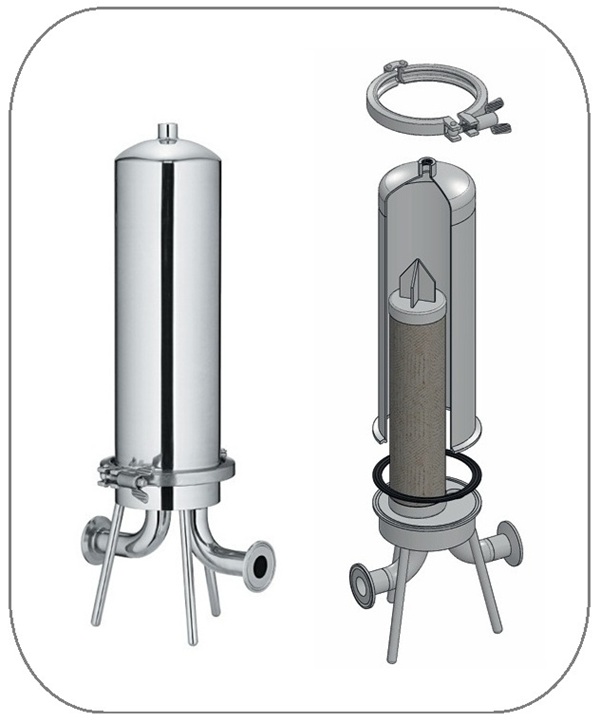

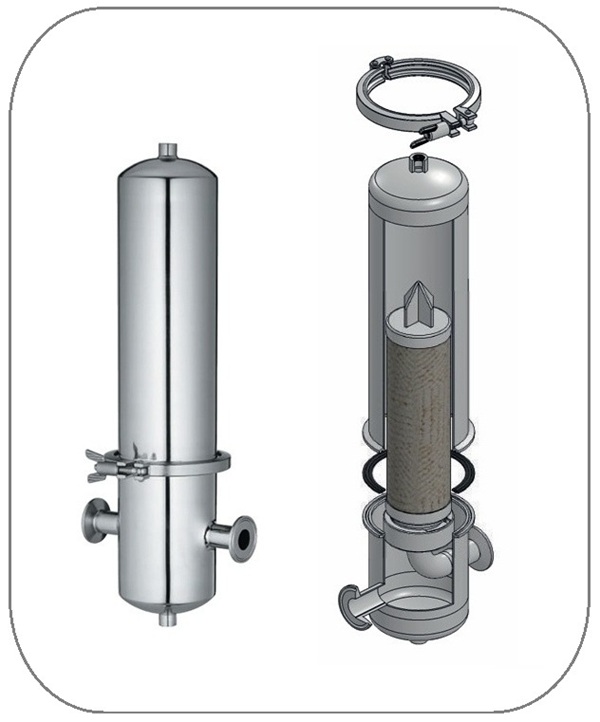

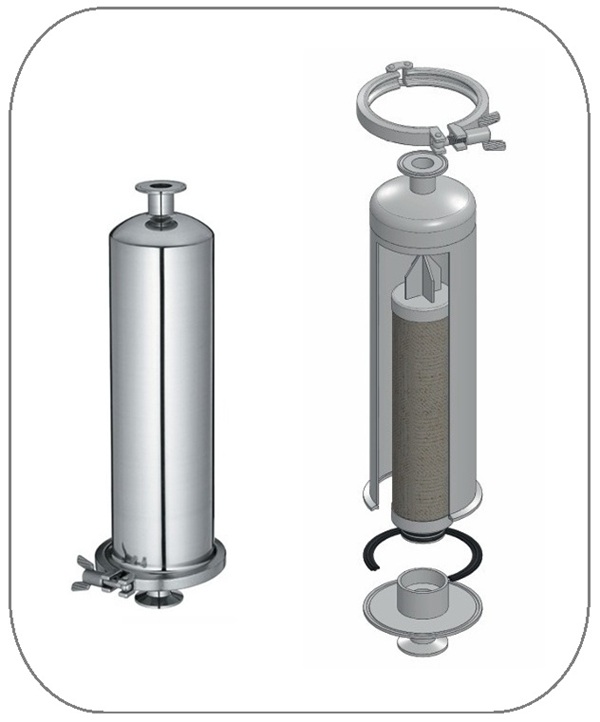

| ● Standard type | ● Symmetrical type | ● Straight Type |
 |  |  |
| Leg stand, for laboratory | Symmetrical in/outlet, easy piping | Straight flow direction, for air filtration |

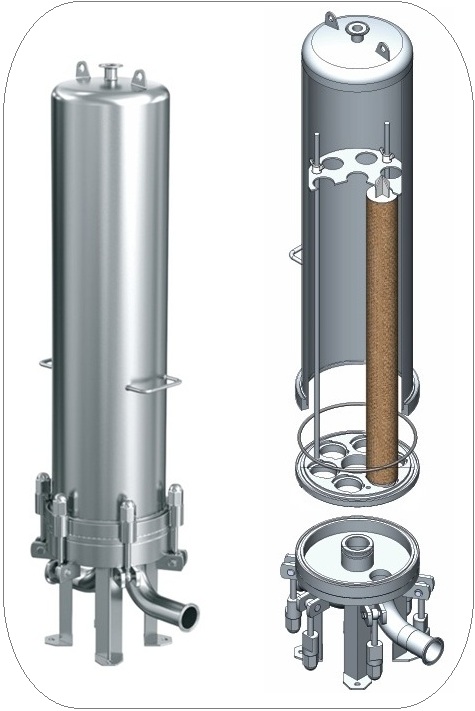

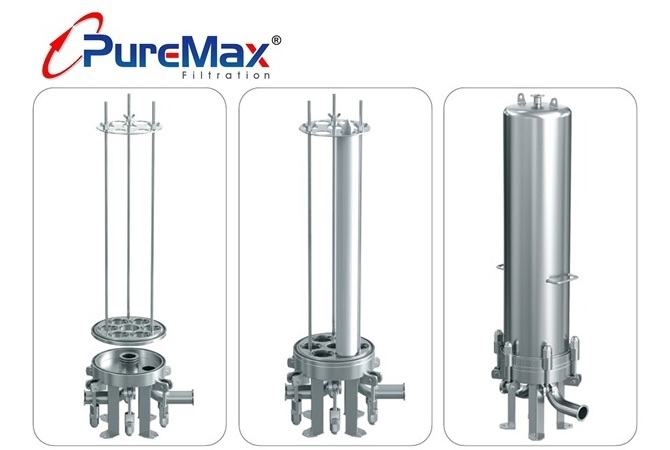

※ Sanitary Multi-Cartridge Filter Housing
| ● Photo Image | ● Advantage |
 | • Internal and external surfaces feature a #400 mirror-polished finish. • Dirt-free design on liquid-contact surfaces prevents contaminant residue buildup. • Forged cartridge-support-plate for high strength and resistance to deformation. • Detachable cartridge-support-plate for easy and thorough cleaning. • Symmetrical inlet and outlet design provides convenient piping installation. • Patented nut-lock mechanism enables quick cartridge replacement and maintenance without tools. • Pressing-plate applies uniform pressure across the filter cartridges, improving sealing performance. • Housing sizes are available in different configurations based on flow requirements and cartridge quantity. • Using standard 30" filter cartridges as an example, a 36-cartridge configuration can provide a maximum flow rate of up to 108 m³/h. • Inlet and outlet connection sizes can be customized. ※ Design Specifications • Design Pressure: 10 kg/cm² • Operating Pressure: 7 kg/cm² • Design Temperature: 100°C • Operating Temperature: 75°C |
※ Industry Filtration Requirements Reference
| Manufactuing | Chemicals | Photoelectric | F&B | Pharmaceutical | Biotech |
| Process Water Utility Water Gas Filtration Wastewater Treatment | Acid Solutions Alkaline Solutions Solvents Specialty Chemicals | Ultra Pure Water Etching Solutions Photoresists Developers | Mineral Water Bottled Water Alcoholic Beverages Juice / Soft Drinks | Dialysis Purified Water Serum Growth Media | Microorganisms Biological Cultures Purified Water Pharmaceuticals |
※ Please contact us for spec. drawing and the best pricing!!
