Overview

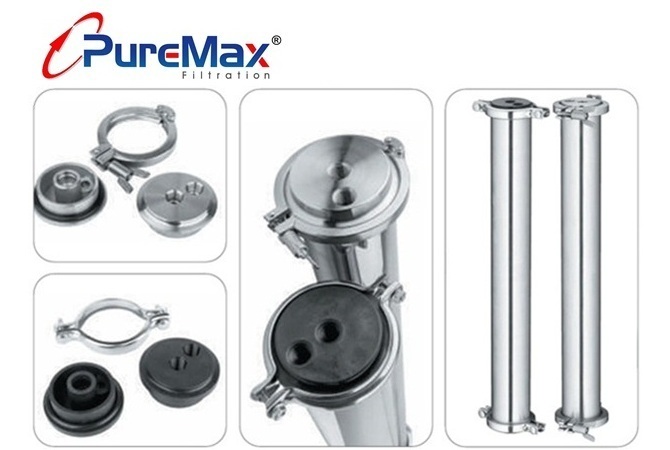

PureMax® RO Membrane Housings offer cost-effective nylon end caps or stainless steel end caps for demanding industrial environments, achieving an optimal balance between cost efficiency and durability. Engineered for harsh operating conditions, the housings maintain excellent structural integrity and reliable performance even under prolonged exposure to sunlight, rain, humidity, and high-temperature outdoor environments, delivering outstanding weather resistance and long service life.
The membrane housing body is available in SUS304 or SUS316 stainless steel, allowing selection based on fluid characteristics, corrosion resistance requirements, and specific operating environments. In addition, various surface finishing options are available upon request, including acid washing, burnishing, electrolyzing. These treatments not only enhance the product’s appearance but also improve surface smoothness, reduce contaminant adhesion, and strengthen corrosion resistance while simplifying cleaning and maintenance. This makes the product particularly suitable for applications in the food & beverage, biotechnology & pharmaceutical, electronics, semiconductor, water treatment, and other industrial processing industries.
Specification
| ● Photo Image | ● Contents |
 | ITEM 1. Clamp 2. End cap 3. O-ring 4. O-ring 5. Shell • Design Pressure：16 kg/cm² • Operating Pressure：10 kg/cm² • Design Temperature：70°C • Operating Temperature：40°C ※ RO25 series only with SUS304 material. ※ All specifications are subject to change without notice. |
| Model | A | B | C | D | N1/N2 |
| RO2521 | ø67mm | 545mm | 11mm | 571mm | 3/8" |
| RO2540 | ø67mm | 1030mm | 11mm | 1056mm | 3/8" |
| RO4021 | ø106mm | 545mm | 22mm | 593mm | 1/2" or 3/4" |
| RO4040 | ø106mm | 1025mm | 22mm | 1073mm | 1/2" or 3/4" |
| RO4080 | ø106mm | 2040mm | 22mm | 2068mm | 1/2" or 3/4" |
| RO40120 | ø106mm | 3055mm | 22mm | 3103mm | 1/2" or 3/4" |
| ● Photo Image | ● Contents |
 | ITEM 1. Clamp 2. End cap 3. O-ring 4. O-ring 5. PVC coupling 6. Shell flange 7. Victaulic coupling 8. Shell • Design Pressure：20 kg/cm² • Operating Pressure：14 kg/cm² • Design Temerature：70°C • Operating Temperature：40°C ※ RO80 series also provides High-Pressure type - Design Pressure：40 kg/cm² - Operating Pressure：28 kg/cm² Please contact us for details! |
| Model | A | B | C | D | E | N1 | N2 |
| RO8040 | ø210mm | 1300mm | 1132mm | 11mm | 1328mm | 1" | 1 1/2" |
| R08080 | ø210mm | 2316mm | 2148mm | 11mm | 2344mm | 1" | 1 1/2" |
| R080120 | ø210mm | 3332mm | 3164mm | 11mm | 3360mm | 1" | 1 1/2" |
| R080160 | ø210mm | 4348mm | 4180mm | 11mm | 4376mm | 1" | 1 1/2" |
| R080200 | ø210mm | 5364mm | 5196mm | 11mm | 5392mm | 1" | 1 1/2" |
| Manufactuing | Chemicals | Photoelectric | F&B | Pharmaceutical | Biotech |
| Process Water Utility Water Gas Filtration Wastewater Treatment | Acid Solutions Alkaline Solutions Solvents Specialty Chemicals | Ultra Pure Water Etching Solutions Photoresists Developers | Mineral Water Bottled Water Alcoholic Beverages Juice / Soft Drinks | Dialysis Purified Water Serum Growth Media | Microorganisms Biological Cultures Purified Water Pharmaceuticals |
