Brief
In 2018, Patmark-mini revolutionized the industrial marking market and created an entirely new category: "Digital Hand Punching".

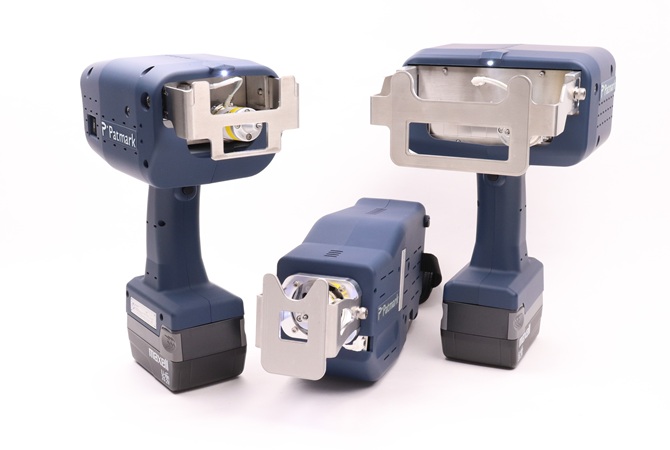

Now, the next evolution has arrived. The new Patmark2 launches with major upgrades, delivering better usability and performance than ever. Powered by the Windows software "sketchbookDuo," users gain faster Wi-Fi communication, arc marking, DXF and BMP file storage, multi-line marking from a smartphone, and even complete marking history tracking.
Feature
| ● The Original Digital Hand Punching. ● 15 mm square marking windowㄡ ● Well suited for single-character marking, logos, 2D code. ● The self-standing, hands-free design delivers stable marking. |  |

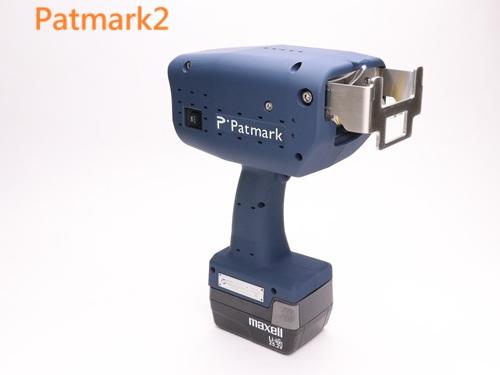

 | ● Everything you need. Nothing you don't. ● With a 33 mm x 15 mm marking area. ● A gun-grip design, you can mark with ease from any angle around the workpiece. ● Patmark2 delivers just the right balance. |

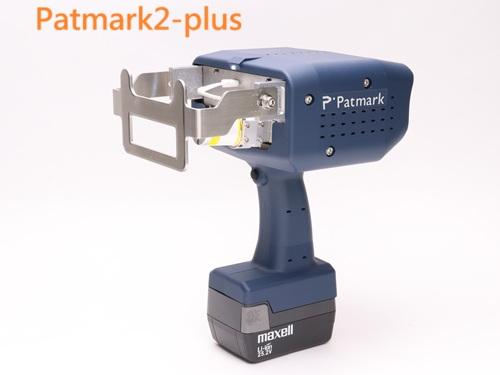

| ● Wider Window, Greater Capability. ● The large 80 x 20 mm marking area covers a wide range of marking tasks. ● When mounted on the tool post, it supports desk-top applications. ● Combining 3.5 kg portability with expanded marking capacity. |  |
Specification
| Model | Patmark2-mini | Patmark2 | Patmark2-plus |
| Marking Area | 15 × 15mm | 33 × 15mm | 80 ×20mm |
| Li-ion Battery | 25.2V 2.0Ah | 25.2V 2.0Ah | 25.2V 2.0Ah |
| AC Adapter (option) | - | AC100V～240V 50/60Hz | AC100V～240V 50/60Hz |
| Weight (incl. battery) | 2.3kg | 2.9kg | 3.5kg |
| Dimension (WxDxH) | 92 x 146 x 308mm | 124 x 221 x 298.4mm | 184 x 254 x 298.4mm |
| Vibration Value | 2.5m/s2 or less | 2.5m/s2 or less | 2.5m/s2 or less |
* sketchbookDuo Software: iOS、Android APP (Free)；Windows - USB or WiFi connection.
* Applicable Materials: Metals up to HRC62, plastics, paper and wood.
* Specifications are subject to change without notice as we continuously strive to improve product quality.
