Brief

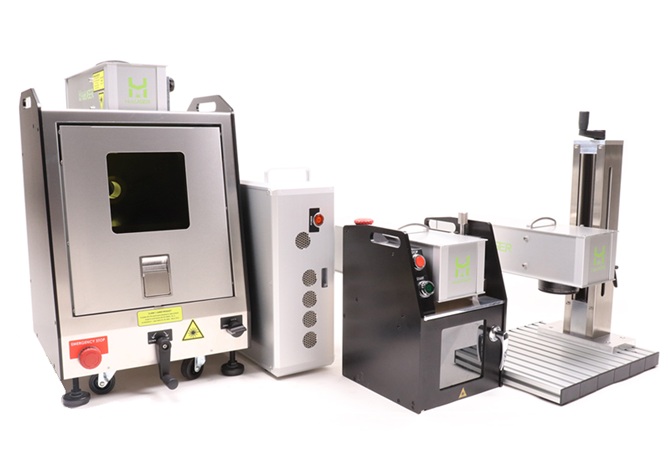

20W MOPA fiber laser marker build satellites around a central hub. As the name suggests, this laser marker allows you to build various satellite components-such as stands and enclosures-freely around a central hub. It's an all-in-one modular laser marking system, where the base can be swapped out according to the workpiece or operating environment.
Feature
| ⊙ Base Outstanding Cost Performance . The Essential Laser Marking Solution. Marking area 100 x 100 mm with a standard lens. |  |
| ⊙ Class 4 Designed for offline use. An ideal solution for parts that exceed the size limits of standard enclosure. It accommodates workpieces with a height of up to 130 mm. |  |
| ⊙ Enclosure Compact and Precise – Safety Laser Enclosure The Class 1 HL-B enclosure enables safe and efficient laser marking. Supporting a maximum height of 155 mm and a width of 220 mm. |  |
| ⊙ Mini Enclosure Compact and portable for flexible laser applications. With a controller mobility range of approximately 2 meters, you can bring the system directly to the workpiece. |  |
Specification
| Power Supply | 100-240V, 50/60Hz, single phase |
| Laser Type | MOPA fiber with wavelength of 1064nm；Class 4 |
| Average Output Wattage | 20W |
| Pulse Width Modulation | 3ns - 800ns |
| Adjustable Frequency Range | 20 - 500kHz |
| Adjustable Wattage Output | 5 - 100% |
| Guide Laser | Semiconductor laser with wavelength of 650nm ; Class 2 |
| Beam Scanner - Scanning Speed | Galvo scanner - up to 5000mm/sec. |
| Focal Distance from Scanner | 174.5 mm |
| Engraving Area | 100 mm x 100 mm |
| Operating Temperature | 0~40°C; 35%~85% RH |
| System Cooling | Fan Cooled |
◆ Compliance: CE (Scanner, Source, and PSU), IEC 62368-1, EN61000-6-4, EN61000-6-2
◆ Material Applications: Metals (Fe, Al, CRES. Au. Ti. etc), Plastics (ABS. PA. PES. PP)
Software
| OS | Windows 8、10、11 |
| Character Types | Any standard characters available to PC: Alphanumeric, kanji, assorted symbols, etc. |
| Character Size Limits | 0.1mm to 100mm |
| Engraving Parameter Limits | Power: 5-100%, Up to: 5000mm/s, Frequency: 20-500kHz |
| PC Communication | USB |
| Compatible File Types for Logos | DWG、DXF、PLT、CNC、GBR、DST、AI、BMP、JPG、TIF、PNG、EMF、PCX、CMP、FPX、PLT、CAL、ICO、P3、EP3、CLP、WMF、CUR、PSD、TGA |
| 1D Barcode Code | Code 25, 39, 93, 128, 128A, 128B, 128C、CodeBar、ITF、MSI code、US PostNet、UPC-A, E、EAN 8, 13, 128、UCC128、FIM、ITF25、GS1128 |
| 2D Barcode Code | Data Matrix (ECC000-140, ECC200)、PDF417、QR code、Maxi code、PDF417 Truncated、Micro PDF417、Micro QR code、Aztec code |
| Serial Number Range | 00000001~99999999 |
| Automated Date Engraving | Year, month, week, day, hour (24:00 or 12:00), minute, second, AM or PM |
| Supported Language | English, Japanese, Chinese, Korean |
◆ Specifications are subject to change without notice as we continuously strive to improve product quality.
Example
 |  |  |
 |  |  |
 |  |  |
Metal Products
Optoelectronics
Automotive
Electronics
Marking Tech.
