New MarkinBOX Marking System

Brief

100% electric, durable and easier to use. The third generation, upgraded MB3 controller offers enhanced capability to every application. New features include upgraded industrial communication via EtherNet/IP, upgarded functionality for DXF, BMP, and PC fonts, which can now be saved in the file, as well as an improved metal cover.

Specification

Model	MB-3315T	MB-8020T	MB-1010T	MB-2015T
Marking area	33 × 15mm	80 × 20mm	100 × 100mm	200 × 150mm
Cable length	3M	3M	2M	2M
Head dimensions (WxDxH)	116x71x192mm	168x81x212mm	200x217.5x228mm	308x269x249mm
Head weight	1.6kg	2.2kg	4.5kg	6.3kg
Tool and post dimensions (WxDxH)	220x300x573mm	220x300x573mm	220x300x573mm	310x370x544mm
Tool and post weight	7kg	7kg	7kg	10.7kg

● Controller (model no.: MB3)

Power	AC100~240V; 50/60Hz
Dimension/Weight	W.190 x D.144 x H.118mm / 1.6kg
Communication	USB / RS232C / LAN ; WiFi / Ethernet IP option
Memory	save 255files

* Please note that specifications may change without notice due to quality improvements.

Feature

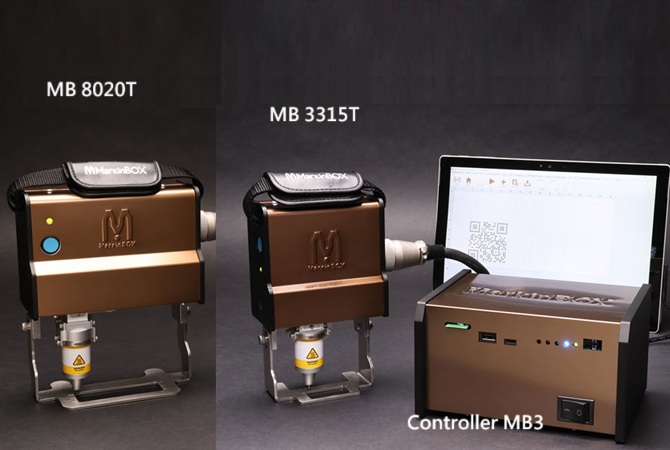

● A compact marker designed for easy portability.
MB-3315T combines compactness and mobility, making it ideal for installations in limited spaces.
It occupies minimal space even when integrated into automated machines, thereby reducing indirect costs. MB3315T guarantees both efficiency and reliability, making it suitable for use in both on-sites manual operations and automated systems.

● The ideal balance of portability and a medium-sized marking area.
MB-8020T features a marking area of about 2.5 times larger than MB-3315T, allowing for more information to be marked at once.
This makes it ideal for marking vehicle identification numbers and similar identification markings, while the wide marking area enhances traceability options.

● Benchtop marker that meets a variety of needs.
This desktop model is also effective for automation. MB-1010T features a removable marking head, allowing it to be used not only on a benchtop but also for portable applications and automation.
With a marking area of 100 mm on both X and Y axis, it is suitable for marking a wide variety of workpieces, including tags.

● The largest marking area in the MarkinBOX series.
Featuring a marking area of 200mm x 150mm, the MB-2015T can mark more information at once, enabling efficient production of multiple workpieces.
Like the MB1010T, the marking head is detachable from the tool post, enabling use in benchtop, portable, and automated applications.

Upgrade

Integration with robotics,	Connect barcode scanner to controller,	Optional WiFi module,

providing 360° marking capabilities.	mark the scanned data without a PC.	edit text, save data, and start marking.

Accessory

Excellent optional accessory can enhance the usability and functionality of the MarkinBOX. In addition to the Chuck rotary device, Magnet guide, Foot switch, we also offer the following accessories. This comprehensive lineup truly addresses your needs.
