Brief
The Patmark® portable pin marking systems, though compact and lightweight, never compromises on marking quality—this is the commitment of a century-old Japanese company. With the simplest operation, it provides a permanent, fade-free mark, making it your newest choice.
Feature
Are you still using a hammer?
* Patmark-mini-S is truly a Digital Punch. Achieving a cordless, battery-powered marking experience！
* Coming with the ideal marking area of 33x15mm, the Patmark is the fully portable pin marking unit.
* Patmark-plus, designed with the widest marking area of 80x20mm , limitless layouts are possible.
It allows you to be freed from hitting a hammer,
and makes it possible to mark your parts safely while still marking stable and beautiful characters
Where to use
| In-time marking (Wi-Fi mode) | Production line | Outdoor |
 |  |  |
Specification

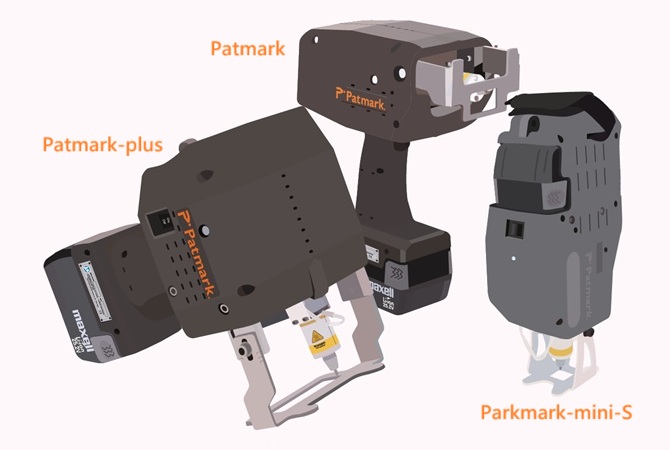

| Model | Patmark-plus | Patmark | Patmark-mini-S |
| Marking Area | 80 × 20mm | 33 × 15mm | 15 ×15mm |
| Power Supply | AC100V～240V 50/60Hz | AC100V～240V 50/60Hz | AC100V～240V 50/60Hz |
| Lithium-ion battery | 25.2V 2.0Ah | 25.2V 2.0Ah | 25.2V 2.0Ah |
| Weight (When using AC adapter) | 3.0kg | 2.3kg | － |
| Weight (With battery) | 3.5kg | 2.9kg | 2.3kg |
* Software: iOS、Android APP (standard)、PM Win - free (via Wifi or USB transmission)。
* Applicable materials: metal (hardness up to HRC62), plastic, paper, wood products.
* The above specifications are subject to change without prior notice.
