Brief

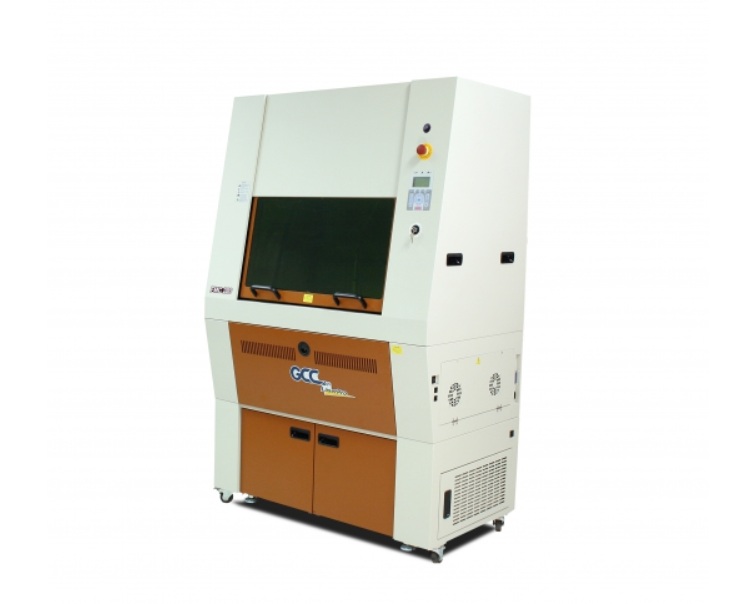

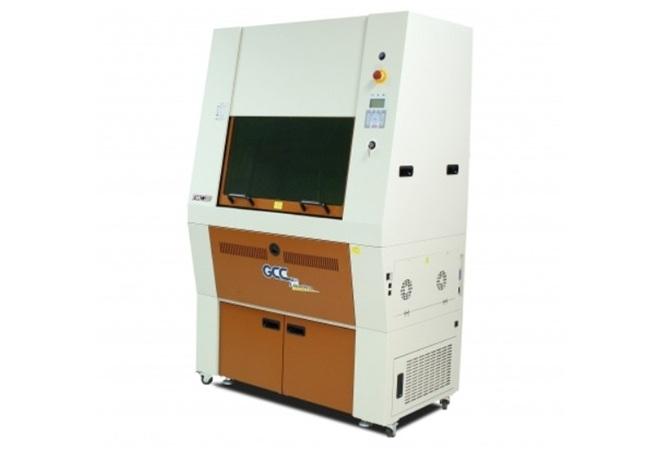

The platform laser cutting machine FMC280 uses a high-stable output fiber laser source with a power of 150W. Combined with precision DC servo motor drive control, it is suitable for cutting delicate graphics and text on metal sheets. FMC280 is probably the industry's first and smallest professional laser cutting machine. Through a user-friendly and simple operating interface, it can quickly achieve the operation requirements of perfect cutting of metal sheets.
Feature
● Extra-long machine life
The FMC280 is not easily affected by external shaking or temperature and humidity. Stable operation and long machine life.
● Minimum maintenance
Stable fiber laser sources have quickly become the first choice for laser engraving or cutting.
● Excellent cutting quality
With fine beam quality, the FMC280 can cut the best effect on metal sheets.
● Lower energy consumption
Compared with other laser cutting machines, the FMC280 cuts quickly and consumes the least energy.
● DC servo motor
Using high-efficiency closed-loop DC servo motors, it provides a precise, fast and reliable moving system.
● Highest CP value
For expensive imported models, the fiber FMC280 has the highest performance/price ratio.
Specification
| Model | FMC 280 |
| Laser Source | 1070nm fiber laser source, 1.5kW peak power |
| Work Area | 28 x 14.5 in. (712 x 370 mm) |
| Dimensions (W x L x H) | 44.3 x 28.3 x 70.8 in. (1125 x 720 x 1800 mm) |
| Cooling | Air Cool |
| Drive | Closed-loop DC Servo Control |
| Speed Control | Adjustable from 0.1 ~ 100% (Up to 16 color-linked speed settings per job) |
| Power Control | Adjustable from 0.1 ~ 100% (Up to 16 color-linked speed settings per job) |
| Distance Accuracy | 0.254 mm or 0.1% of move, whichever is greater |
| Z-Axis Movement | Automatic |
| Engraving Capability | 256-level grayscale image processing capability |
| Resolution(DPI) | 25, 250, 300, 380, 500, 600, 760, 1000, 1500, 3000 |
| Interface | 10 Base-T Ethernet，USB 2.0 |
| Memory | 32MB |
| Display Panel | 4-line LCD panel showing current file name, total working time, laser power, cutting speed, file(s) loaded into memory buffer, setup and diagnostic menus |
| Safety | Class I Laser Product Compliant with EN60825 Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance |
| Operation Voltage | 200-240VAC, 50/ 60Hz Auto Switching, Max. 12A |
* Maximum speed does not equal production capacity, please contact dealers for details.
* The above specifications are subject to change without prior notice.
