Brief

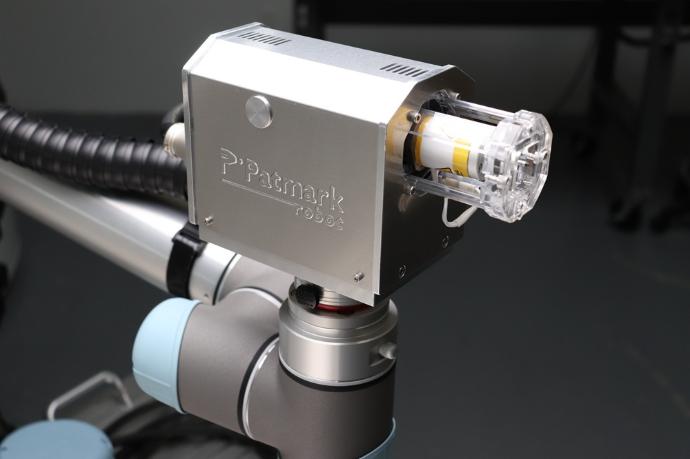

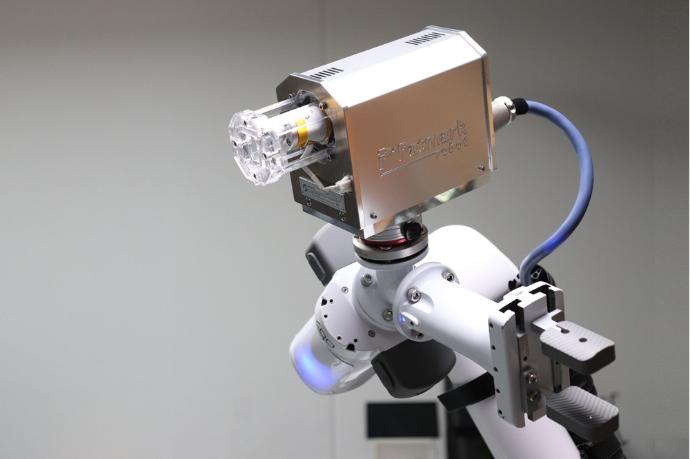

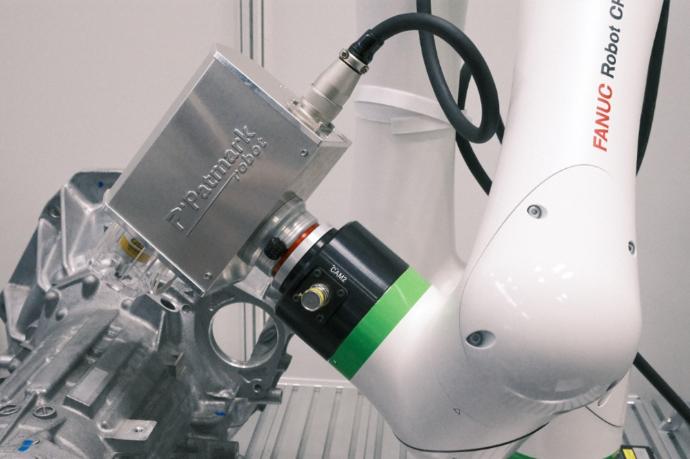

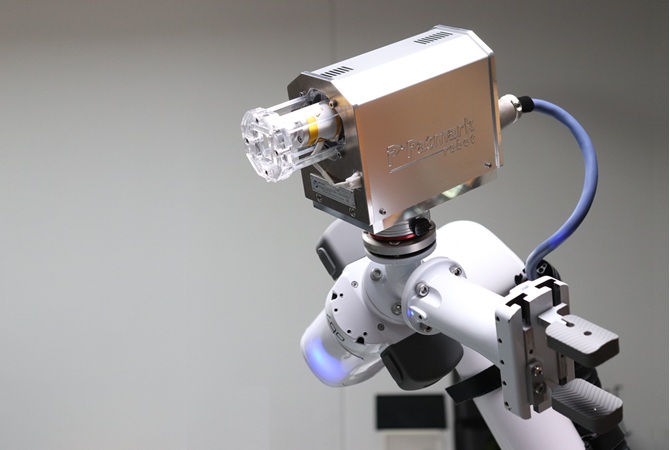

This is an automation-focused marking system that can be easily connected to higher-level controllers such as PLCs via an I/O cable. It can store up to 255 files, eliminating the need for frequent file switching. By changing the tool changer, it can be mounted on most robots currently in use. Its compact, space-saving design makes it ideal not only for robotic applications but also for automated production lines.
Feature
● Lightweight aluminum housing, weighing only 1.8 kg, reduces the load on robotic arms.
● Text, numbers, symbols, 2D codes, automatic serial numbers, dates, and more.
● Compatible with Windows systems, with Wi-Fi or USB data transfer for user-friendly operation.
Appearance

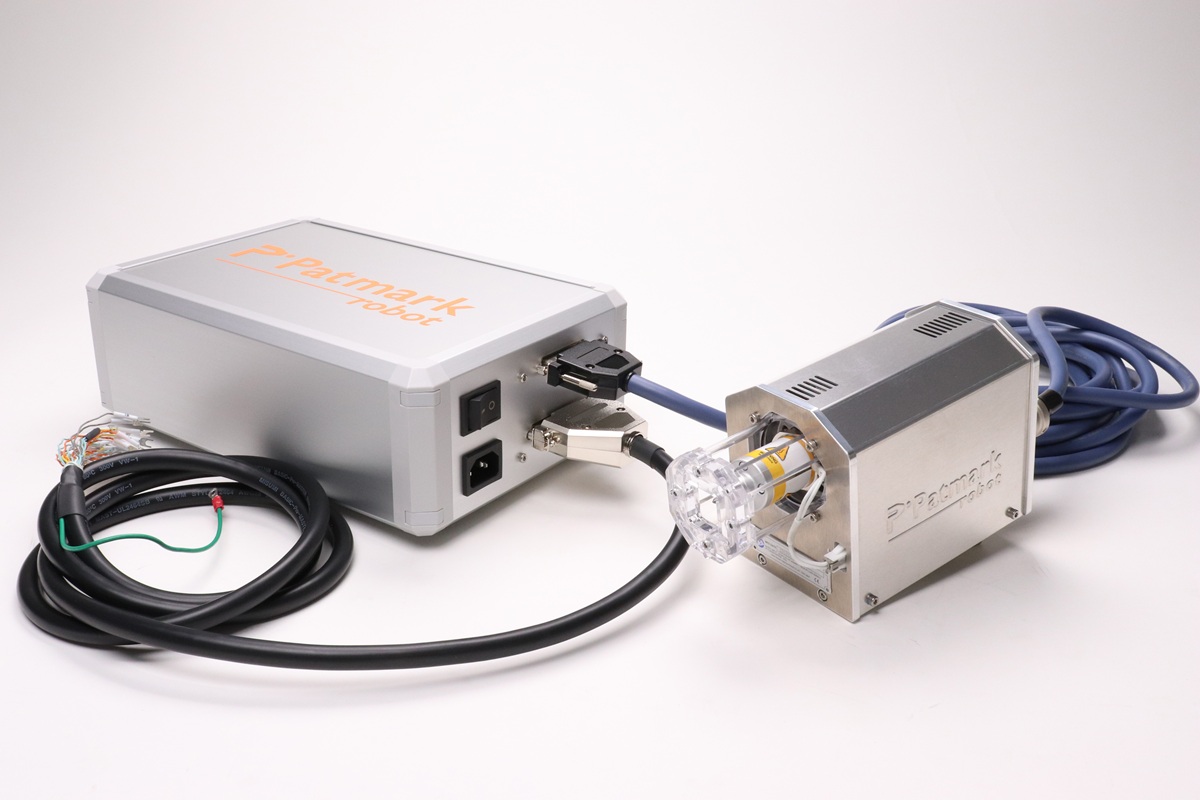

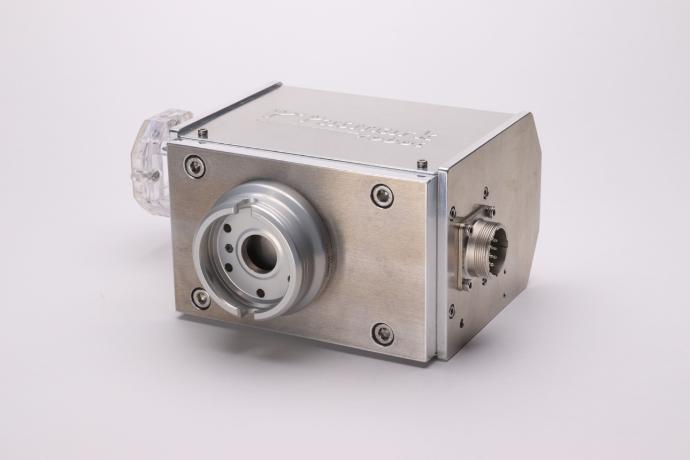

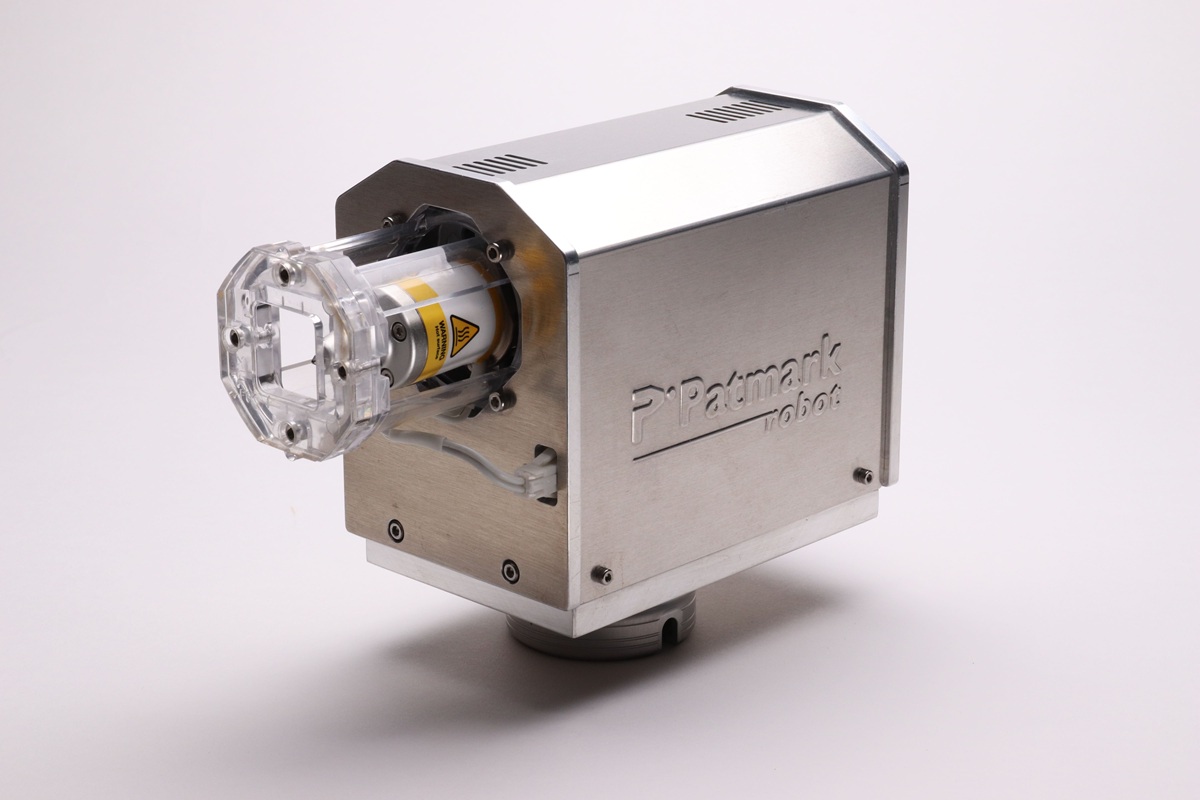

| Front | Rear | Bottom | Power Box |
 |  |  |  |
Specification
| Model | Patmark-Robot |
| Marking Area | 15 × 15mm |
| Power Supply | AC100V～240V, 50/60Hz (120W) |
| Dimension (Marking Head) | 197.5mm×90mm×113mm |
| Dimension (Power Box) | 260mm×210mm×168mm |
| Weight (Marking Head / Power Box) | 1.8kg / 2.0kg |
* Software: iOS、Android APP (standard)、PM Win - free (via Wifi or USB transmission)。
* Applicable materials: metal (hardness up to HRC62), plastic, paper, wood products.
* The above specifications are subject to change without prior notice.
Example
 |  |  |
Quality

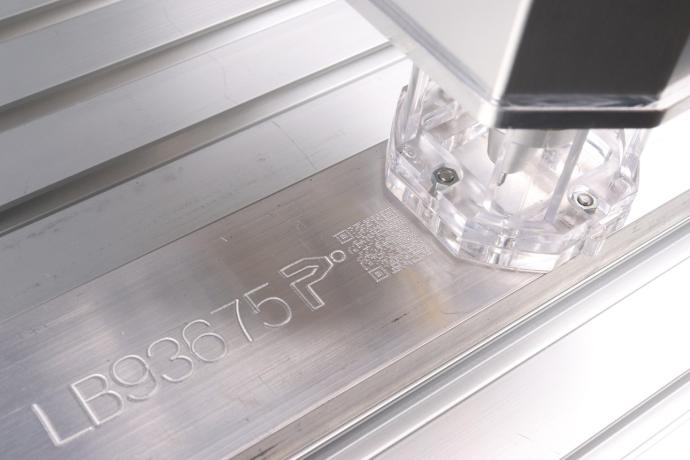

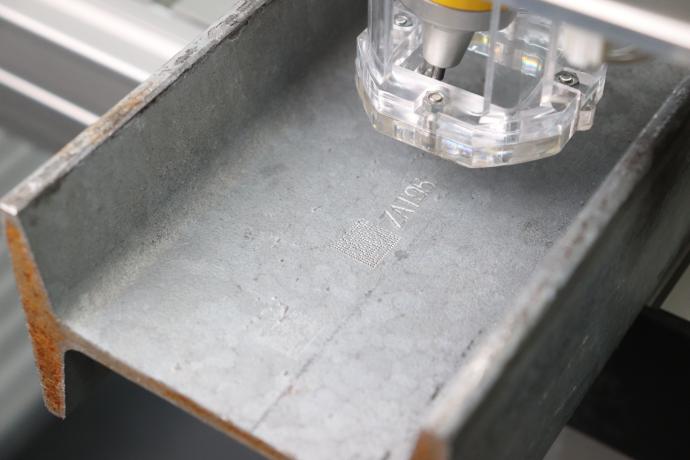

| H-Beam / Wide Flange Beam | Auto Parts | Long Aluminum Materials |
 |  |  |
