Feature

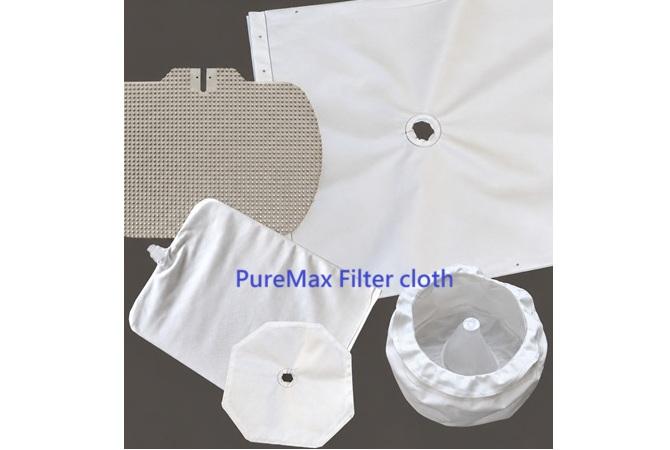

Offering exceptional cost-efficiency alongside a comprehensive selection of materials and dimensions, PureMax® filter cloths are engineered for high-flow solid-liquid separation applications, including filter presses and centrifugal dehydrators. Supported by localized production that ensures fast delivery, as well as tailormade sizes and styles, PureMax® has earned the deep trust of leading industry clients worldwide. For filtration systems dealing with larger particulates, high viscosity, or large flow rates, the highly economical PureMax® filter cloth is your ultimate solution.
Style
※ Type of Yarns
| Type | Monofilament yarn | Multifilament yarn | Staple yarn |
| Photo |  |  |  |
| Performance | • Particularly smooth • Excellent cake release • Low retention capacity of particles • Low risk of blinding | • High tensile strength • Good cake release • Good retention | • Low tensile strength • Large surface for retention of the small particles • High filtration efficiency • High resistance to wear |
※ Weave and Structure of Filter Cloth

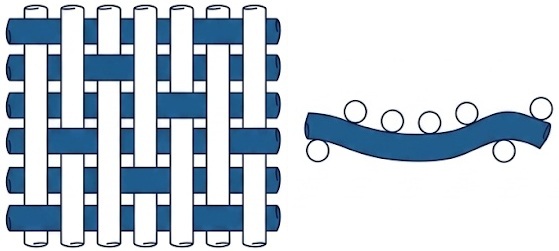

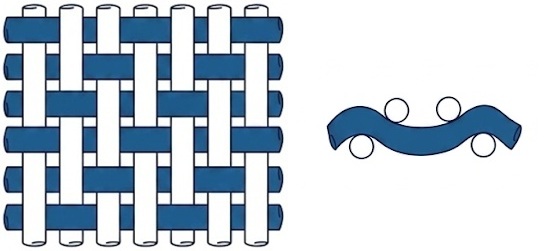

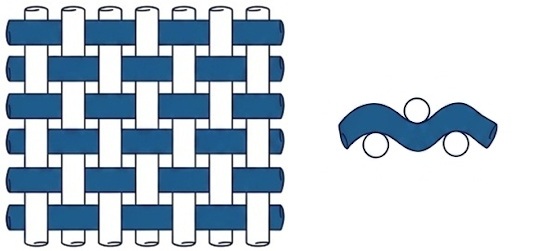

| Type | Plain weave | Twill weave | Sateen weave |
| Photo |  |  |  |
| Feature | • Very simple structure • Same appearance of both sides of fiber • High retention capacity • Low resistance of blinding | • Diagonal structure • Very good mechanical resistance • Good resistance to blinding • Good cake release | • Cake side can be very smooth and flat • Excellent cake release • Medium retention capacity • Very good resistance to blinding |
Specification
※ Frequent used filter cloths
Remarks :
1. Air permeability is tested based on min@200pa
2. All above data is for reference only.
3. We have also blended products containing two fibers for enhanced filtration performance.
4. Please contact us for details.
| Code | Material | Structure | Weight (g/m2) | Air permeability (l/dm2) |
| PE | Polyester | Multifilament yarn | 300 | 100 |
| 700 | 30 | |||
| 850 | 20 | |||
| Staple yarn | 300 | 100 | ||
| 800 | 20 | |||
| 700 | 2 | |||
| PP | Polypropylene | Multifilament yarn | 460 | 100 |
| 530 | 50 | |||
| 600 | 10 | |||
| 610 | 8 | |||
| Monofilament yarn | 305 | 45 | ||
| Staple yarn | 500 | 3 |
1. Air permeability is tested based on min@200pa
2. All above data is for reference only.
3. We have also blended products containing two fibers for enhanced filtration performance.
4. Please contact us for details.
Usage
• Twin cloths with a connection neck for automatic filter presses• Cloths for traditional pressed filter
• Cloths for belt filter
• Cloths for membrane plates
• Cloths for other filter machine
