Brief

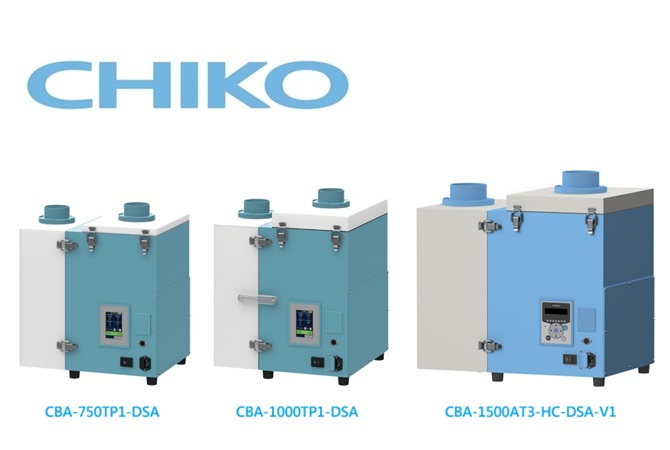

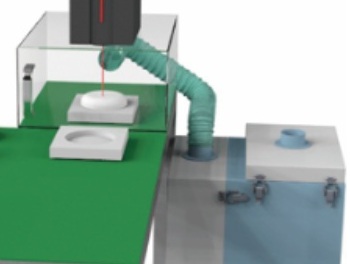

The CHIKO® CBA-1000 Series (CBA-750TP1, CBA-1000TP1, CBA-1500AT3-HC-DSA-V1) is a compact, high-performance solution designed for laser fume extraction.
Equipped with an inert powder coated cassette filter and an automatic vibration cleaning mechanism, it effectively reduces clogging caused by highly adhesive fumes and ensures stable operation. An integrated activated carbon filter further minimizes odors generated during laser processing.
From the space-saving CBA-750 to the high-capacity CBA-1500, the series offers flexible selection to meet various application needs.
Reliable, efficient, and widely adopted, it is the ideal choice for improving air quality in laser manufacturing.
Specification
．CBA-1000 laser series
| Model No. |
CBA-750TP1 | CBA-1000TP1 | CBA-1500AT3-HC-DSA-V1 |
| Power | 480W | 500W | 1140W |
| Voltage | 110V | 110V | 200V |
| Rated current | 6.5A | 7.8A | 11.5A |
| Max. air flow | 1.5m3/min | 2.8m3/min | 4.1m3/min |
| Max. static pressure | 9.5kPa | 9.3~9.5kPa | 15.0kPa |
| Noize | 50~59dB | 47~54dB | 55~58dB |
| Suction port | ø75mm (ø65•ø50•ø38) | ø75mm (ø65•ø50•ø38) | ø100mm (ø75•ø60•ø50•ø38) |
| Dimension (DxWxH) | 424×336×490mm | 405×389×512mm | 537×386×546mm |
| Weight | 29.0kgs | 32.5kgs | 44.5kgs |
| Operating panel | TP1 touch panel | TP1 touch panel | AT3 touch panel |
| Filter (1) | HDF-3030-120-F1-R-P-ZEO | HDF-3535-120-F1-R-P-ZEO | HDF-3535-176-F1-ZEO |
| Filter (2) | HEP-1714-30 | CHF-2030-50-F1 | CHF-2030-50-F1 |
| HEPA Filter (3) | HEP-2720-69 | HEP-3220-69 | HEP-3225-69 |
| Active Carbon Filter (4) | ACC-2720-75 | ACC-3220-100 | ACC-3225-125 |
* For 200V or CE version, model no. and some specifications will be different, CBA-1500 also have UL version, contact us for details.

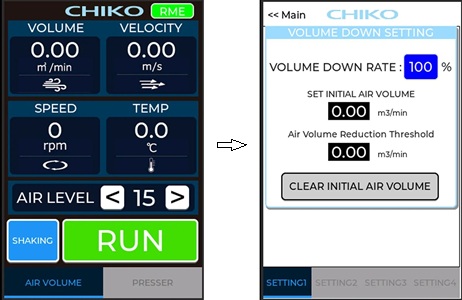

．Operating Touch Panel

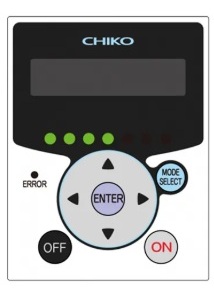

| TP1 Touch panel | AT3 Touch panel |
 |  |
| ** Complete operating functions along with real-time monitoring of airflow and air velocity. * Meet the needs for the application of visual monitoring and real-time data confirmation. | * 7 key visualized parameters. [ External Pressure, Suction Pressure, Differential Pressure , Exhaust Pressure, Motor Speed, Blower Temp., Operating Time ] |
．Optional accessory

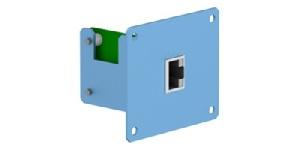

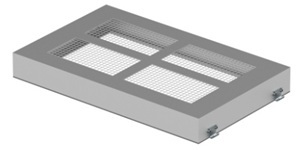

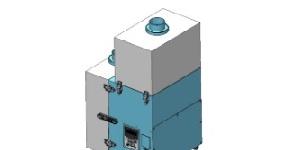

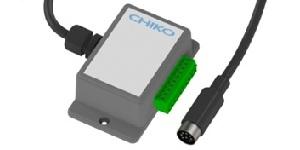

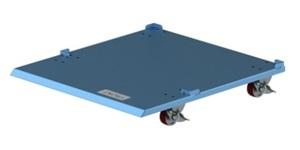

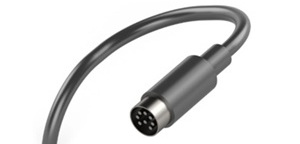

| Remote Control Cable | Ethernet Connectivity | Caster Base | Mesh Exhaust Cover | Active Carbon Cassette | PNP Conversion Adapter |
 |  |  |  |  |  |
| ON/OFF operation Power level adjustment | RS-EN RS-485-AT3-SET | Ensures stability during movement | Open design, lower temp rise | Increased AC to from 3kg to 8kg | Converts NPN to PNP control |
Feature

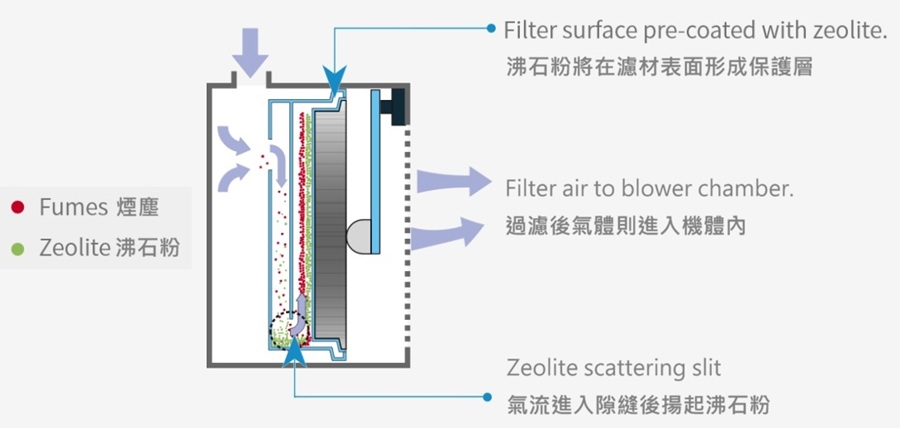

．Special zeolite filtering system for CBA-1000 series
 |
 |
* All specifications are subject to change without notice.
* Please contact us if you have any question about model selection!!

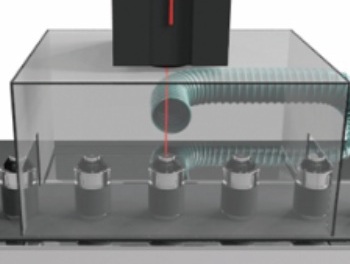

Example

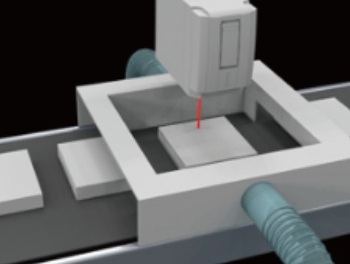

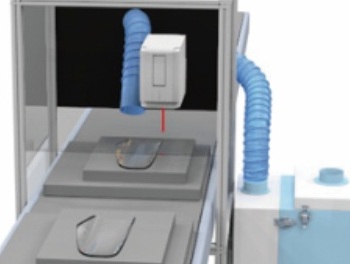

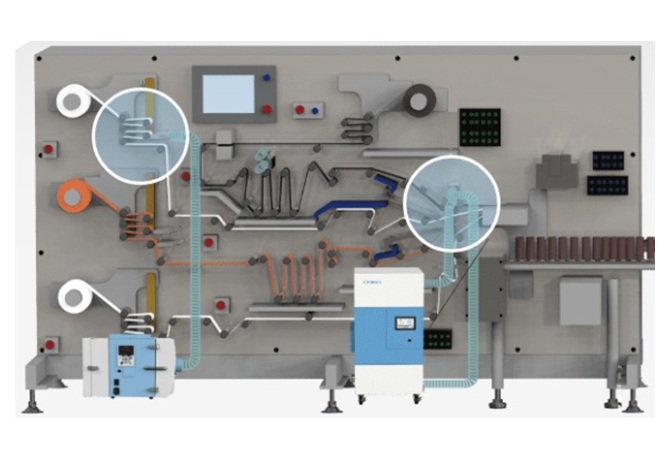

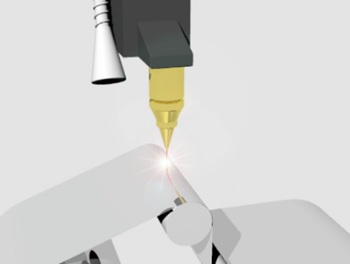

| Laser cutting polarizing plate | Dust during headlight production | Dust when manually marking Duracon |
 |  |  |

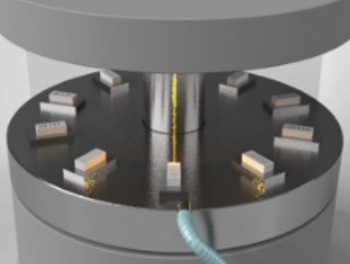

| Laser processing for bearings | Dust when marking resin connector | Removal of dust from silicon isolator |
 |  |  |
