Feature

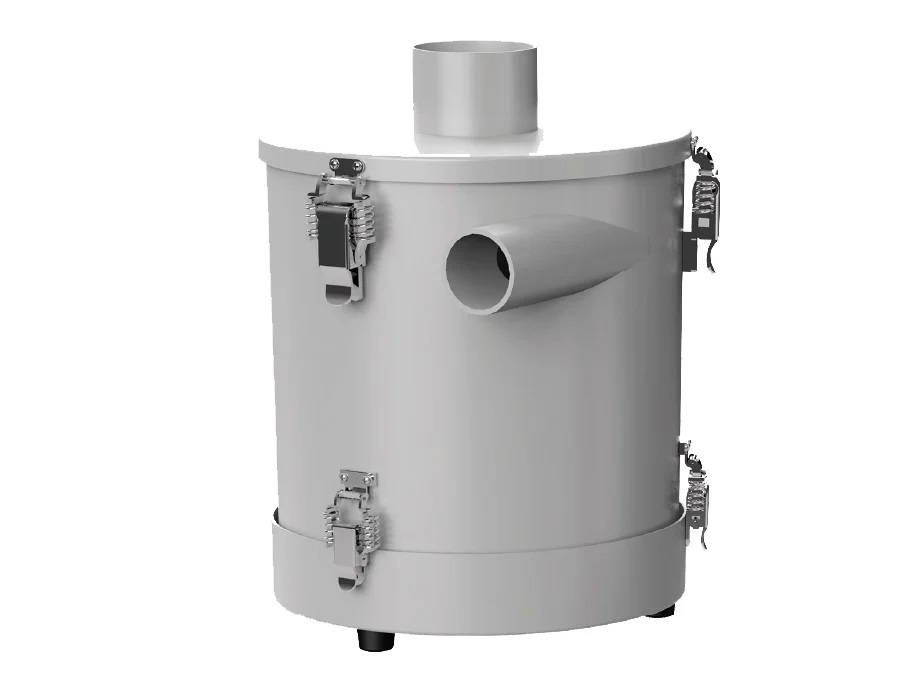

Magiclone dust tank can effectively collect and pre-treat the spatter generated during laser welding and sealing, greatly reducing the risk of fire in dust collection equipment. It can also collect fine dust generated during laser marking or engraving on metal parts and the particle, smoke caused by inkjet printing and laser peeling on product packaging process, effectively extending the service life of the dust collection equipment.
Specification
．Magiclone series
| Item |
MGC-180-02 | MGC-180-20-ORM |
| Air flow | 1.5～3 m3/min | 1.5～3 m3/min |
| In/outlet | ø75mm | ø50/75mm |
| Dust room capacity | 2 liter | 20 liter |
| Demension | D280×W260×H335 | D324×W380×H616 |
| Weight | 5.3kgs | 8.0kgs |
* comply with RoHS standard.
Advantage
• Collection efficiency: 30μm, more than 98% (factory measurement)
Effectively collects spatter and dust generated during laser welding, etc. Fine dust collection: 27-31μm
• Easy maintenance
Made of stainless steel, the entire device can be washed with water, making it very easy to clean.
Accumulated dust can be easily removed without any tools.
• Exquisite design
The dust pre-treatment device is compact in size, does not take up space, and has an exquisite design, so it can be installed anywhere.
