Feature
For volumes of dust collecting, CHIKO® dust cyclone collectors effectively lower down the loading of a dust collector. Through the principle of centrifugal force from a high speed air rotation, CHIKO® single or dual-cyclone separates the particles from the collected dust/smoke and keep them in the cyclone tank for disposal. Working together with CHIKO® dust collectors to maximize your de-dust requirements.
Specification

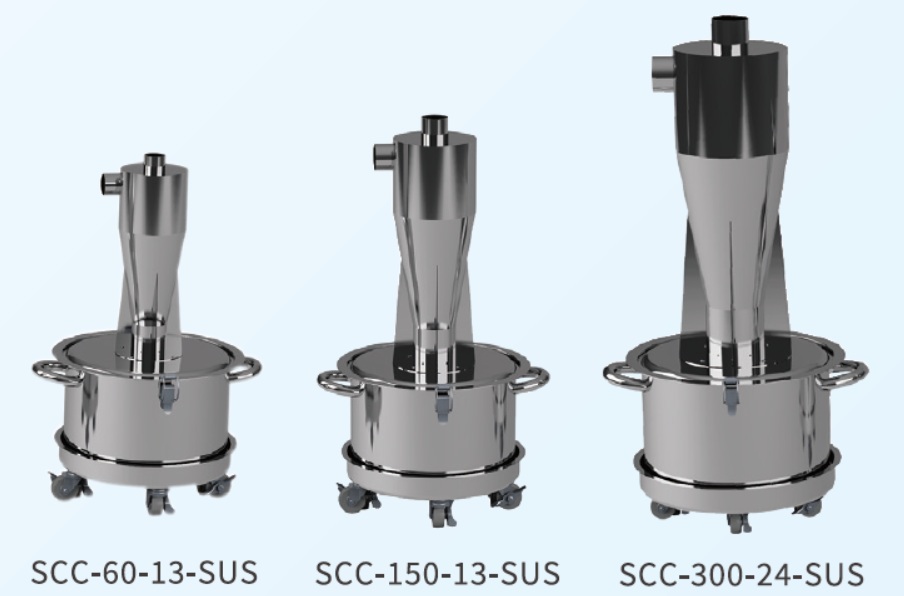

．Cyclone series
| Item |
SCC-60-13-SUS | SCC-150-13-SUS | SCC-300-24-SUS | SCC-60-10 | SCC-150-8 |
| Cyclone material | SS304 | SS304 | SS304 | PC | SS+chrome |
| Tank material | SS316 | SS316 | SS316 | PC | PC |
| Base material | SS304 | SS304 | SS304 | PC | PC |
| Volume | 13 liter | 13 liter | 24 liter | 10 liter | 8 liter |
| Air flow | 0.8~1.5m3/m | 1.5~3m3/m | 3.5~6.5m3/m | 0.8~1.5m3/m | 1.5~3m3/m |
| In/outlet | ø36.5mm | ø50mm | ø75mm | ø36.5mm | ø50/60mm |
| Tank diameter | ø400mm | ø400mm | ø486mm | ø340mm | ø328mm |
| Overall height | 649mm | 737mm | 993mm | 663mm | 695mm |
| Weight | 6.0kgs | 6.7kgs | 11.0kgs | 5.5kgs | 9.0kgs |
* Optional inspection window for SS tank is available.
Advantage
• Vertical design for optimal separation of dust particles.
• Lightweight transparent PC material body, high strength and durability.
• The all stainless steel series is polish treatment, it can greatly reduce dust adhesion.
• The machine body is washable, no consumables and is the most economical.
• The tank comes with a handle and base pulleys for easy moving.
• Various inlet and outlet diameters to fit necessary piping.
• The maximum dust tank up to 24 liters, which is most suitable for high dust contents.
Cyclone Usage
• teeth mold grinding/polishing
• PCB cutting, drilling
• wood working
• tapes or paper cutting, shredding
• pollen / plants / agriculture...
• occasions for volumes of particle/dust
