Overview

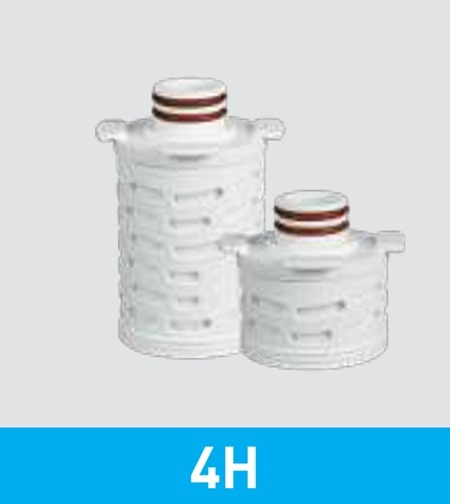

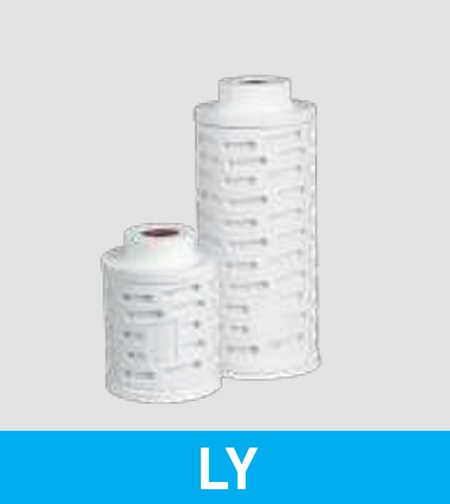

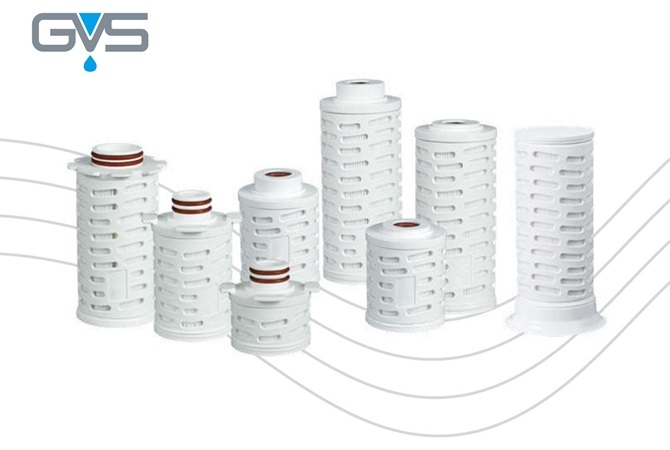

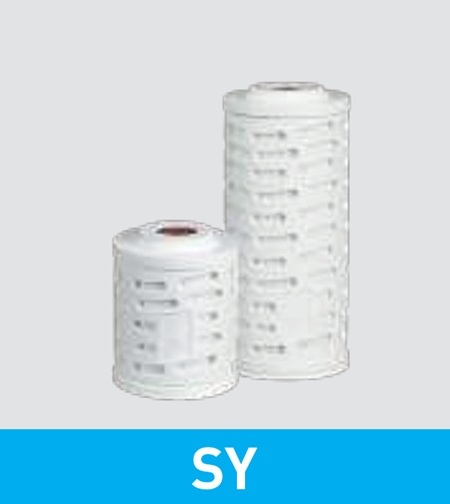

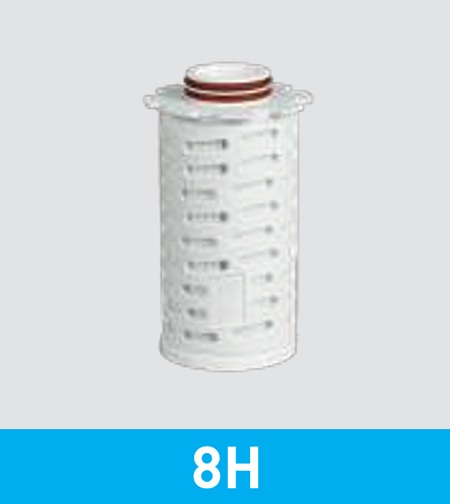

GVS’s range of 56mm OD CJD filter elements are offered in multiple grades of PP, PES, PTFE and PVDF membrane as well as absolute-rated pleated polypropylene depth media.
Advantage
• Polypropylene depth media option offers ratings from 0.2um to 70um with high capacity and low pressure drop.
• Hydrophilic PES and PVDF membrane, Hydrophobic PTFE membranes available in ratings from 0.03 to 1 micron.
• Integrity testing assures consistent, highly retentive performance. High tolerance to repeated cleaning and steaming cycles.
• Products are manufactured in a controlled environment under a quality management system certified to ISO9001.
Usage
| Pharmaceutical, Bio-tech and Ophthalmic products | Semiconductor and Micro-electronic fluids, fine chemicals | R&D process development |
| Small batch production Clarification Bio-burden reduction Final filtration | Cleaners, Solvents Photoresist Developer solutions Process chemicals | Pilot-Scale investigations Facilitates optimizations Scale-up evaluation |
Max. Temperature 80℃
Max. dP (forward) 5 bar@ 50°C
Pressure 3 bar@ 90°C ; (reverse) 0.3 bar @ 90°C
Adaptors
 |  |  |  |
Media: PP, PES, PTFE or PVDF
Support layer: PP
Cage／Core／Cap: PP
Sealing: Silicone, EPDM, FKM
