Feature

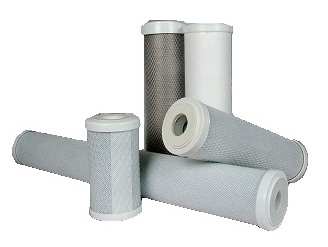

PureMax® activated carbon filter cartridge is made from refined natural coconut-shell activated carbon. Both the materials and the manufacturing process comply with NSF and FDA standards. Designed for general commercial drinking water systems and industrial processes, the activated carbon cartridge effectively adsorbs chlorine, odors, discoloration, and other impurities in water, achieving excellent purification performance.
Advantage
※ Low pressure drop, high dirt-holding capacity, stable flow rate, and long service life.
※ Raw materials and manufacturing processes comply with NSF and FDA standards.
※ Suitable for general commercial drinking water systems, industrial processes, and wastewater recovery applications.
Specification
| Item |
Length | Outer diameter | Initial pressure drop | Life span |
| CBC-05 | 5" (127mm) | 2.5" (63 mm) | 0.12 kg/cm2@ 3LPM | 8000L@ 3LPM |
| CBC-10 | 9.75" (248mm) | 2.5" (63 mm) | 0.11 kg/cm2@ 5LPM | 14000L@ 5LPM |
| CBC-20 | 20" (508mm) | 2.5" (63 mm) | 0.09 kg/cm2@ 5LPM | 22000L@ 5LPM |
| CBC-30 | 30" (762mm) | 2.5" (63 mm) | 0.07 kg/cm2@ 10LPM | 32000L@ 10LPM |
| CBC-40 | 40" (1016mm) | 2.5" (63 mm) | 0.05 kg/cm2@ 20LPM | 45000L@ 20LPM |
| CBB-10 | 10" (254mm) | 4.5" (115 mm) | 0.30 kg/cm2@ 10LPM | 40000L@ 10LPM |
| CBB-20 | 20" (508mm) | 4.5" (115 mm) | 0.25 kg/cm2@ 20LPM | 82000L@ 20LPM |
* CBB means Bigblue(big diameter) type.
* Contact us for more information.
