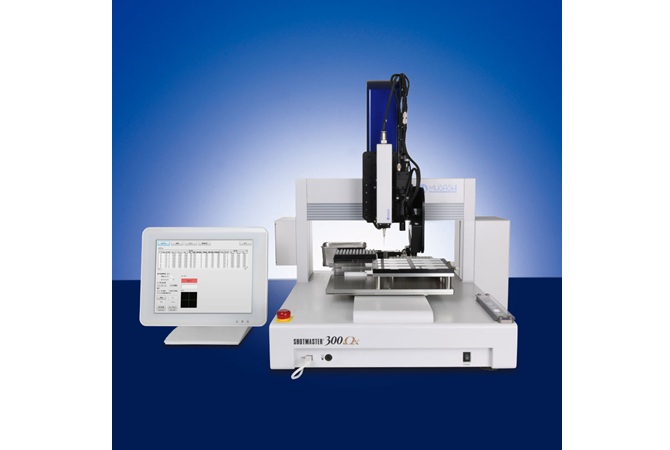

Feature
• Fully automates tip attachment, removal, and dispensing.
• With 10μL tips, dispensing volumes from 0.5 to 10μL are possible.
• Accurately injects into small-diameter inlets.
．Significantly reduces reagent waste and lowers costs
| Dispenses into micro well plates | Dispenses into sample vials | Supports 96-channel pipettes |
 |  |  |
．Other Product Lineup
| Auto Filling and Capping System | Auto Filling and Weighing System |
 |  |
| Integrates “uncapping → filling → capping” into a robotic arm | Instantly measures the weight of liquid dispensed into containers |
 |  |
| Suppresses reagent evaporation during filling. | Enables both filling and volume management with a single system. |
Operation
| 1. Needle Attachment | 2. Reagent Aspiration | 3. Reagent Dispensing | 4. Needle Removal |
 |  |  |  |
1. Before dispensing, configure settings in the software such as source and destination plate layout, number of dispensing wells, dispensing volume, as well as stirring actions and frequency before aspiration and after dispensing.
2. Once input, the entire process — from needle attachment to disposal — is fully automated.
* Compatible with various commercially available microplates (96-well, 384-well).
* Selectable dispensing heads (10μL, 200μL, 1000μL) according to dispensing volume.
* Flexible configuration of source plate (MP) and destination plate (DP) layouts.
Specification
| Dispensing Method | Micropipette Type |
| Types of Dispensing Heads | 10 µL(single) / 200 µL(single、4-channel、8-channel) / 1000 µL(single) |
| Dispensing Volume | 0.5~10 μL (10μL type) / 1.0~200 μL (200 µL type) / 50~1000 μL (1000μL type) |
| Needle attachment | Automatic |
| Needle removal | Automatic |
| Platform Movement Speed*1 | X，Y：0.1~800mm/sec. Z axis：0.1~170mm/sec. |
| Workpiece Capacity*2 | 4 pcs (using microplates) |
| Power | AC100~240V 50/60Hz・200VA |
| Dimension*1,3 | W.400 × D.630.4 × H.562.7mm |
| Weight | 30kg |
*1 Please refer to the Musashi standard desktop platform: SM300DSZ.
*² When using the Musashi SM300DSZ, customization is available. Please contact your distributor for details.
*³ Specifications may vary depending on the dispensing head and workpiece configuration.
※ Product specifications are subject to change without prior notice.
* Contact us now, let us recommend the best solution for your application.
