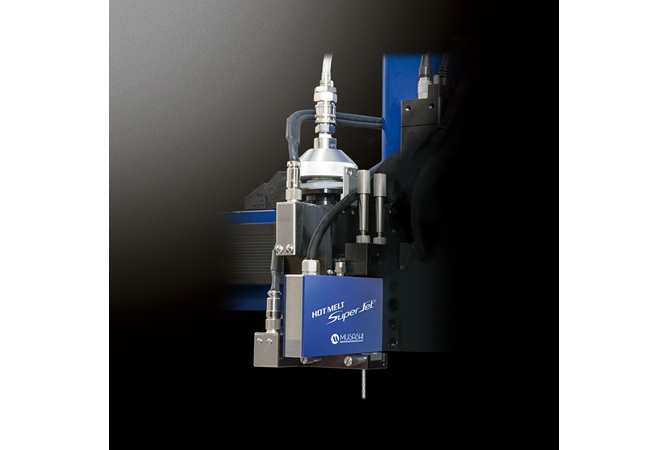

Hotmelt Super Jet Dispenser

Smaller and Faster
3D sealing and Jet Valve dispensing controller

Model: Hotmelt Super Jet Dispenser

Feature

• Complete 3D sealing dispense with stable continuous discharge.
• Maintains consistent coating width even at corners.
• Variable dispensing width at a constant coating speed.
• Exceptional durability of consumable parts.
• Smooth and easy disassembly and cleaning process.

．Achieves complete sealing through stable continuous dispensing.

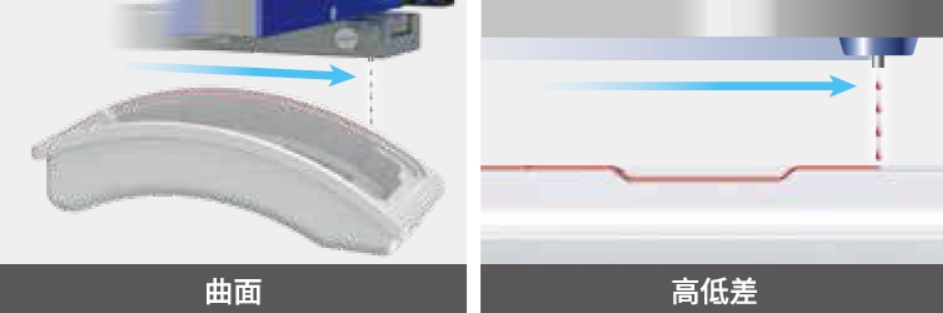

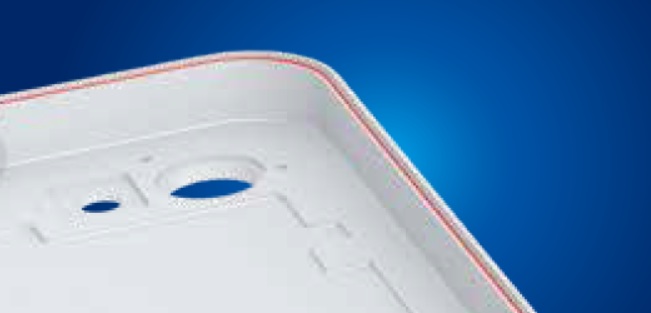

Narrow frame applications	On curved or uneven surfaces

Perfectly performs ultra-fine and continuous dispensing	No need for special height control

．Musashi's Advantages

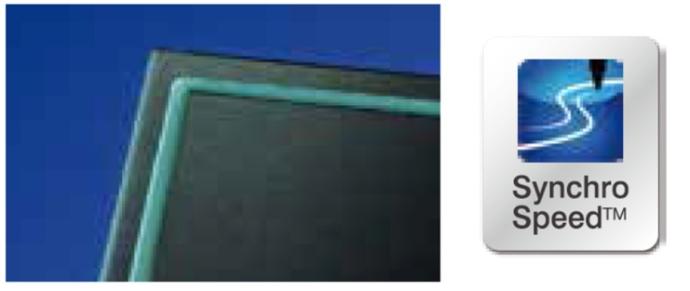

Synchro-Speed Function (Patent Pending)	Automatic Channel Switching Function

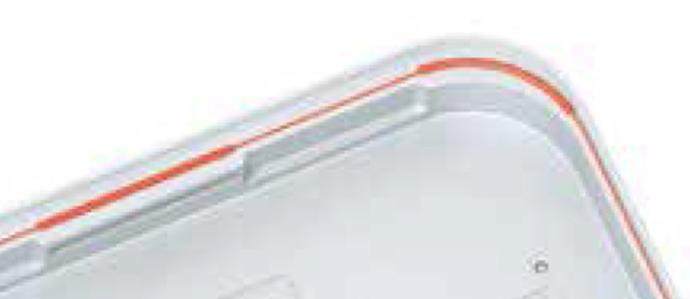

Maintains consistent dispensing width even at corners	Allows adjustable dispensing width at a constant dispensing speed.

Specification

．Non-contact Hot melt Super Jet Dispenser

Model No.	MJET-S-HM
Controller No.	MJET-S-CTR-RM (Jet controller) MJET-S-HM-TCU-02-SET (Temp. controller × 2sets)
Power Supply No. for controller	MJET-S-CTR-RM-PW-A
Dispensing Type	Jet type - Computer assisted digital control system
Suitable Material	PUR hot melt
Syringe	30mL syringe
Temp. control range	Max：180°C
Dispensing Mode	LINE / MAN、LINE / SET、DOT / MAN、DOT / SET
Frequency	300Hz (Max: 500Hz)
Main Feature	Synchro-Speed, Multi-task Processing, JP/EN/CN Display Switching, USB, RS-232C
Number of Channel	100CH
Input Signal	Dispensing, Channel Switching, Dispense Mode Switching
Output Signal	Dispense Complete, Dispensing in Progress, Error, Alarm, Busy, Power On
Voltage	AC100-240V 50/60Hz (Jet controller)、AC100V 50/60Hz (Temp. controller)
Power Consumption	MAX: 75W (Jet controller)、MAX: 9W (Temp. controller)

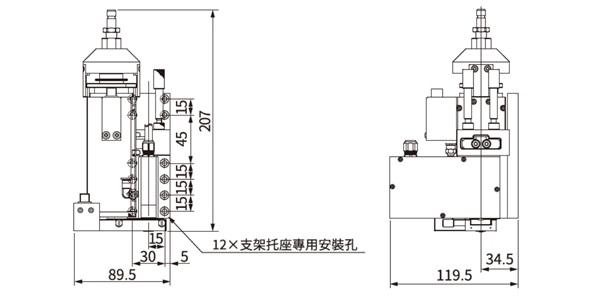

Jet Nozzle Dimension/Weight	W89.5×D119.5×H207mm / 1.5kg

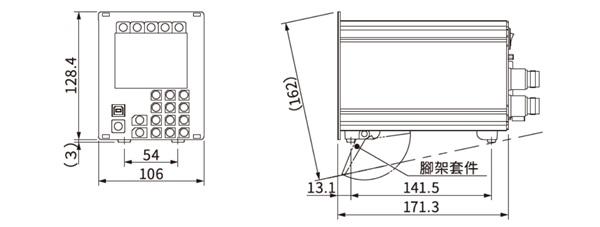

Jet Controller Dimension/Weight	W106×D171.3×H128.4mm / 1.6kg

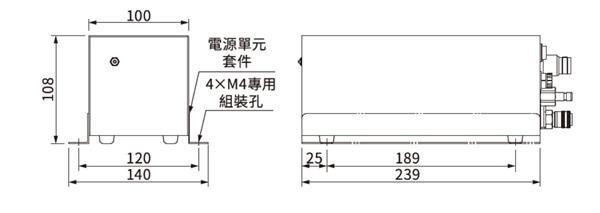

Power Supply Dimension/Weight	W140×D239×H108mm / 2.0kg

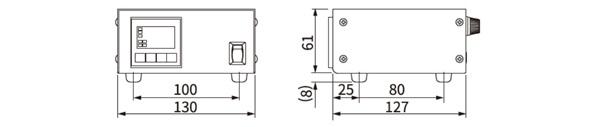

Temp. Controller Dimension/Weight	W130×D127×H69mm / 1040g
