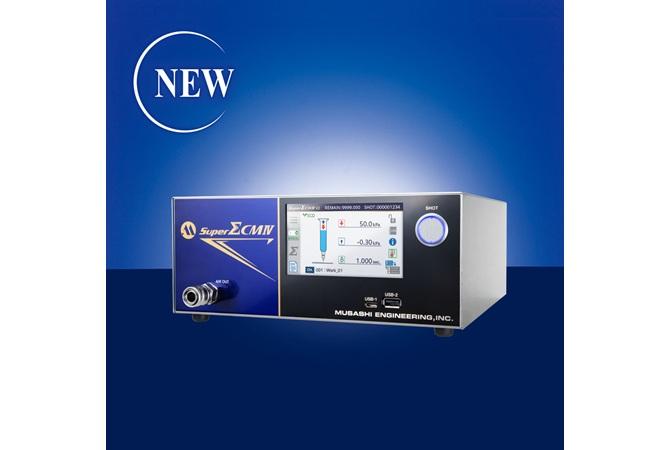

Japan Musashi Super Σ CMⅣ Series – Full Digital Control Dispenser, with the overwhelming World’s No.1 standard, the Super Σ CMⅣ once again sets the pinnacle of air-pulse dispensing technology. Now equipped with a 4.3-inch touch panel for improved operability, and with a 30% reduction in body size compared to previous models, it achieves true compactness and lightweight design. In addition, the integration of eco functions—such as reducing syringe residue, lowering power and compressed air consumption—marks an industry first.
Feature
• Revolution of the Σ® 3 major functions ⇒ The pinnacle of Air Pulse dispenser.
• Environment Compliance ⇒ ECO mode, Sleep mode.
• Productio Management ⇒ Operation history / Error log, Dispensing pressure motoring, Self diagnostic function.
• Smart Factory Integration ⇒ Network connection compatible, Temperature control linkage.
Specification
．Full Digital Controlled Dispenser - Super Σ CMⅣ
| Dispensing Method | Air pulse |
| Control System | Microcomputer-controlled electric/pneumatic system |
| Air Pressure Control Circuit | Air pulse stabilization circuit (PATENTED) |
| Dispensing Modes | Timed, manual |
| Dispensing Pressure Adjustment Range*1 | 30.0 ~ 500.0 kPa or 5.0 ~ 200.0 kPa |
| Dispensing Time Setting Range | 0.001 ~ 9999.999 seconds |
| Vacuum Pressure Setting Range | 0.00 ~ -5.00 kPa |
| Main Feature | Automatic pressure compensation, drip prevention, liquid level warning, α & δ compensation, Remaining air volume display correction, Vacuum pressure calibration, Dispense counter, Interval dispensing, Dispensing condition calibration, Auto-increment, Auto slope, Quick jetting, Date & time*2, Operation history log, Dispensing pressure monitoring, Self-diagnosis, ECO mode, Sleep mode, I/O function assignment, Password lock, Solenoid valve failure detection, Supply air pressure failure detection, Exhaust failure detection, Vacuum pressure failure detection, Channel copy, Parameter backup |
| Number of Channel | 400CH |
| II/O Signal Connector Ratings | D-Sub 25-pin, 24 V, ≤10 mA |
| External Inputs (Opto-coupler) | Dispense, Channel switching, Dispensing mode switching, Channel selection, Dispense enable (Optional functions: channel preset, channel stepping, sleep, counter reset, other assignable functions) |
| External Outputs (Open Collector) | Power ON, Ready (standby), Dispensing in progress, Dispense cycle in progress, Remaining material warning, Solenoid valve alarm, Error (Optional functions: dispense complete, alarm, pressure switching in progress, auto-increment complete, other assignable functions) |
| Power Supply*3 | ACAT-4 dedicated connector, e-CON (3-pin socket) |
| Rated Voltage & Frequency | DC24V ±10% |
| Power Consumption | 26W |
| Applicable Environment (Indoor Use Only) | Operating temperature: 15~35 °C, Humidity: 30~75% (non-condensing) |
| Dimension / Weight | W250×D250×H108mm / 4.0kg |
| Compliance Standards | EU RoHS2, CE Marking (EMC Directive) |
| Optional Accessories | AC power adapter (ACAT-4), manual switch, foot switch, various connection cables, etc. |
*1 : Dispensing pressure adjustment range may vary depending on model. Please contact us for details.
*2 : Date and time are stored by an internal coin-type lithium battery.
*3 : AC adapter is not included. Requires separate purchase of ACAT-4 adapter or use of a SELV power supply compliant with CE-marked LVD standards (compatible connector: e-CON 3-pin).
Σ® 3 Functions
． Glue dispensing total solution
| 1. Automatic Correction of Volume Reduction |  |
| 2. Automatic Vacuum Correction |  |
| 3. Automatic Low Liquid Remaining Alarm |  |
．Effectively solves unstable dispensing, production interruptions due to material shortages, and defects caused by dripping or air bubbles!
* Contact us for more information.
