Brief

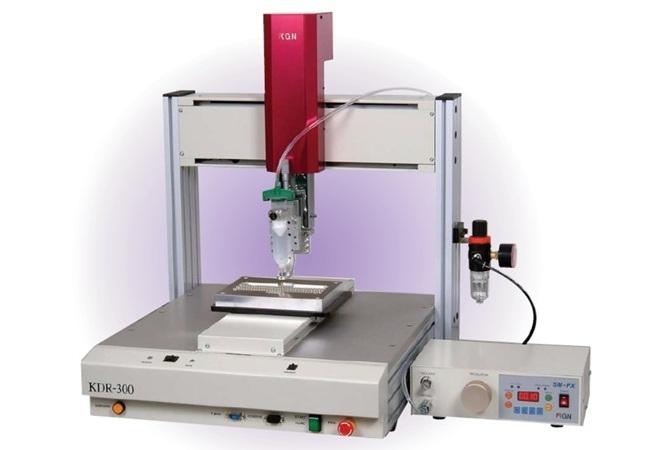

Whether it is plastic, metal, glass or paper and other material surfaces, the automatic dispensing machine can accurately apply glue dots, glue lines or glue rings to ensure high-quality bonding and sealing effects. This fast and consistent dispensing operation greatly improves production efficiency, so it is widely used in many industries such as automotive manufacturing, electronics manufacturing, medical equipment production, aerospace, etc. It is an indispensable automated machine in modern manufacturing and assembly processes.
Feature
* The smallest machine size and weight within the same operating range.
* Y-axis has good load capacity, up to 13kgs at a moving speed of 500mm/sec.
* Chinese interface, easy to learn and understand.
* Adopt convection fan, equipped with dust screen and filter cotton, the base plate has good heat dissipation and can operate for a long time.
* The working platform is fully covered, so the internal parts are not easily dirty or damaged.
* Automatic control components can be easily added, making it easy to match with automated production lines.
．Specification
| Working range | 300 x 300 x 100mm |
| Max. loading | Y:13kgs / Z:3kgs |
| Moving speed | X/Y: 0.1~800mm/sec, Z:320mm/sec. CP max 200mm/sec. |
| Analytical capability (repeatability) | 0.01mm (+/- 0.02mm) |
| Program memory capacity | Robot: 10 programs / T-Box: 20 programs |
| Each program capacity | 8.000 points |
| Program display mode | T-Box LCD |
| Motor system | 5-phase step motor |
| Working environment | Temp.: 5~40℃ / Humidity: 20~90% |
| Weight | 35kgs |
| Standard Accessories | Optional Accessories |
| -Standard work tray (KDR-WB300) - Power input line - 36pin I/O signal terminal - DC output terminal - Additional power output cable - Operation Manual | - Teaching Box - Z-axis precision fine-tuning fixture - Dispensing valve jig (KDR-Jig-2, 5, 6) - Pilot screw pump special fixture - Dispensing signal transmission line - Glue valve fixing bracket |
．Layout
．Examples
* Contact us for more information.
