Brief
The automatic dispensing machine is a device that discharges a certain amount of fluid, corresponding to the use needs of various production processes. Combined with controllers, glue cartridges, needles, dispensing valves, pressure vessels and other related accessories, the most correct application system can be selected to meet various usage needs.
Feature
| Type |

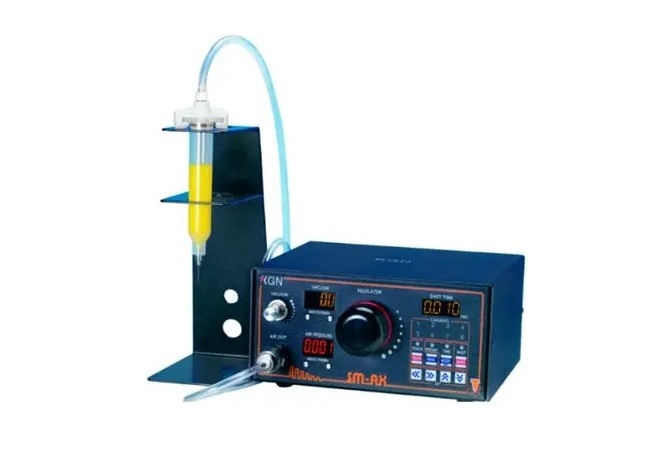

SM-AX | SM-EX2 | RM-PX | |
| Control | Electronic/pneumatic | Electronic/pneumatic | Peristaltic | |
| Voltage | DC24V (with conversion plug) | DC24V (with conversion plug) | AC110V/AC220V、50/60Hz | |
| Power consumption | max 17W | max 17W | max 40VA | |
| Air source | max 0.99MPa | max 0.99MPa | — | |
| Discharge pressure setting | 0.01~0.70MPa | 0.05~0.69MPa | changeable (max120r.p.m.) | |
| Discharge time setting | 0.010~9.999sec. (8 memories) | 0.010~9.999sec. | 0.01~9.99sec. | |
| Motion | Time mode (metered shot) Steady mode (continuous shot) | Time mode (metered shot) Steady mode (continuous shot) | Auto mode / Steady mode | |
| Display | LED display of positive and negative pressure | LEDD display of positive and negative pressure | LED Digital display | |
| Input signal | N.O. contact input with capacity of 20mA or more | N.O. contact input with capacity of 20mA or more | Foot switch or no-voltage N.O. contact input | |
| Output the signal | No-voltage N.O. contact output Load capacity AC250V, 3A/DC30V | No-voltage N.O. contact output Load capacity AC250V, 3A/DC30V | Open collector (DC24V, Max200mA) | |
| I/O port ON/OFF (input) | Input voltage DC10~30V, "ON" current 3.5mA or more, "OFF" current 1mA or less | Input voltage DC10~30V, "ON" current 3.5mA or more, "OFF" current 1mA or less | — | |
| I/O port MODE/WORKING (output) | No-voltage contact: load capacity DC30V, 20mA | No-voltage contact: load capacity DC30V, 20mA | — | |
| Vacuum function | Built-in negative pressure generating mechanism | Built-in negative pressure generating mechanism | — | |
| Working temperature | 5~40℃ | 5~40℃ | — | |
| Dimension (WxDxH) | 184x159x88 mm | 184x159x78 mm | 203x139x84 mm | |
| Weight | 1.6kg | 1.23kg | 2.3kg | |
| Feature | * Positive and negative pressure are displayed digitally * Vacuum suction device to prevent liquid dripping * Teaching dispensing settings Provides complete PLC connection function * With eight memory functions Dispensing time real-time adjustment function | * Vacuum suction device to prevent liquid dripping * Teaching dispensing settings * Provides complete PLC connection function * Digital control panel * Dispensing time real-time adjustment function * With warning function | * Digital panel design (5 memory functions) * Easy to learn, saves learning time * Designed for low viscosity materials * The rotator and infusion tube are easy to disassemble |
* The above are the specifications of the standard model. There are also economical and precision models for customers to choose from. Welcome to inquire.
．Examples
* Contact us for more information.
Biotechnology
Electronics
Automotive
Adhesive Tech.
