Brief
MarkinBOX series of automatic engraving machines combine compactness and portability, making them suitable for installation in limited spaces or areas. Available in standard desktop or portable form, the MarkinBOX multi-functional device is your best partner from on-site manufacturing work to automated production lines.
Specification
| Model | MB-3315S | MB-8020S | MB-1010 | MB-2015 |
| Marking Area | 33mm × 15mm | 15mm × 15mm | 80mm × 20mm | 200mm × 150mm |
| Cable length | 3M | 3M | 2M | 2M |
| Head dimensions (WxDxH) | 116x73x190mm | 173x83x214mm | 200x217.5x228mm | 208x269x249mm |
| Head weight | 1.5kg | 2.1kg | 4.5kg | 6.3kg |
| Tool and post dimensions (WxDxH) | 220x300x573mm | 220x300x573mm | 220x300x573mm | 310x370x544mm |
| Tool and post weight | 7kg | 7kg | 7kg | 10.7kg |
● Specification of control (model: MB 20S)
| Power | AC100~240V 50/60Hz |
| Dimension/Weight | W66 x D144 x H217mm / 1.4kg |
| Communication | USB / RS232C / WiFi / LAN |
| I/O pin | Input 12 points / Output 8 points; store 255 files |
* Applicable materials: iOS, Android APP (standard), PM Win - free of charge.
* Applicable materials: metal (hardness up to HRC62), plastic, paper, wood products.
* The above specifications are subject to change without prior notice.
Feature
● Direct link between installation space and manufacturing cost

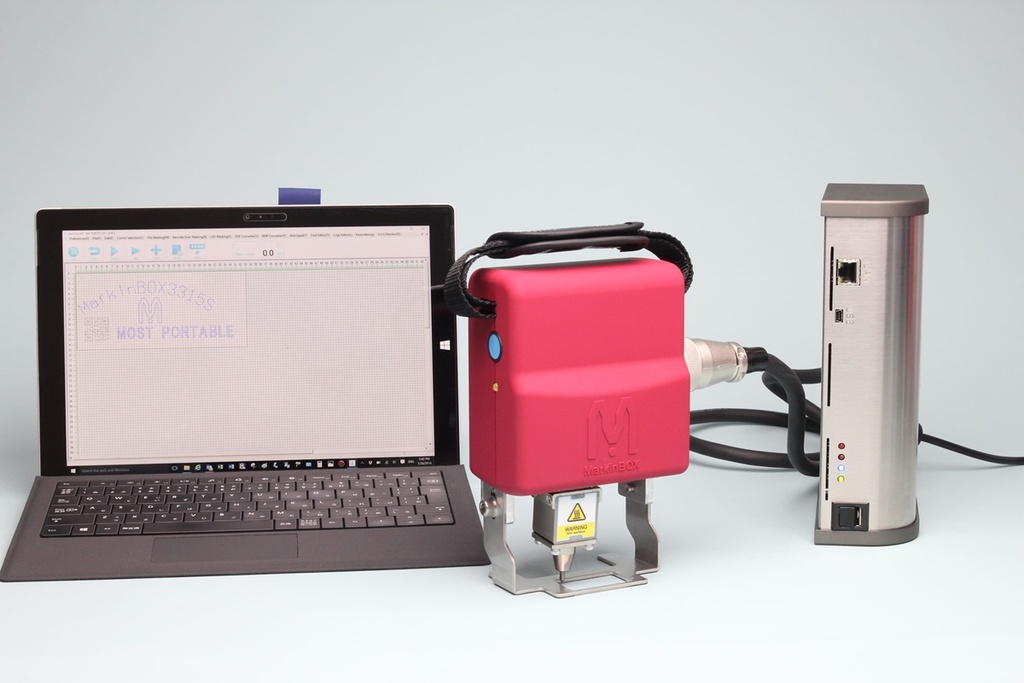

MB-3315S combines compactness and portability for limited installation areas.
● Portability and operating range requirements
MB-8020S maintains portability while having a marking area that is approximately 2.5 times wider than MB3315S, making it suitable for marking a car's VIN number.
● Standard stand desktop model also facilitates automation
The square marking area of MB-1010 allows for marking of more diverse text graphics and logos.
● Wider working area
MB-2015 has the widest marking range in the MarkinBOX series. Arranging multiple workpieces can achieve a more efficient marking process.
