Feature
INCA® fireproof sheets are made of materials that have undergone special fireproofing treatment and are easy to cut and assemble. When used with firestop putty, firestop sealant or other fireproof materials, it can effectively prevent the spread of flames and heat.
Specification
．FP series
| Item |

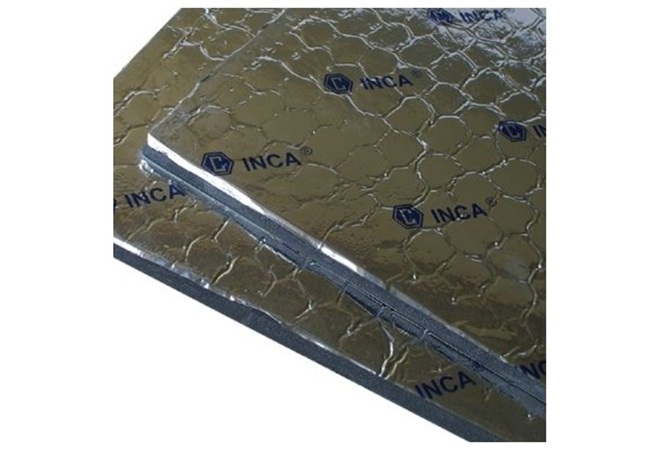

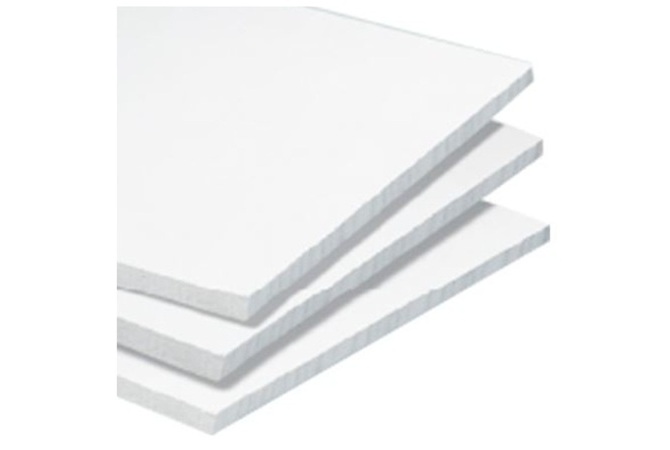

FP-02 | FP-03 | FP-04+ |
| Product name | Composite firestop sheet | Inorganic fiber firestop sheet | Multi-layer composite firestop sheet |
| Size | 90x90cm | 100x60cm | 90x90cm |
| Thickness | 7.7±1.3mm | 25mm | ≥2mm |
| Density | – | 330±50g/cm3
| – |
| Color | – | White | – |
| Temp. resistance | – | 1260°C (max.) | – |
| Expansion ratio | 5~10 times | – | ≥10 times |
| Certificate - CNS | 15814-1 Two-hour Type B test | 15814-1 Two-hour Type A& B test | 14514 Three hours fire protection |
| Certificate - UL | 1479 Two-hour F Rating test | 1479 Three hours fire protection | 1479 Three hours fire protection |
| Other certificates | FM approved, ASTM E662, GB23864 | FM approved, ASTM E662 | FM approved, ASTM E662, GB23864 |
| Advantages | *Easy to cut and assemble, suitable for large openings *Expands when exposed to fire and produces a carbon layer to prevent the flame from spreading *Stable material, long service life, no special maintenance required | *Easy to cut and assemble, suitable for general through openings *Excellent ablation resistance *Stable material, long service life, no need for special maintenance | *Easy to assemble, suitable for large, regular openings *High fire resistance used with mineral wool, rock wool or ceramic fiber filling |
* Welcome to contact us ~ Let us recommend the most suitable product for you.
