Explosion-protected dust collection solutions
From compact systems to customized configurations

  • Model

This combination does not exist.

Model: Explosion Proof Series
OverviewSpecificationStructureFeatureApp. & Tech.  Related products

Overview

CHIKO® explosion-proof dust collectors are engineered in accordance with the European ATEX Directive and comply with internationally recognized explosion protection standards. Since communication and control systems are particularly susceptible to electrostatic discharge, which can become a potential ignition source for combustible dust explosions, CHIKO incorporates certified explosion-protection components into its safety-compliant designs to further enhance overall explosion protection performance.

With rigorous engineering, advanced safety mechanisms, and compliance with international explosion protection standards, CHIKO explosion proof dust collector series provides reliable protection for personnel, equipment, and production environments while ensuring safe and dependable operation.

Specification

．Explosion-Proof Dust Collector

Model No.
 CHR-1200D
 CHP-1200D-JA
CMP-4000D-V
Frequency
50Hz
60Hz50Hz60Hz50Hz
Power
1100W1270W1300W1600W4000W
Voltage380-420V 3phase
440-480V 3phase200V 3phase200V 3phase
380V 3phase
Rated current
2.3A
2.3A4.3A5.2A
6.7A
Max. air flow
2.1m3/min
2.5m3/min2.2m3/min2.7m3/min
50.0m3/min
Max. static pressure
17 kPa ​⁣​
15 kPa ​⁣​
3.4kPa
Noize
56~57dB58~62dB59~61dB61~65dB
83~88dB
Suction port
ø75mm (65A Tri-Clamp)
ø75mm (65A Tri-Clamp)
ø175mm
Dedust function
Shaking lever
Shaking lever
 Pulsed air (119L/cycle)
Dimension (DxWxH)
623×710×717mm
623×710×717mm
 1108×1179×1795mm
Weight
102kg102kg
418kg
Filter cartridge (1)
HDF-3535-120-ZEO-DC
HDF-3535-120-ZEO-DC
 CS-200-500-75P-R-DC
Filtering area
1.2M2
1.2M2
3.0M2 × 6pcs
Filtering efficiency0.3μm@99.31％
0.3μm@99.31％ 0.3μm@99.31％
Certification
ATEX
ATEX: Control panelIECEx、ATEX

Remarks:
* CHR-1200D and CHR-1200D-JA feature identical dimensions and external appearance.
* The CHR-1200D is fully ATEX certified, whereas the CHR-1200D-JA is ATEX certified for its control panel only.
* The standard CMP-4000D-V is equipped with a Pulse Jet system and carries full ATEX certification.
* The CMP-4000D-V with IECEx certification is configured without the Pulse Jet system.
* All specifications are subject to change without prior notice.

Structure

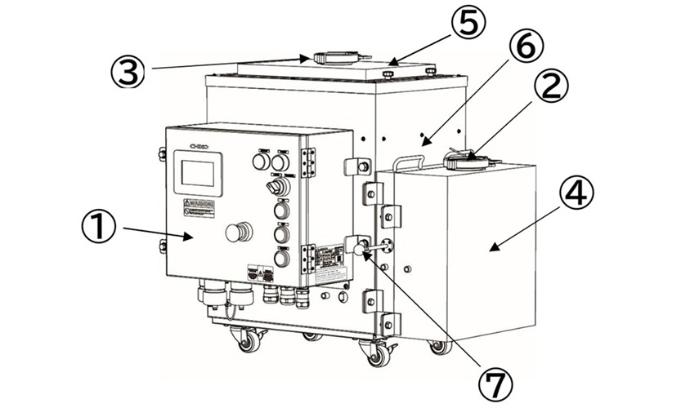

．CHR-1200D & CHR-1200D-JA


Number, Name & Function
① Control panel : Controls ON/OFF operation, switching to remote control, etc.
② Suction port : Suction of dust.
③ Exhaust port : Connect the exhaust duct.
④ Filter unit : Houses the primary and secondary filters.
⑤ Exhaust filter lid : Open to inspect or replace the exhaust filter and activated carbon filter.
⑥ Blower room : Houses the blower.
⑦ Shaking lever : Shake of the dust by moving the lever to tap the filter inside the main unit.

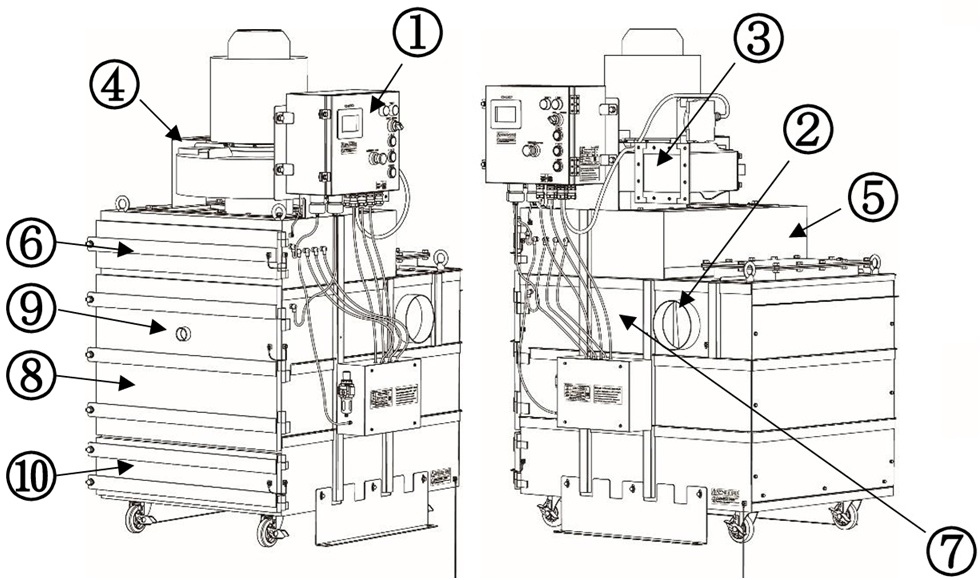

．CMP-4000D-V


Number, Name & Function
① Control panel : Controls ON/OFF operation, switching to remote control, etc.
② Suction port : Suction of dust.
③ Exhaust port : Connect the exhaust duct.
④ Fan : The air is sucked and collected.
⑤ Pulse chamber : Pulse jet valve and air tank are stored.
⑥ Pulse chamber inspection door : Open and close during pulse inspection.
⑦ Primary filter chamber : Houses the primary filter.
⑧ Primary filter inspection door :  Inspection/replacement for filters.
⑨ Inspection port : Use for internal inspection.
⑩ Dust tray inspection door : Open to inspect or clean the collected dust.

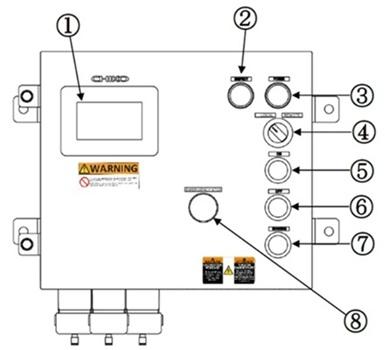

．Control Panel (CHR-1200D & CMP-4000D-V)


Number, Name & Function
① Display panel : Displays suction pressure and filter differential pressure.
② Inspection lamp (blue) : Lights up when there is an error such as leakage or clogging.
③ Power lamp (White) : Lights up when the power cable is connected and energized.
④ Remote control select switch : Operation can be switched to remote control mode.
⑤ ON button : Press the button to start operation.
⑥ OFF button : Press the button to stop the operation.
⑦ Shaking/pulse button : Begin dust shaking with shaking/pulses.
⑧ Emergency stop button : Shuts off all electrical systems when emergency,


Feature

．CHIKO Explosion protected dust collector

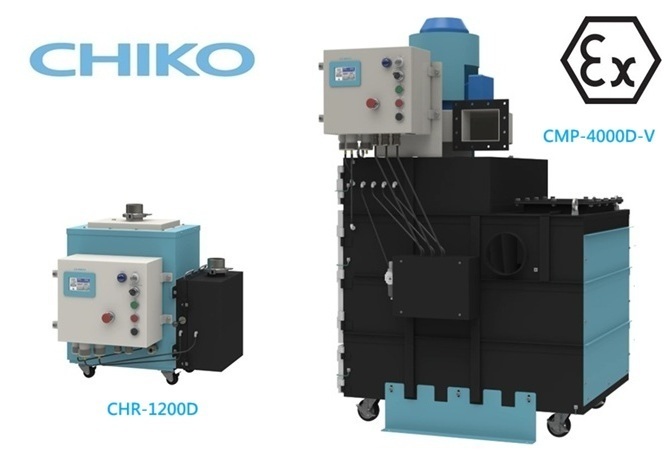

CHR-1200D
CMP-4000D-V
．Ultra-compact design ideal for installations with limited space
．Equipped with a standard inert powder cassette filter for
effective collection of soldering fumes and laser fumes
．Detachable filter unit enables maintenance and
filter replacement in a dedicated service area
．CHR-1200D-AJ provides a cost-effective option with
ATEX certified control panel only
．The first IECEx-certified dust collector in Japan
．Extra high-capacity airflow design for demanding large-scale
dust collection applications
．Pulse jet cleaning system minimizes filter clogging during
continuous operation and extends filter service life
．Optional explosion vent and flameless vent solutions
available for enhanced explosion protection
* For applications with unique process conditions or requirements for maintenance in a dedicated service area, CHIKO offers optimized product configurations and solutions tailored to your process requirements, installation environment, and dust collection capacity needs.

* Welcome to Contact us!!
