Feature

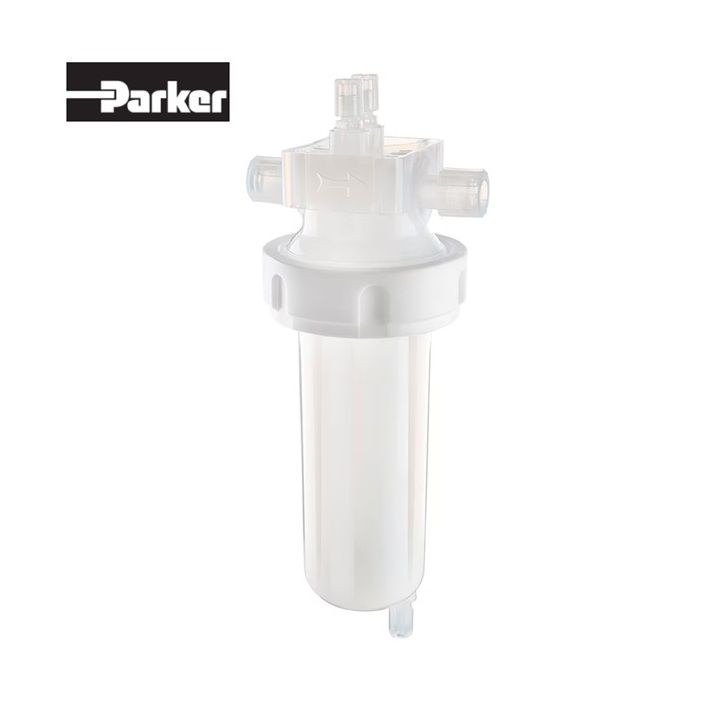

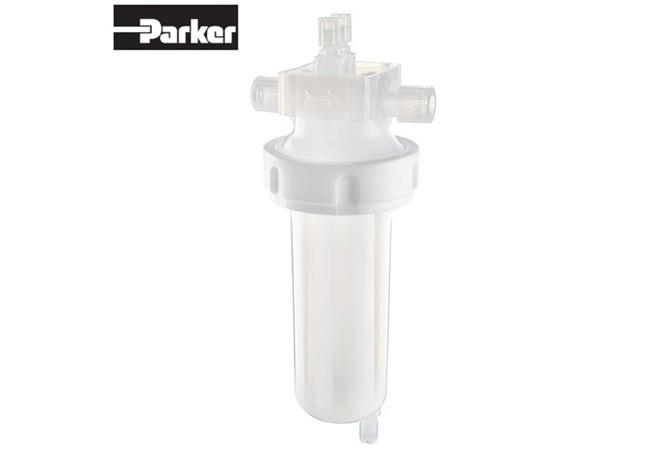

PARKER® FPA PLUS filters are designed for microelectronics applications with maximum chemical resistance and high purity. This filter vessel is constructed of PFA (wetted parts) and PTFE (non-wetted parts) for compatibility with the most aggressive chemicals. High-purity construction materials and clean-room packaging ensure a high level of cleanliness. The vessel consists of a fixed filter cartridge and a locking ring, providing a reliable seal and easy replacement of the filter element.
Specification
※ PFA PLUS filter vessel
| Usage | liquid filtration for electronic and chemical processes |
| Purpose | clarification, pre-filtration, refining |
| Length | 10"、20" |
| structure material | PFA（wetted part）and PTFE（non-wetted part ) |
| O-ring material | FEP Encapsulated Viton® |
| Max. operating pressure | 0.3 MPa 100°C, 0.75 MPa 25°C |
| Max. operating temp. | 100°C |
