Brief

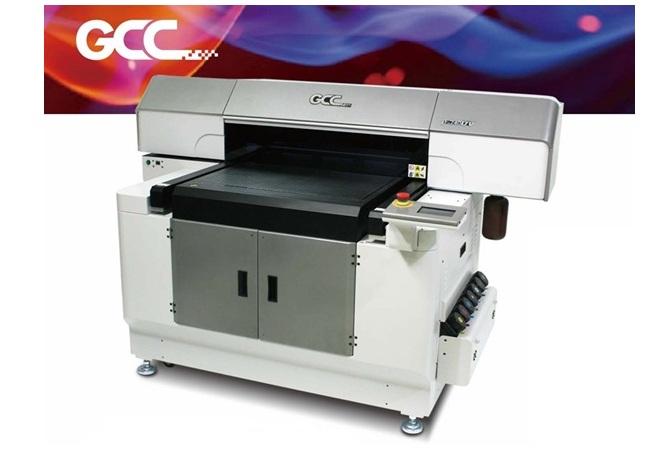

JF-240UV digital inkjet printer has the characteristics of high productivity and high quality, with standard CMYK four-color and optional transparent glossy paint and white ink, automatic lifting platform, intelligent focus lifting system, simple operation interface, and can accept 30cm high printing objects, which increases the convenience of use. In addition to the previous advertising signs and billboard industries, JF-240UV is also committed to the application of customized products, including gifts, decorations, packaging materials, personalized products, etc., to meet the diverse application needs of users.
Specification
| Model | JF-240UV |
| Printing method | On-demand Piezo head |
| Print head (Drop size) | UV printing dedicated printhead, 4pl |
| Printing area | 609.6 x 508 mm (24 x 20 in.) (W x L) |
| Max. media area size | 650 x 550 x 300 mm (W x L x H) |
| Max. media area weight | 15 kg |
| Media height adjustment | AMC™ |
| Speed | Production / Quality / Hi-density : 5.78 / 3.90 / 1.91 m²/hr |
| Ink | UV curable ink 1 liter colors: C/M/Y/K (optional: W/V) |
| Ink curing unit | Dual UV LED lamps |
| Printing resolutions | 1440 x 720dpi、1440 x 1440dpi |
| Distance Accuracy | Error of less than +/-0.3% of distance traveled, or +/- 0.3mm (0.01 in.), whichever is greater |
| Interface | Ethernet 1000BASE-T |
| Operating Environment | 22~30°C、40~60% humidity |
| Operating Voltage | 110 - 240VAC, 50/60HZ |
| Power Consumption - Operating | 115V AC (60HZ) (Max. 270W), 220V AC (50HZ) (Max. 260W) |
| Power Consumption - Stand by | 115V AC (60HZ) (Max. 160W ), 220V AC (50HZ) (Max. 200W ) |
| Dimension | 1760 x 1160 x 1140 mm (W x L x H) |
| Dimension (w/ package) | 2000 x 1300 x 1360 mm (W x L x H) |
| N.W./G.W. | 272 /433Kg |
| Optional | Rotary attachment, Roll to Roll system, Fume Extraction Unit |
* Above specifications are subject to change without prior notice.
Technology
● Advanced SmartMESH™ technology is to produce smooth tonal gradation and exceptional color gamut by applying complex algorithm to ink jetting patterns control. It effectively solves the banding issues and greatly increases image quality.
● Printhead Gap Auto-detection can lower the platform automatically when detecting obstacles blocking the movement of printhead before printing to avoid printhead loss.
● AMC™: the gauges the distance between the print heads and loaded media can be automatically detected and adjusted to the optimized position based on the thickness of the loaded media.
● Motorized Z-axis positioning table provides an easy and precise platform height adjustment by one touch for load elevation.
