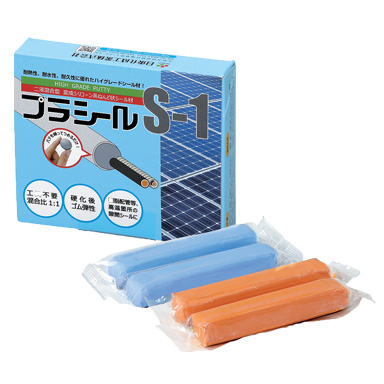

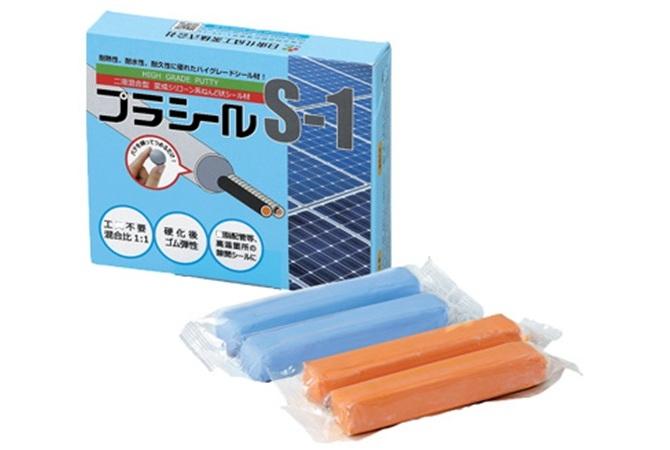

PLASEAL S-1

Sunshine resistant, heat resistant
Made in Japan

Model: S-1

Feature

PLASEAL^® S-1 is made by Japan NITTO chemical industry, high grade putty brand. Two-component modified silicone based elastic putty (hardening type). With excellent heat resistance, IP44 classed waterproof and UL94 V-0 class flame resistance. Best for sealing off around resin piping (hot water plumbing) and sealing for cable penetration of solar power system. It also has good sound insulation effect.

Specification

．PLASEAL S-1

Item	S-1	Test method
Appearance	base(blue)/hardener(orange) => mixed (grey)	Observation
Mixing ratio	1 : 1	Ratio by weight
Gravity	1.7 (mixed)	Convert weight in water
Usable time	8hr.	20℃*100g
Hardening time	48hr.	20℃*100g
Hardness (HDA)	54	JIS K7215 (20℃/48hr.)
Flame resistance	UL94 V-0 level	Fire test of the plastic material
Package	75g+75g/set, 2sets/inner box, 10sets(3kgs)/carton	–

*above inspection data is measured originally, so it does not guarantee as a standardized data.

．Advantages of PLASEAL S-1

*Excelled heat resistance.
*Closely adhered and elastic even after cured.
*Simple and handy workability.
*Water-tightness (IP-44 class).
*High-level flame resistance (UL-94 V-0 class).
*Excellent sound insulation effect.

．Usages

*Most suitable for resin piping.
*Sealing of penetration around resin piping (hot water plumbing).
*Sealing od cable penetration for solar power system, etc.

．How to use
