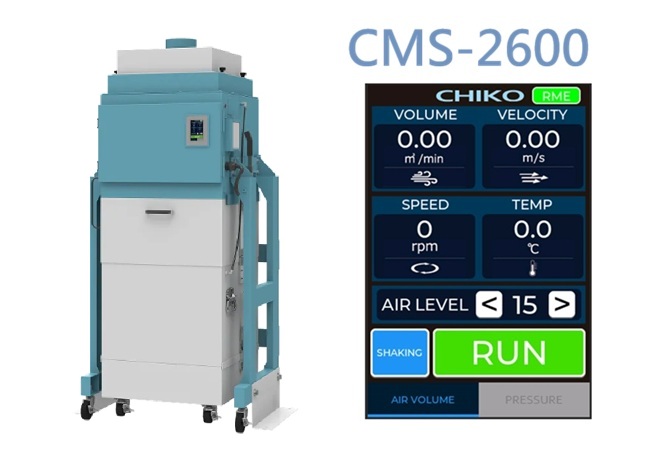

Brief
For the numerous and widespread dust sources commonly found in PCB manufacturing processes and lithium battery production lines, conventional dust collectors are often unable to cope effectively. In response to these applications and demands, CHIKO has developed the most suitable model.
The CMS-2600 is equipped with a new-generation blower, combined with enlarged filtration area PTFE filter cartridges. These filters prevent dust and particulates from accumulating, enabling longer operating hours and extending the overall service life of the machine.
Feature
．High airflow and high static pressure, suitable for a wide range of industrial processes.
．Large filter surface area, enabling stable operation even in environments with high dust concentrations.
．By reducing filtration velocity, it effectively minimizes clogging caused by dust accumulation.
．Collected dust is accumulated in the dust tray, allowing for easy and consolidated disposal.
．The filter chamber is detachable and removable, preventing contamination of the production site.
．High static pressure design maintains airflow performance even with multiple branches.

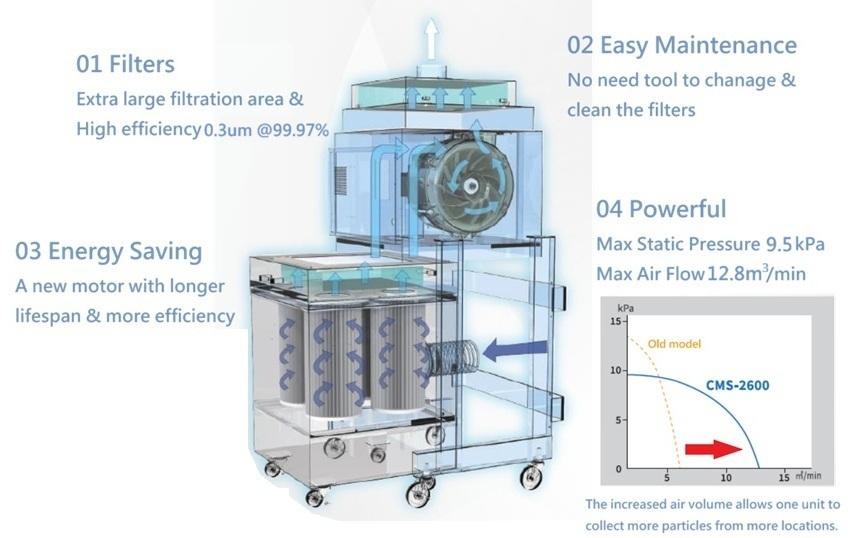

．Structure
．Specification
| Model no. | CMS-2600TP1 | CMS-2600TP1-P* |
| Output | 2600 W | |
| Voltage | single phase 200~230V, 50/60Hz | 3 phase 200~230V, 50/60Hz |
| Current | 11.5A | |
| Max. Airflow | 12.8m3/min | |
| Max. Static Pressure | 9.5kPa | |
| Noize | 54~68dB | |
| Suction Port | Ø100mm (change to Ø75mm, Ø65mm, Ø50mm available) | |
| Size (DxWxH) | 575×674×1358mm | 575×674×1483mm |
| Weight | 130kg | 142kg |
* This model fitted with pulse air backwash function (required air pressure 0.4～0.5MPa).
．Specifications are subject to change without notice.
．Filters
| No. |
Item No. | Type | Feature | Efficiency |
| 1 | CS-170-350-75P-R | filter cartridge (2m2 x 4pcs) | extra large filtration area (total 8m2) | 0.3μ@99.97％ |
| 2 | CHF-3535-70 | ABS frame + PP filter media | protect interior motor | 0.3μ@99％ |
| 3 | HEP-3535-69 | glass fiber HEPA filter | for clean room | 0.3μ@99.97％ |
．Examples

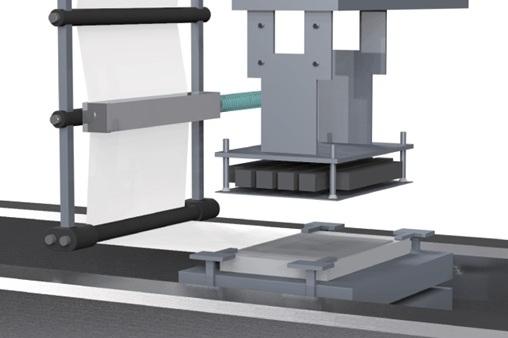

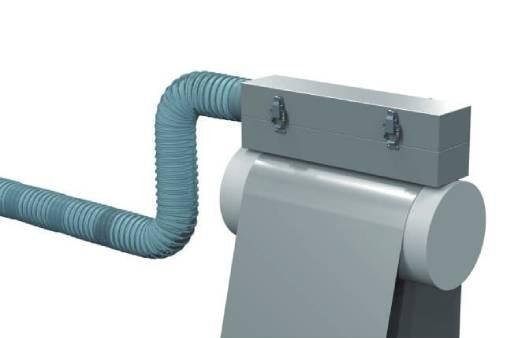

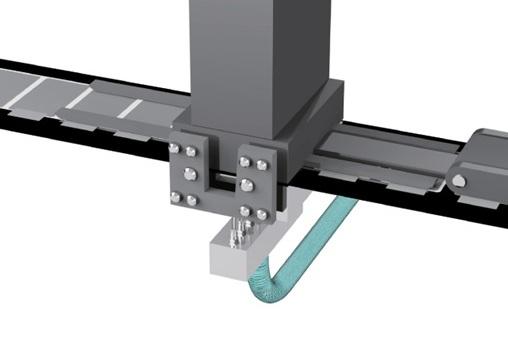

| Removal of surface-adhered dust | Cutting of anode and cathode materials | Stacking |
 |  |  |

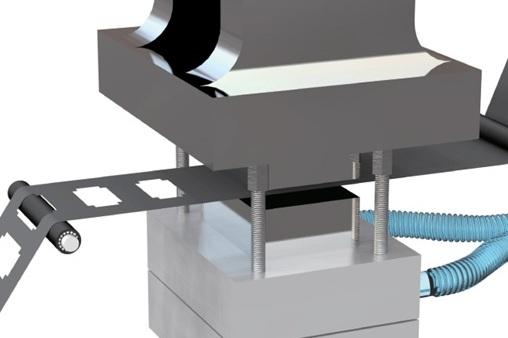

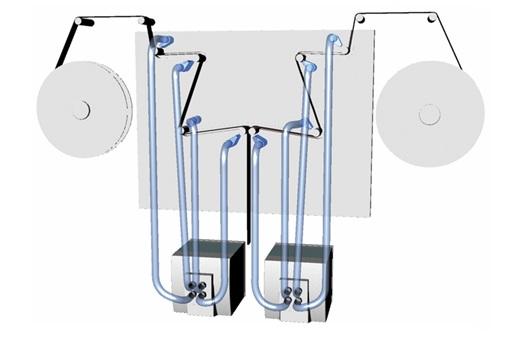

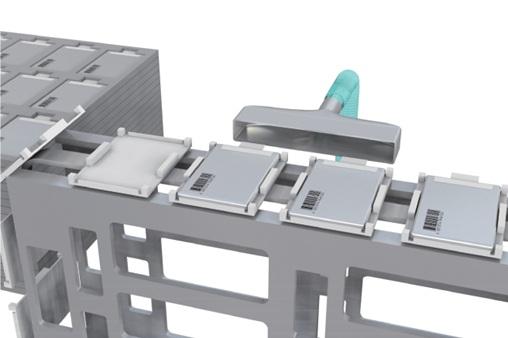

| Conveying | Winding | Punching |
 |  |  |
