Brief
For the numerous and widespread dust sources commonly found in PCB manufacturing processes and lithium battery production lines, conventional dust collectors are often unable to cope effectively. In response to these applications and demands, CHIKO has developed the most suitable model.
The CMS-2600 is equipped with a new-generation blower, combined with enlarged filtration area PTFE filter cartridges. These filters prevent dust and particulates from accumulating, enabling longer operating hours and extending the overall service life of the machine.

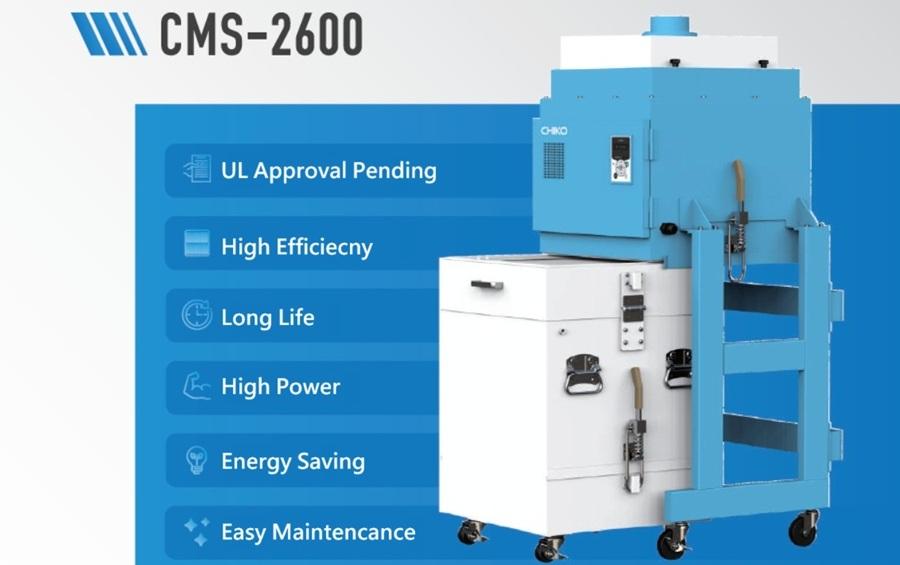

Feature

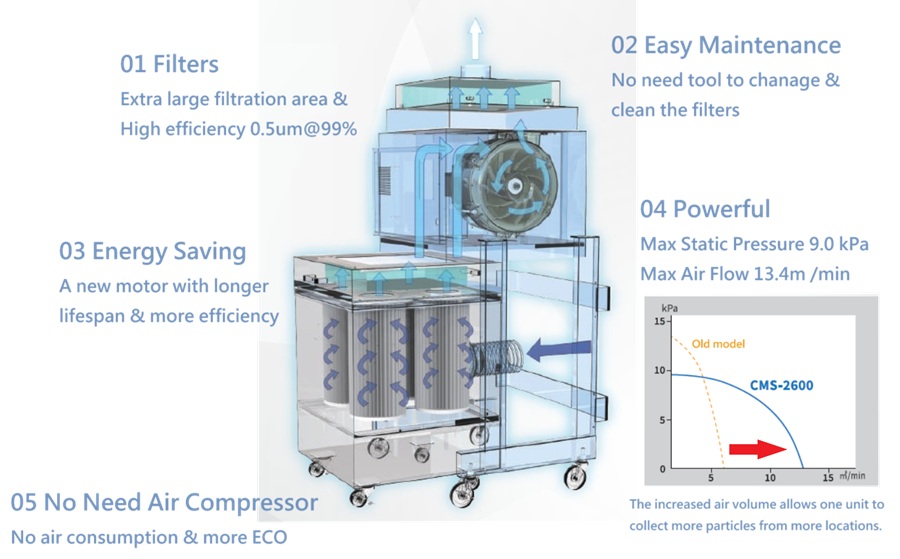

．Structure
．Specification
| Model no. | CMS-2600 |
| Output | 2.2/2.6kW |
| Voltage | 200V 3phase ; 50/60Hz |
| Current | 10A |
| Max. Airflow | 13.4m3/min |
| Max. Static Pressure | 9kPa |
| Noize | Max. 69dB |
| Suction Port | Ø98mm |
| Size (W*D*H) | 567*620*1323mm |
| Weight | 127kg |
| Approval | CE / NRTL |
* This model support CHIKO remote control (remote cable sold separately).
．Examples

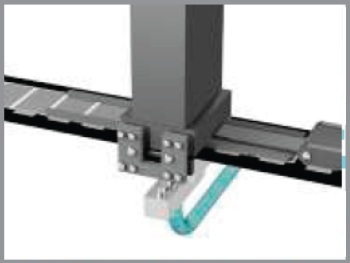

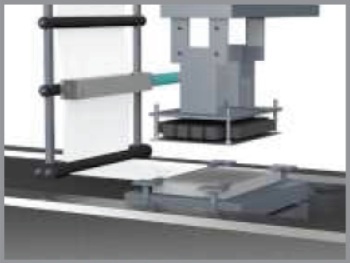

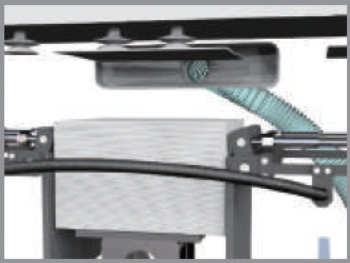

| Removal of surface-adhered dust | Cutting of anode and cathode materials | Stacking |
 |  |  |

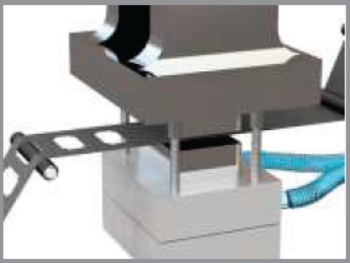

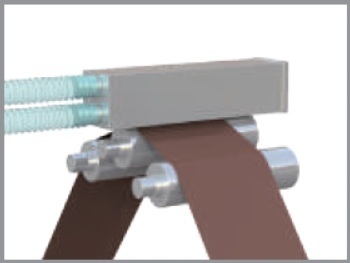

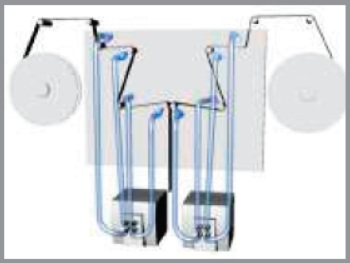

| Conveying | Winding | Punching |
 |  |  |
