Feature
Dust adhering to workpiece surfaces can be effectively removed using a high-pressure micro dust collector. The CBA series offers a comprehensive lineup with power ratings ranging from 500W to a maximum of 1300W. Its control panel, including 7-level power adjustment, automatic filter replacement indicators, and built-in safety protection with automatic shutdown in case of motor overload or abnormal temperature.
Optional multiple suction piping configurations are available to maximize space utilization while significantly reducing installation costs. The CBA series is also NRTL certified, ensuring compliance with U.S. industrial electrical safety standards and approval for operation, allowing seamless integration into your machinery and equipment with confidence.
Engineered with advanced Japanese craftsmanship, the CHIKO CBA series intelligent, compact, high-pressure dust collectors are a reliable choice you can trust.
Specification

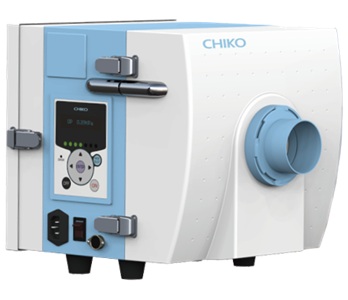

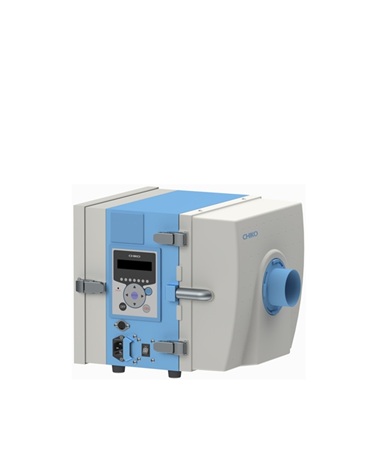

．Compact High Pressure Dust Collector
| Item |
CBA-080AT3-HI | CBA-500AT3-HI | CBA-1200AT3-HI-V1 |
| Power | 500W | 620W | 1200W |
| Rated current | 7.6A | 7.9A | 10.9A |
| Max. air flow | 2.2m3/min | 4.2m3/min | 5.73/min |
| Max. static pressure | 9.3kPa | 9.5kPa | 12.5kPa |
| Noise | 58~70dB | 61~69dB | 60~77dB |
| Suction port | ø65mm (ø50•ø38) | ø75mm (ø65•ø50•ø38) | ø75mm (ø65•ø50•ø38) |
| Dimension (DxWxH) | 340x290x276mm | 452x340x328mm | 537x340x351mm |
| Weight | 10kgs | 17.4kgs | 26.7kgs |
| Voltage | 100-115V | 100-115V | 200-230V |
| Filter(1) | FB-25 | FB-30 | FB-30 |
| Filter(2) | CHF-2525-50 | CHF-3030-50 | CHF-3030-50 |
| Filter(3) | CHF-2525-50 | CHF-3030-50 | HEP-3030-69 |
| Filter(4) | - | - | HEP-1293-34 + PS/150N |
Specification of Filter :
Filter(1) FB: 5-layer structure PP filter bag, efficiency 45μm@95%, temperature resistance 60℃.
Filter(2) CHF: ABS frame + PP pleated media, efficiency 0.3μm@99%, temperature resistance 60℃.
Filter(3)(4) HEP: Aluminum frame + HEPA glassfiber media, efficiency 0.3μm@99.97% , temperature resistance 80℃.
⊙ Accessories

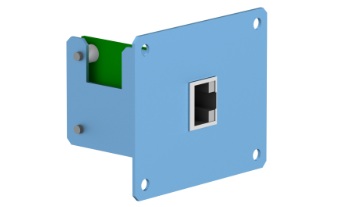

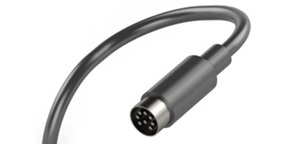

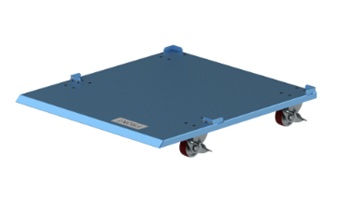

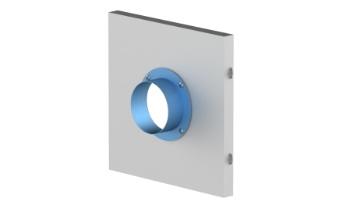

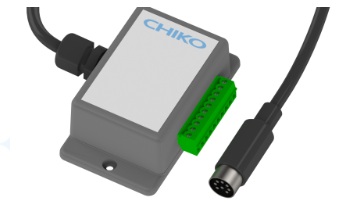

| Remote Control Cable | Ethernet Connectivity | Caster Base | Rear Cover (w/flange) | PNP Converter |
 |  |  |  |  |
| ON/OFF operation Power level adjustment | RS-EN, RS-485-AT3-SET | Ensures stability during movement | Easy vent piping | Converts NPN to PNP control |
* All above specifications are subject to change without notice.
* For other voltage or HEPA filter version, model no. and some specifications will be different, please contact us for details.
Additional
．Special versions

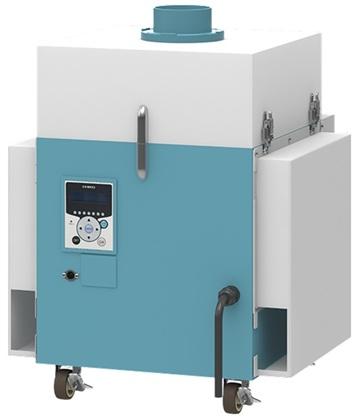

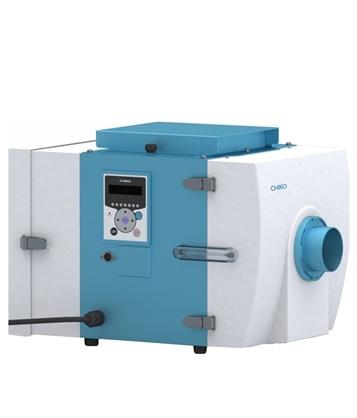

| Item | CBA-1600AT3 | CBA-2400AT3 |
| Photo |  |  |
| Power | 1300W | 1300W x 2 |
| Voltage | 200-240V | 200-240V |
| Rated current | 14.6A | 30.0A |
| Max. air flow | 3.8m3/min | 8.5m3/min |
| Max. static pressure | 21kPa | 20kPa |
| Noise | 63~72dB | 63~72dB |
| Suction port | ø75mm (ø65•ø50•ø38) | ø100mm (ø75•ø65) |
| Dimension (DxWxH) | 537×363×359mm | 530×488×635mm |
| Weight | 27.6kgs | 40kgs |
| Filtering efficiency | 0.3μm@99.97% | 0.3μm@99.97% |
* Please contact us if you have any question about model selection!!
Information
⊙Top selling in Japan
According to the survey results conducted by Japanese market research organization JMR from May 1, 2017 to April 1, 2020.
⊙NRTL Certification - MET mark
According to the certification system established by the U.S. OSHA, products that have passed the NRTL certification mean that they meet the safety requirements for U.S. industrial electrical equipment and have obtained operating permits.
 |
|
| All above CBA series models have been certified by Eurofins MET Laboratories, Inc. in the United States and have obtained the NRTL certification with the MET mark. Please contact your distributor for more information! |
