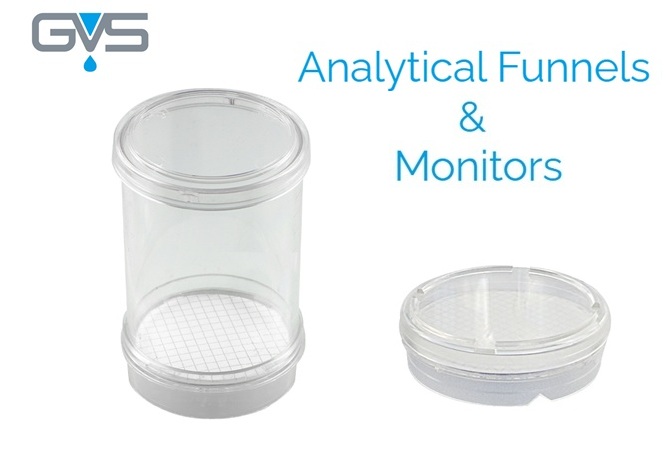

Analytical Funnels & Monitors

Overview

GVS Analytical Funnels and Monitors provide a complete system solution for liquid sample preparation. Each single-use, pre-sterilized filtering unit consists of a measured filter funnel, base, pad, membrane, removable lid, and plug. This integrated design simplifies sample preparation workflows, significantly reduces the risk of cross-contamination, and is suitable for microbiological testing, laboratory analysis, and a wide range of liquid sample filtration applications.

Characteristic

Rapid testing: with no need to sterilize funnels or filter base between samples, testing time can be reduced by up to 70%.

No flaming required: combined filtration unit minimizes the risk of cross-contamination.

All-in-one system: filtration unit easily converts to a Petri dish, which can be labeled and incubated for culturing.

Reduced contamination: single-use materials virtually eliminate cross contamination between funnel and membrane.

Reproducible results: all-in-one filtration unit reduces the chance of external error.

Easy handling: ready-to-use, pre-sterilized monitors are simple to use.

Workflow

．Analytical Funnels

Analytical funnels are ready-to-use 100 ml filtration units with membrane and culturing devices. Each sterile funnel includes a removable NC membrane. After filtration the membrane can be used for a wide range of qualitative and quantitative biological analysis.

Step 1️⃣	Step 2️⃣	Step 3️⃣	Step 4️⃣
Sample filtration	Remove the upper part from the base	Put the base on the membrane lifting device	Transfer the membrane into a petri dish

．Microbiological Monitors

Microbiological Monitors are single use, pre-sterilized filtering units with welded fixed membranes and culturing devices, which are ideal for monitoring contaminants in liquid samples from raw materials to finished products. After the filtration is complete, 2 ml of microbiological media is added and the unit is converted into a petri dish for culturing the contaminants collected.

Step 1️⃣	Step 2️⃣	Step 3️⃣	Step 4️⃣
Sample filtration	Remove the funnel	Add 2 ml of microbiological media	Replace the lid and incubate

Advantage

​✔ Saves up to 70% in time • Ready-to-use • Presterilized
✔ Safety at work • No flaming • Minimizes the risk of cross-contamination
✔ Easy Handling • Ready-to-use filtration unit
