Feature

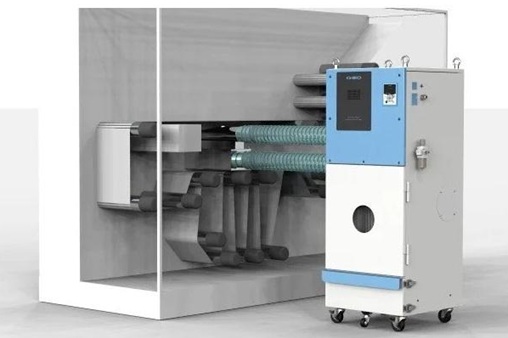

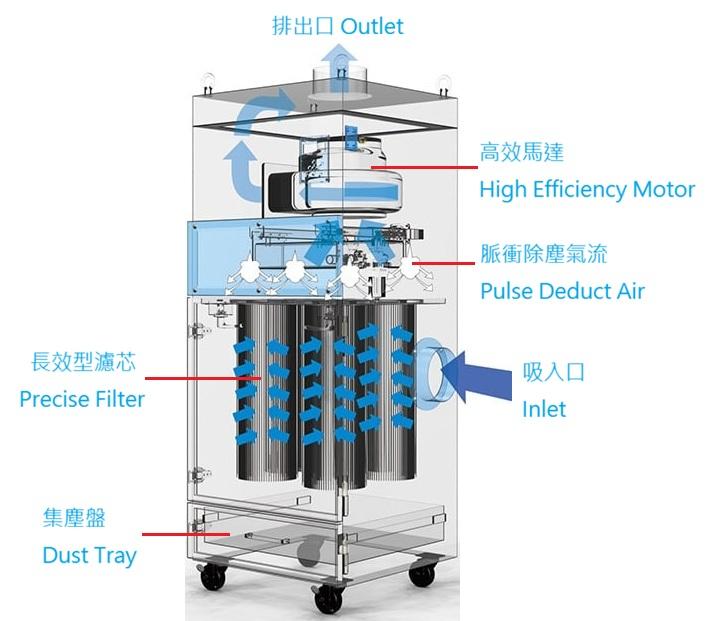

CHIKO® CMP series intelligent dust collectors are specially designed with an air pulse backwash device, which can greatly increase the service life of the filter element. They are most suitable for occasions where a large amount of dust is generated, such as PCB segmentation, hole drilling, resin cutting. The dust can be collected in a drawer-type dust box, making it easier to clean up. The main filter layer is a PTFE membrane element with excellent filtration efficiency and large filtration area. For clean room application, a HEPA filter with absolute filtration efficiency (0.3μm@99.97%) can be installed to correspond to Class 1,000~100.
Specification
．CMP series
| Item |
CMP-750AT3N | CMP-1500AT3N | CMP-2500AT3-A |
| Power | 1000W | 1500W | 2800W |
| Rated currency | 6.5A | 9.3A | 16.0A |
| Max. air flow | 17.5m3/min | 27.5m3/min | 30.3m3/min |
| Max. static pressure | 5.0kPa | 5.0kPa | 5.5kPa |
| Noise | 57~68dB | 57~68dB | 65~69dB |
| Suction port | ø125mm | ø150mm | ø150mm |
| Size (D*W*H) | 580*581*1265mm | 580*581*1465mm | 588*627*1459mm |
| Weight | 125kgs | 133kgs | 135kgs |
| Voltage | 200V 3-phase | 200V 3-phase | 200-230V 3-phase |
| Pulse air pressure | 0.4~0.5Mpa | 0.4~0.5Mpa | 0.4~0.5Mpa |
| Air consumption | 17 lpm (ø8mm) | 17 lpm (ø8mm) | 17 lpm (ø8mm) |
| AI smart panel | ○ | ○ | ○ |
| Output signal | ○ | ○ | ○ |
| Main filter | CS-175-300-63P-R*4pcs | CS-175-500-63P-R*4pcs | CS-170-500-63P-R*4pcs |
| Filter for inverter | PS300N non-woven filter | PS300N non-woven filter | CHF-3517-30 |
| Dust box | 20L (optional anti-static bag DP-1055-450E) | 20L (optional anti-static bag DP-1055-450E) | 14L |
* When the inverter cooling filter is upgraded and a HEPA filter is added to the exhaust outlet, this series of models can be compatible with clean rooms Class 1000~100.
* CMP-2500AT3-A has passed the US NRTL certification, the product is safe and meets electrical installation requirements.
* Please contact us for more information.
Advantage
• PTFE microporous membrane filter element with ultra-large filtration area, high filtration efficiency and long service life.
• Automatic air pulse backwashing to extend the service life of filter element.
• Equipped with a high-efficiency PM motor, which is just 1/2 size of commercially available 3-phase induction motors.
• The specially designed drawer-type dust box can suppress dust scattering when opened, making it easy to clean.
• The dust box can also be lined with anti-static plastic bags (sold separately) to make recycling easier.
• All dust collection chambers have windows to observe the dust collection status. (Wipers can be installed as an option)
• Equipped with the AI operation panel. (Diagnosis, protection, communication, data and IoT)
• Standard remote control terminal, which can output signals or connect with related machines.
