Brief

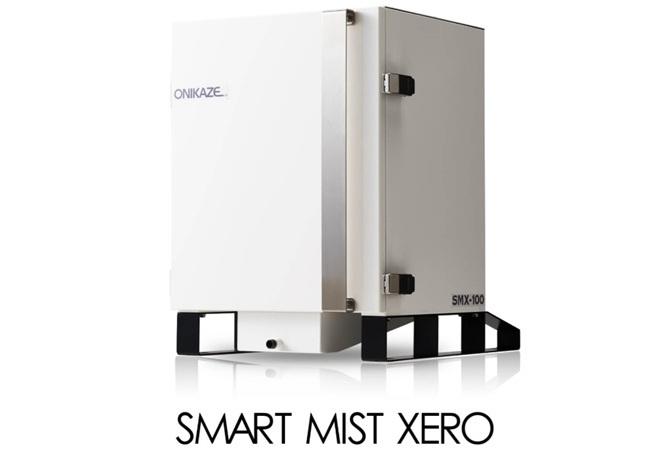

Smart Mist Zero – Oil Mist Collector, the latest flagship model from Akamatsu Electric. Equipped with the newly developed “Rotary Magic” mechanism, it combines high collection performance with a maintenance-free design, achieving 99% collection efficiency for particles ≥1µm, while reducing suction loss to virtually “zero.” A backwash piping system is included as standard, bringing the unit even closer to true maintenance-free operation.
Feature
1. Simultaneous Collection and Self-cleaning

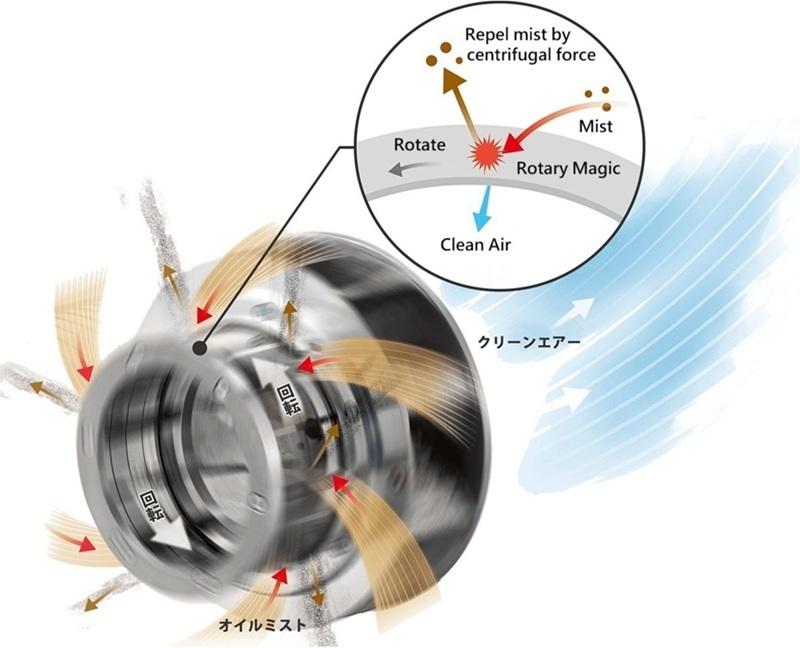

By using centrifugal force to repel adhered mist and achieve a self-cleaning effect, ensuring sustained high power collection performance over time.
2. Toward Virtually Maintenance-Free Operation
Equipped with a backwash piping system for cleaning, even if collection performance declines, the Rotary Magic can be cleaned with compressed air without opening the main unit, keeping it in a clean state at all times. (supply air required).
*An optional timer-controlled Backwash Unit is more efficient.
3. One-Access Maintenance
By simply opening the front door, minimizes the time and effort required for maintenance.
This minimizes maintenance time and labor, contributing to manpower reduction.

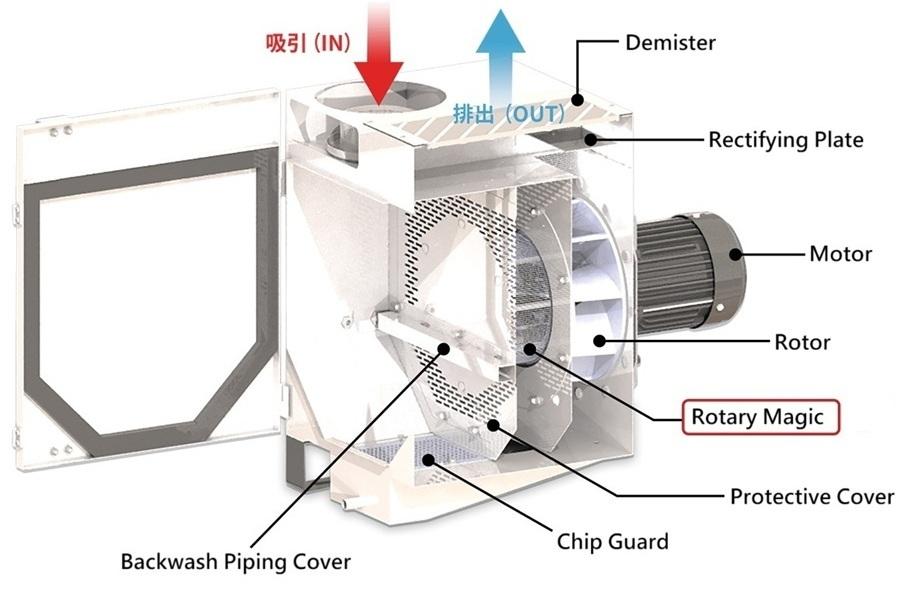

．Structure
．Specification
| Type | SGM-40R | SMG-100R | SMG-150R |
| Power | AC200/220V 3φ 50/60Hz | AC200/220/230V 3φ 50/60Hz | AC200/220/230V 3φ 50/60Hz |
| Motor | 0.4kW 2Pole | 0.75kW 2Pole | 1.5kW 2Pole |
| Max. Air Flow (m3/min) | 4.7/5.7 | 7.7/9.3 | 13/15.3 |
| Max. Static Pressure (Pa) | 487/743 | 602/895 | 975/1379 |
| Noise (dB) | 69/72 | 71/75 | 72/76 |
| Collecting efficiency | 99% (≥1µm) | 99% (≥1µm) | 99% (≥1µm) |
| Suction caliber (mm) | Ø98 | Ø123 | Ø148 |
| Dimension(W*D*H) (mm) | 443×613×588 | 493×685×638 | 593×823×738 |
| Weight (kg) | 42 | 55 | 77 |
* Power supply details, please contact dealers.
* The maximum intake air temperature is 75°C, but the temperature around motor must be below 40°C.
* All models are RoHS compliant.
．Why Onikaze
．Optional Accessory

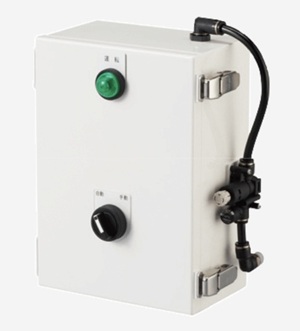

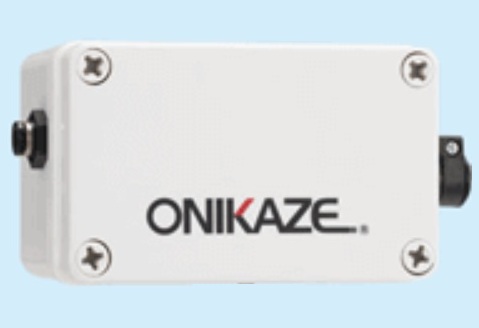

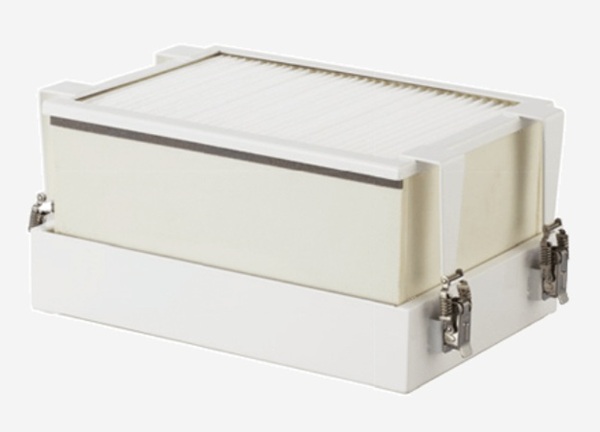

| Backwash Unit | Clogging Sensor Unit | FU Box |
 |  |  |
| *Automation backwash *Timer-control, periodic cleaning | *Visualization for clogging status *Eliminates on-site checks or inspections | *Capture of fine particles and oil mist *The efficiency at 99.93% (≥0.3µm) |
