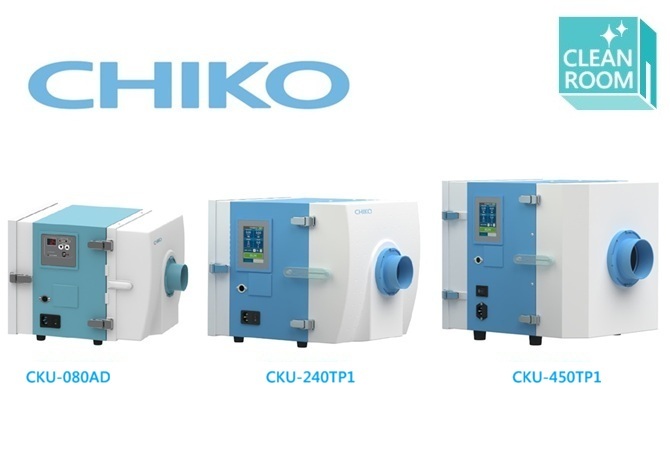

Compact Dust Extractor

Under the space of A4 paper
You can install and use it

Model
- CKU-080AT3-HC
- CKU-240AT3-HC
- CKU-450AT3-HC

This combination does not exist.

Feature

CKU dust collector has very compact size, can be installed in limited space as A4 paper. Equipped with multi-layer filter bag as prefilter, high capacity and easy changeout. Main filter has 98% high efficiency for 0.3μm particles. If upgraded to HEPA filter, efficiency will exceed 99.97%, availabe in cleanroom Class1000~100. CKU series - compact size with high micro dust collecting capacity. Japanese technology - CHIKO^® dust collector, the most economic and professional choice.

Specification

．CKU series

Item	CKU-080AT3-HC	CKU-240AT3-HC	CKU-450AT3-HC
Power	50W	250W	500W
Rated currency	2.4A	5.3A	9.8A
Air flow	2.9m³/min	4.6m³/min	7.0m³/min
Static pressure	2.5kPa	2.4kPa	2.9kPa
Noise	54~58dB	52~60dB	57~65dB
Suction port	ø65mm (ø50•ø38)	ø75mm (ø65•ø50•ø38)	ø100mm
*Size (DWH)*	385290276mm	422340328mm	483400399mm
Weight	10.3kgs	16.4kgs	29.0kgs
Power	110V (or 220V, CE)	110V (or 220V, CE)	110V (or 220V, CE)
AI control panel	○	○	○
Output signal	○	○	○
Filter(1)	FB-25	FB-30	FB-700-22
Filter(2)	CHF-2525-50	CHF-3030-50	CHF-3035-50
Filter(3)	CHF-2525-50	CHF-3030-69	HEP-3035-69

* The above models are suitable for general environments or clean rooms of Class 100,000~10,000.
* The specifications and materials of filter(2) and filter(3) of the standard model are the same.
* When HEPA is selected as the filter(3), it can correspond to clean room Class 1000~100.
* When equipped with a HEPA filter, add V1 after the model number, such as CKU-080AT3-HC-V1 to distinguish it.

Information

Top selling in Japan
Based on the survey results conducted by Japanese market research organization JMR from May 1, 2017 to April 1, 2020.

Quick-change suction port (ø38, ø50, ø65, ø75mm) and remote control terminal


Quick-change Suction port (Convenient for replacing suction sizes)	Signal output terminal - for remote (pressure/airflow/power adjustment...)
