Damage and effects of "Oil Mist"
Oil mist is a type of hazardous substance that negatively impacts both human health and the environment.
The challenge with oil mist is that it is invisible to the naked eye while causing significant harm. If left unmanaged, oil mist can lead to health issues affecting workers’ skin and respiratory systems. Additionally, accumulated oil mist can cause slip hazards and lead to failures in electronic and HVAC equipment.
| ⊙ Achieving an Optimal Factory Environment Through Proper Installation |
The adoption rate of oil mist collectors has increased significantly in recent years, especially in CNC, milling, grinding machines, lathes, cleaning equipment, and high-speed cutting. Overall, it has gradually shifted from being an "optional equipment" to becoming "standard equipment" on many production lines. However, choosing the wrong model or using incorrect installation methods can prevent oil mist collectors from achieving their intended effects.
⊙ Three Installation Methods for Oil Mist Collectors
| Installation | Direct Mount System | Partial Ventilation System | General Air Collection System |
| Suited | For enclosed machines | For non-enclosed machines | Covers a wide area for mist collection |
| Advantage | Achieves the highest collection efficiency | Flexible for layout changes | Can be combined with other methods |
| Equipment | Multi-tasking machines, machining centers, and CNC lathes | Grinders and similar equipment | Ideal for improving overall factory air quality |
| ⊙ Choosing the Right Installation Method Minimizes Operational Risks |
✽ Helps reduce unnecessary exhaust and energy costs
✽ Reduces health risks and improves employee retention
✽ Enables environmentally sustainable operations
✽ Meets ISO14001, ISO45001 regulations
| ⊙ Selecting the Right Models |
The "ONIKAZE Mist Collector" series offers 3 comprehensive product lines tailored to various machining conditions and installation methods.
| Design Concept | Prioritizes maximum cleanliness | Reduces power consumption & ECO | Maintenance-free design |
| Brand |  |  |  |

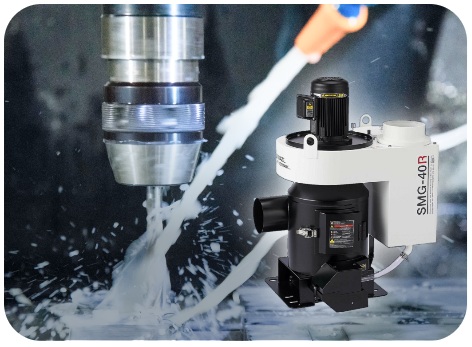

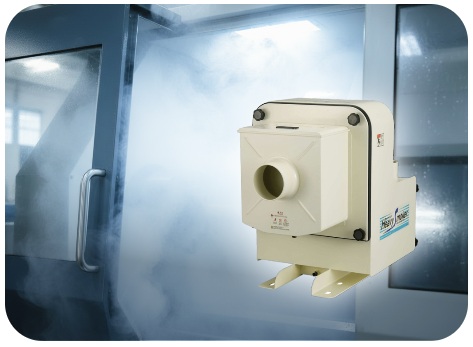

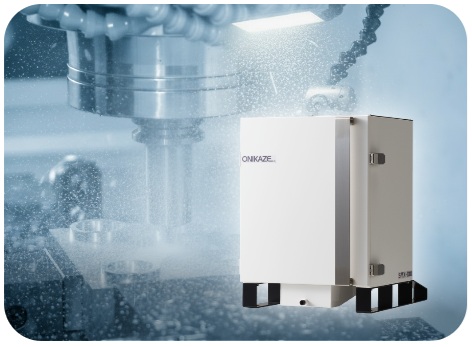

| Code | HVS | SMG | SMX |
| Photo |  |  |  |
| Advantage | Designed for various oil mist or fume | Energy-efficient and CO₂ reduction | Reduced maintenance workload |
| Cutting Fluid | Compatible with both oil-based and water-soluble cutting fluids | Primarily for water-soluble fluids (optional support for oil-based fluids) | Primarily for water-soluble fluids (optional support for oil-based fluids) |
| Particle Size | 0.3 µm and above (fume, mist) | 2.0 µm and above (visible mist) | 1.0 µm and above (visible mist) |
| Application | Lathes, machining centers, polishing, EDM, heat treatment, cleaning processes | Machining (lathes, machining centers), grinding, cleaning processes | Machining (lathes, machining centers), grinding, cleaning processes |
| ⊙ Applications |
We offer extensive expertise and oil mist collection technologies tailored to the needs of various industries and applications.
| Automotive Parts Industry | Metal Processing Industry | Precision Machining Industry | Semiconductor Industry |
 |  |  |  |
| ⊙ Total Solutions for Oil Mist |
✽ You can check more info about ONIKAZE product details, or you can Contact us through the inquiry anytime.
