ultrafilter®壓縮空氣過濾器
⊙ 智慧型 - 壓縮空氣過濾器 |

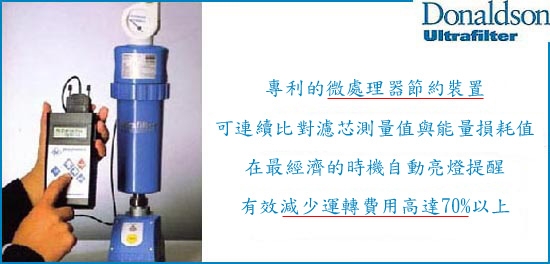

◆ 流量範圍: 5~23000m3/h @ 7 bar ◆ 模組化設計系統,包含: 微處理器節約裝置(economizer)、電子式液位自動排水系統(autodrain)、高性能濾芯,組裝容易,可自由搭配。 ◆ 特殊空器分流裝置,高流量、低壓降。 ◆ 雙O-ring設計壓縮空氣完全密封不外洩。 |
⊙ 規格介紹
Type | Nominal m3/h | Max. m3/h | Connection | Size | Qty |
0002 | 20 | 40 | G 1/4 | 02/05 | 1 |
0004 | 40 | 60 | G 3/8 | 03/05 | 1 |
0006 | 60 | 90 | G 3/8 | 03/10 | 1 |
0009 | 90 | 120 | G 1/2 | 04/10 | 1 |
0012 | 120 | 180 | G 1/2 | 04/20 | 1 |
0018 | 180 | 270 | G 3/4 | 05/20 | 1 |
0027 | 270 | 360 | G 1 | 05/25 | 1 |
0036 | 360 | 480 | G 1 1/4 | 07/25 | 1 |
0048 | 480 | 720 | G 1 1/2 | 07/30 | 1 |
0072 | 720 | 1080 | G 2 | 10/30 | 1 |
0108 | 1080 | 1440 | G 2 | 10/30 | 1 |
0144 | 1440 | 1920 | G 2 1/2 | 20/30 | 1 |
0192 | 1920 | 2880 | G 3 | 30/30 | 1 |
0288 | 2880 | 4320 | G 3 | 30/50 | 1 |
0108 | 1080 | 1440 | DN50 | 15/30 | 1 |
0144 | 1440 | 1920 | DN65 | 20/30 | 1 |
0192 | 1920 | 2880 | DN80 | 30/30 | 1 |
0288 | 2880 | 4320 | DN80 | 30/50 | 1 |
0432 | 4320 | 5760 | DN100 | 20/30 | 1 |
0576 | 5760 | 7680 | DN100 | 30/30 | 3 |
0768 | 7680 | 11520 | DN150 | 30/30 | 4 |
1152 | 11520 | 15360 | DN150 | 30/30 | 6 |
1536 | 15360 | 19200 | DN200 | 30/30 | 8 |
1920 | 19200 | 23040 | DN200 | 30/30 | 10 |
2304 | 23040 | 30720 | DN250 | 30/30 | 12 |
3072 | 30720 | 38400 | DN250 | 30/30 | 16 |
3840 | 38400 | 51072 | DN300 | 30/30 | 20 |
⊙ ISO8573.1 壓縮空氣標準
Quality Class | Particle size | Pressure Dew point | Oil content | Recommend dryer |
1 | 0.1um | -70℃ | 0.01 Mg/m3 | Desiccant |
2 | 1um | -40℃ | 0.1 Mg/m3 | Desiccant or membrane |
3 | 5um | -20℃ | 1 Mg/m3 | Desiccant or membrane |
4 | 15um | +3℃ | 5 Mg/m3 | Refrigerated or membrane |
5 | 40um | +7℃ | 25 Mg/m3 | High inlet temp. dryer |
6 | - | +10℃ | - | High inlet temp. dryer |
⊙ 建議品質等級 (by VDMA)
NACE code | Industry Branch | Application | Particles | Water | Oil | Sterile |
16.00.00 | tobacco processing | air control | 1 | 2 | 1 | |
17.00.00 | textile branch | air control | 1 | 2 | 1 | |
output air | 1 | 2 | 0 | |||
21.00.00 | paper branch | air control | 1 | 2 | 1 | |
output air | 1 | 2 | 0 | |||
instrument air | 1 | 1 | 0 | |||
24.40.00 | pharmaceutical industry | air control | 1 | 2 | 1 | |
output air | 1 | 2 | 0 | yes | ||
conveyer air | 1 | 2 | 0 | |||
sterile superposition | 1 | 2 | 0 | yes | ||
31.00.00 | electro technic, electronics | air control | 1 | 2 | 1 | |
chip manufacture-blow air, instrument air | 1 | 1 | 0 | |||
data panel manufacture, blow air, instrument air | 1 | 2 | 0 | |||
CD-manufacture | 1 | 1 | 0 | |||
34.00.00 | vehicles | air control | 1 | 2 | 1 | |
surface coating | 1 | 2 | 0 | |||
tire air | 1 | 2 | 1 |

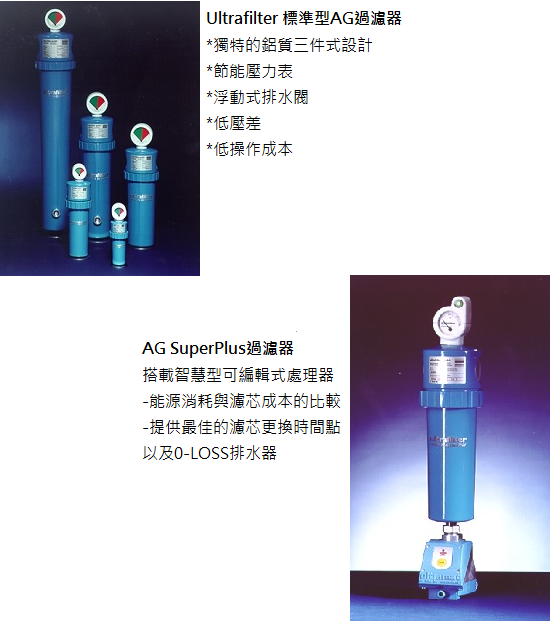

⊙ Ultrafilter® 高效過濾器
